Last Updated: October 1, 2026
MikroTik CCR2216-1G-12XS-2XQ Verdict: Who This Router Is Built For
The CCR2216-1G-12XS-2XQ is MikroTik's flagship core router: two 100 Gigabit QSFP28 cages, twelve 25 Gigabit SFP28 slots, and one Gigabit Ethernet port on a 16-core CPU with Layer 3 hardware offloading. For ISPs and WISPs pushing aggregated backhaul at the edge of a rural buildout, it's the drop-in replacement the CCR1072 never quite became.
CCR2216-1G-12XS-2XQ Specs and Hardware Overview

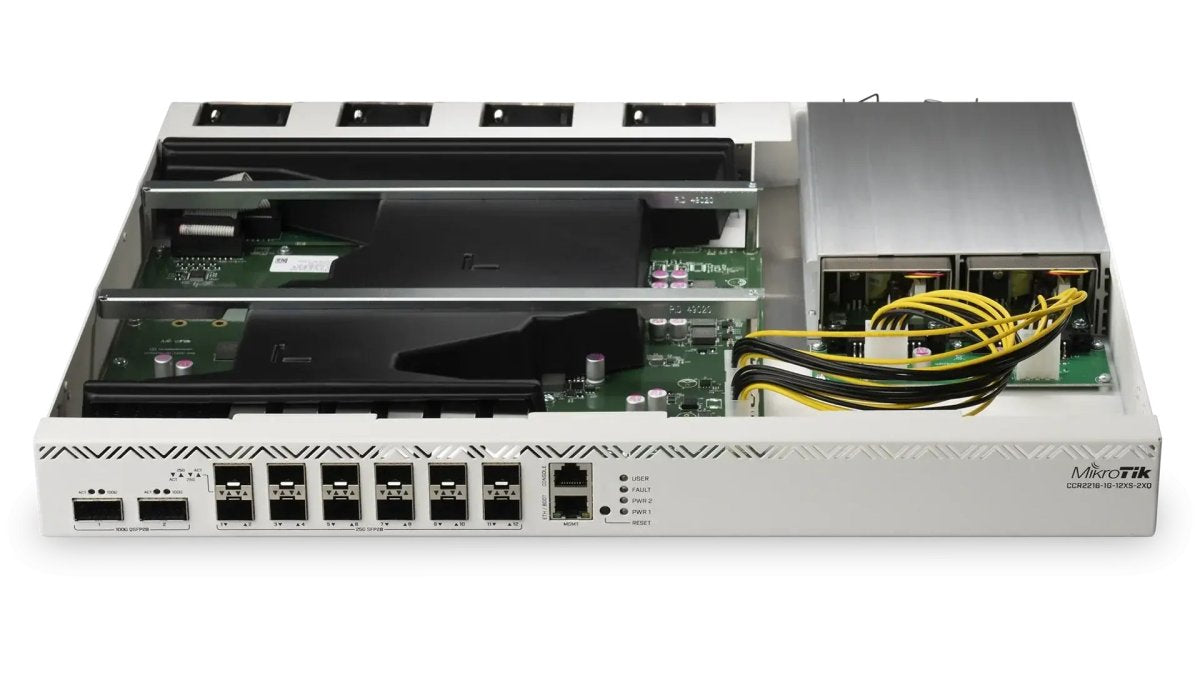

The CCR2216-1G-12XS-2XQ is a rackmount core router built around MikroTik's 16-core AL32400 CPU on a Tile architecture, with 16 GB of RAM and 128 MB of NAND storage, a different class from the CCR2004 and CCR2116, which run fewer cores and fewer high-speed interfaces.
CPU, Memory and Storage
Sixteen cores at 2 GHz sounds generous until you push full-table BGP with traffic shaping on top. The AL32400 forwards IPv4 and IPv6 in hardware when L3 hardware offloading is enabled, freeing the CPU for routing protocols. The 16 GB of RAM is enough for full BGP tables plus firewall state in most regional ISP deployments.
Port Layout: 100G, 25G and 1G Interfaces
Port density is the headline feature: two QSFP28 cages at 100 Gigabit Ethernet for uplinks or inter-POP links, twelve SFP28 slots at 25 Gigabit that accept 10G or 1G modules, and one 1G RJ45 for management.
| Interface | Count | Speed | Typical Role |
|---|---|---|---|
| QSFP28 | 2 | 100G | Core uplink, inter-POP |
| SFP28 | 12 | 25G / 10G / 1G | Distribution, aggregation |
| RJ45 | 1 | 1G | Management, out-of-band |
Throughput and L3 Hardware Offloading in Practice
L3 hardware offloading separates this router from its predecessors, and it's the feature most buyers misunderstand. With offloading enabled, the switch chip forwards IPv4 and IPv6 packets between interfaces without touching the CPU. Turn it off, or route traffic the chip can't handle, and every packet lands on the 16-core AL32400.
How to Benchmark This Router Yourself
Most published numbers for the CCR2216-1G-12XS-2XQ come from spec sheets, not a rack. To get figures that reflect your own traffic, build a test that mirrors production. A common ISP pattern:
- Two traffic generators (servers running
iperf3or a hardware tester) connected to the 100G QSFP28 ports through a known-good DAC or qualified optic. - A third host on a 25G SFP28 port running a routing protocol (BGP or OSPF) with the router, so the control plane is exercised alongside the data plane.
- A WireGuard tunnel between the two 100G hosts, with
iperf3pushed through the tunnel, to measure how the CPU handles encryption that the switch chip cannot offload. - A BGP full-table feed (from a route server or a lab peer) advertised into the router, with traffic flowing across the offloaded path, to confirm that the forwarding plane stays in hardware while the CPU maintains the RIB.
What Changes When You Add Encryption or NAT
L3 hardware offloading covers IPv4 and IPv6 forwarding, not WireGuard, IPsec, NAT, or connection tracking. Those workloads land on the AL32400, and the 16 cores keep them from collapsing. A WireGuard tunnel between two 100G ports won't hit line rate, but it scales across cores far better than a CCR1072 could, because the offloaded forwarding path frees cycles for crypto.
Reading the Results
A useful benchmark answers three questions: maximum offloaded throughput, throughput once you add the features you actually use, and where latency starts to climb. If production traffic is mostly routed and offloaded, the first number matters. If you run WireGuard or heavy NAT, the second is your real ceiling, and the third tells you when to add a second router rather than push this one harder.
MikroTik Router Configuration Best Practices for the CCR2216
MikroTik router configuration best practices on this platform start with one decision: what runs on the CPU and what runs on the switch chip. Get that wrong and you've bought a 16-core router to do a switch's job. These steps assume RouterOS 7.x on a factory-default CCR2216-1G-12XS-2XQ.
Step 1: Firmware and License
Update RouterOS to the current stable release before production deployment and read the changelog for offloading fixes. An L6 license is included, so no separate purchase is needed. Confirm the level with /system/license/print before building the config.
Step 2: Enable L3 Hardware Offloading Per Interface
Offloading is not a global switch. Enable it on the interfaces that carry routed traffic, and verify the result rather than assuming it took effect.
- Check current offload state:
/interface/ethernet/switch/print - Enable L3HW on the switch:
/interface/ethernet/switch/set 0 l3-hw-offloading=yes - Confirm per-port status:
/interface/ethernet/printand look at thel3-hw-offloadingcolumn
Step 3: Keep the Fast Path Clean
The switch chip forwards simple routed traffic, not traffic that hits mangle rules, complex queue trees, or policy routing. Design so the traffic you care about stays on the fast path:
- Keep firewall filter rules on the input chain minimal; use raw rules where possible.
- Move connection tracking off interfaces that don't need NAT.
- Avoid mangle rules on the 100G and 25G interfaces unless you have measured the throughput cost.
- Set interface queues deliberately; default queues add latency under load.
Step 4: Routing Protocols on the CPU, Forwarding in Hardware
Run BGP and OSPF on the CPU, but keep forwarding in hardware, the normal split on CCR-class routers, where the control plane lives on the AL32400 and the data plane on the switch chip. A full BGP table plus OSPF adjacencies fits well within 16 GB of RAM, and the CPU has cycles to spare once offloaded forwarding does the heavy lifting.
Step 5: Storage and Logging
128 MB of NAND fills quickly with verbose logging or containers. Add an M.2 SATA drive for logging and container storage, and keep the NAND for RouterOS and a small config backup.
Step 6: Validate Before Cutover
Before you put the router in front of customers, run a short validation pass:
- Confirm offload status per interface with
/interface/ethernet/print. - Push a known traffic pattern across the 100G and 25G ports and watch CPU load with
/system/resource/monitor. - Verify BGP and OSPF adjacencies come up and stay up under load.
- Check that a single power feed failure leaves the unit running on the redundant supply.
Power, Cooling and Long-Term Thermal Stability
Power and thermal management decide whether a core router survives a hot equipment room in August. The CCR2216 uses active cooling with front-to-back airflow and expects a properly ventilated rack; populated with twelve 25G optics and two 100G modules, heat output rises sharply.
ISP Network Infrastructure Planning Around a 100G Core
ISP network infrastructure planning changes when your core runs 100G: the bottleneck moves from the router to the distribution layer, the fiber plant, and your monitoring.
Three planning rules that hold up in practice:
- Match uplink capacity to peak aggregate demand, not average
- Keep BGP and OSPF adjacencies on dedicated links where possible
- Design dual-ISP failover at the routing layer, with LTE or wireless backup on a separate interface
Pros, Cons and the CCR2116 Comparison
The CCR2216-1G-12XS-2XQ wins on port density and offloading, but the CCR2116 covers most deployments that don't need 100G.
Pros:
- Two 100G QSFP28 and twelve 25G SFP28 ports in one rack unit
- 16-core CPU with L3 hardware offloading
- Redundant power supply and dual M.2 SATA slots
- L6 license included, so full RouterOS feature set
- Drop-in replacement for CCR1072 deployments
Cons:
- Costs more than the CCR2116, which suits most sub-100G networks
- 128 MB NAND is tight without added M.2 storage
- Thermal load demands proper rack ventilation
- Real throughput depends entirely on correct offloading configuration
| Feature | CCR2216-1G-12XS-2XQ | CCR2116 |
|---|---|---|
| 100G ports | 2 QSFP28 | None |
| 25G ports | 12 SFP28 | 12 SFP28 |
| CPU cores | 16 | 16 |
| L3 hardware offloading | Yes | Yes |
| Best for | 100G core aggregation | 10G/25G distribution |
Conclusion: Is the CCR2216-1G-12XS-2XQ Worth It?
The CCR2216-1G-12XS-2XQ is worth it if your network already pushes past 10G at the core, or will within two years. The 100G QSFP28 cages and L3 hardware offloading give headroom the CCR2116 can't match, and the 16-core CPU handles full BGP tables without strain.
Frequently Asked Questions
What are the key performance specifications of the CCR2216-1G-12XS-2XQ?
The CCR2216-1G-12XS-2XQ runs a 16-core CPU on a Tile architecture with 16 GB of RAM and 128 MB of NAND storage, plus two M.2 SATA slots for added storage. It carries twelve 25 Gigabit SFP28 ports, two QSFP28 cages for 100 Gigabit Ethernet, and one Gigabit Ethernet port. L3 hardware offloading moves routing work off the CPU, which is what lets this unit push 100G traffic without choking on packet forwarding.
How does the CCR2216-1G-12XS-2XQ handle 100Gbps traffic?
It handles 100G traffic through its two QSFP28 cages combined with L3 hardware offloading. Rather than sending every packet through the 16-core CPU, the switch chip performs Layer 3 routing in hardware, keeping throughput high and latency low. For ISPs running BGP or OSPF at the core, this matters: full-table routing stays fast because the CPU is free for control-plane work instead of forwarding.
How does the CCR2216-1G-12XS-2XQ compare to the CCR2116 series?
The CCR2116 series tops out at 25G interfaces and lacks 100G QSFP28 cages, so it cannot serve as a 100G aggregation point. The CCR2216 adds two 100 Gigabit ports, more 25G SFP28 interfaces, and the same L3 hardware offloading approach. MikroTik positions the CCR2216 as a drop-in upgrade for existing CCR1072 setups that have run out of headroom. If your uplinks are still 10G or 25G, the CCR2116 remains the cheaper fit.
What cooling and power redundancy does the CCR2216-1G-12XS-2XQ offer?
The unit ships with a redundant power supply, so a single PSU failure does not take the router offline. Active cooling handles thermal management, and the airflow design is built for rack environments where the router runs at high load continuously. For ISP network infrastructure planning, that redundancy is the difference between a scheduled swap and an outage. Keep the rack intake clear and monitor temperatures after firmware updates.
What are the main use cases for the CCR2216-1G-12XS-2XQ in ISP environments?
It fits three roles: core aggregation where multiple 25G links feed into 100G uplinks, BGP edge routing for regional ISPs, and high-capacity CPE aggregation for rural broadband builds. The 100 Gigabit Ethernet capacity means it can serve as a long-term core without a forklift upgrade when subscriber counts grow.
