Wi-Fi where it matters
The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!
Specification
Specifications
- Product codeCRS418-8P-8G-2S+5axQ2axQ-RM
- Suggested price$499.00
- ArchitectureARM 64bit
- CPUIPQ-8072A
- CPU core count4
- CPU nominal frequency2208 MHz
- CPU Threads count4
- Switch chip model98DX226S
- RouterOS license5
- Operating SystemRouterOS v7
- Size of RAM1 GB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-20°C to 70°C
Powering
- Number of AC inputs2
- AC input range100-240
- Number of PSU slots2
- Frequency (Hz)50-60
- Max power consumption227 W
- Max power consumption without attachments43 W
- Cooling type4 fans
PoE-out
- PoE-out portsEther9-Ether16
- PoE out802.3af/at
- Low voltage PoE-Out current limit1.1 A
- High voltage PoE-Out current limit0.56 A
- Total output power150
Wireless specifications
- Wireless 2.4 GHz Max data rate1148 Mbit/s
- Wireless 2.4 GHz Number of chains4
- Wireless 2.4 GHz standards802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz5
- Wireless 2.4 GHz chip modelQCN-5024
- Wireless 2.4 GHz generationWi-Fi 6
- Wireless 5 GHz Max data rate2400 Mbit/s
- Wireless 5 GHz Number of chains4
- Wireless 5 GHz standards802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz6
- Wireless 5 GHz chip modelQCN-5054
- Wireless 5 GHz generationWi-Fi 6
Ethernet
- 10/100/1000 Ethernet ports17
- Number of 1G Ethernet ports with PoE-out8
Fiber
- SFP+ ports2
Peripherals
- Serial console portRJ45
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB 3.0 type A
- Max USB current (A)1
Other
- CPU temperature monitorYes
- Current MonitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
- Mode buttonYes
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IP20
Included partsIEC cordK-100 fastening setIEC cordNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

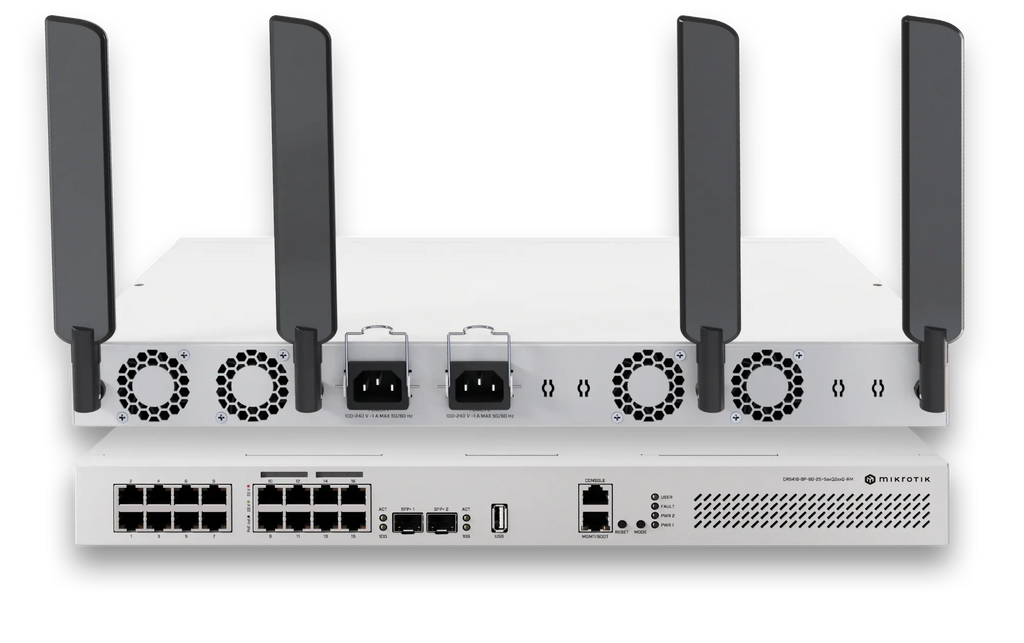

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.
