Specification
Specifications
- Product codeA42G-HbeP
- ArchitectureARM 32bit
- CPUAN7563PT
- CPU core count2
- CPU nominal frequency950 MHz
- CPU Threads count2
- Switch chip modelAN7563PT
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM512 MB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 100'000 hours at 25C
- Tested ambient temperature-40°C to 50°C

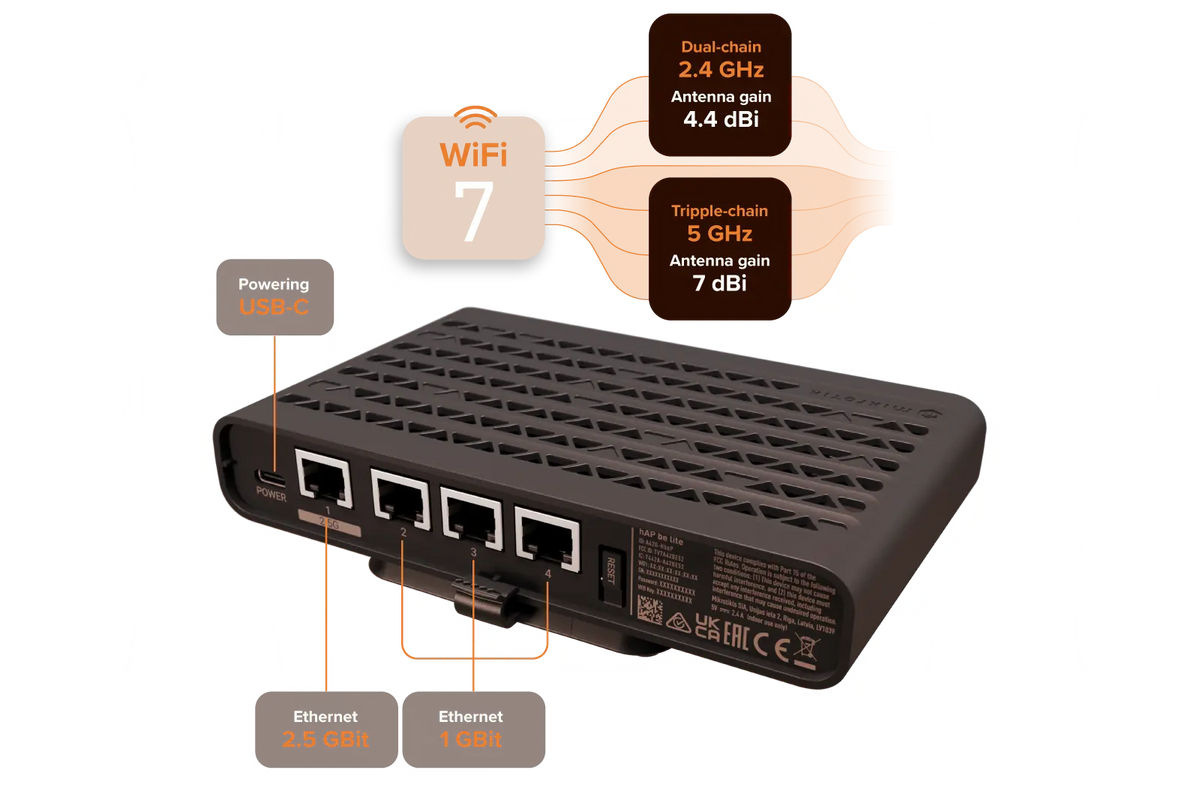

Wireless capabilities
- Wireless 2.4 GHz Max data rate688 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n/ax/be
- Antenna gain dBi for 2.4 GHz4.4
- Wireless 2.4 GHz chip modelMT7991
- Wireless 2.4 GHz generationWi-Fi 7
- Wireless 5 GHz Max data rate2882 Mbit/s
- Wireless 5 GHz Number of chains3
- Wireless 5 GHz standards802.11a/n/ac/ax/be
- Antenna gain dBi for 5 GHz7
- Wireless 5 GHz chip modelMT7991
- Wireless 5 GHz generationWi-Fi 7
- WiFi speedBE3600
Ethernet
- 10/100/1000 Ethernet ports3
- Number of 2.5G Ethernet ports1
Powering
- Number of DC inputs1 (USB-C)
- Max power consumption12 W
- Cooling typePassive
- USB C input Voltage5 V
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IP20
Other
- CPU temperature monitorYes
