- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specification
Specifications
- Product codeRBcAPGi-5acD2nD
- Suggested price$85.00
- ArchitectureARM 32bit
- CPUIPQ-4018
- CPU core count4
- CPU nominal frequency488-896 (auto) MHz
- CPU Threads count4
- Switch chip modelIPQ-4018
- DimensionsRound case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
- RouterOS license4
- Operating SystemRouterOS
- Size of RAM128 MB
- Storage size16 MB
- Storage typeFLASH
- MTBFApproximately 100'000 hours at 25C
- Tested ambient temperature-40°C to 50°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz2
- Wireless 2.4 GHz chip modelIPQ-4018
- Wireless 2.4 GHz generationWi-Fi 4
- Wireless 5 GHz Max data rate867 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac
- Antenna gain dBi for 5 GHz2.5
- Wireless 5 GHz chip modelIPQ-4018
- Wireless 5 GHz generationWi-Fi 5
- WiFi speedAC1200
Ethernet
- 10/100/1000 Ethernet ports2
Powering
- Number of DC inputs1 (PoE-IN)
- Max power consumption24 W
- Max power consumption without attachments12 W
- PoE in802.3af/at
- Cooling typePassive
- PoE in input Voltage17-57 V
PoE-out
- PoE-out portsEther2
- PoE outPassive PoE up to 57V
- Low voltage PoE-Out current limit500 mA
- High voltage PoE-Out current limit400 mA
- Max total out (A)500 mA
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IP20
Other
- Mode buttonYes

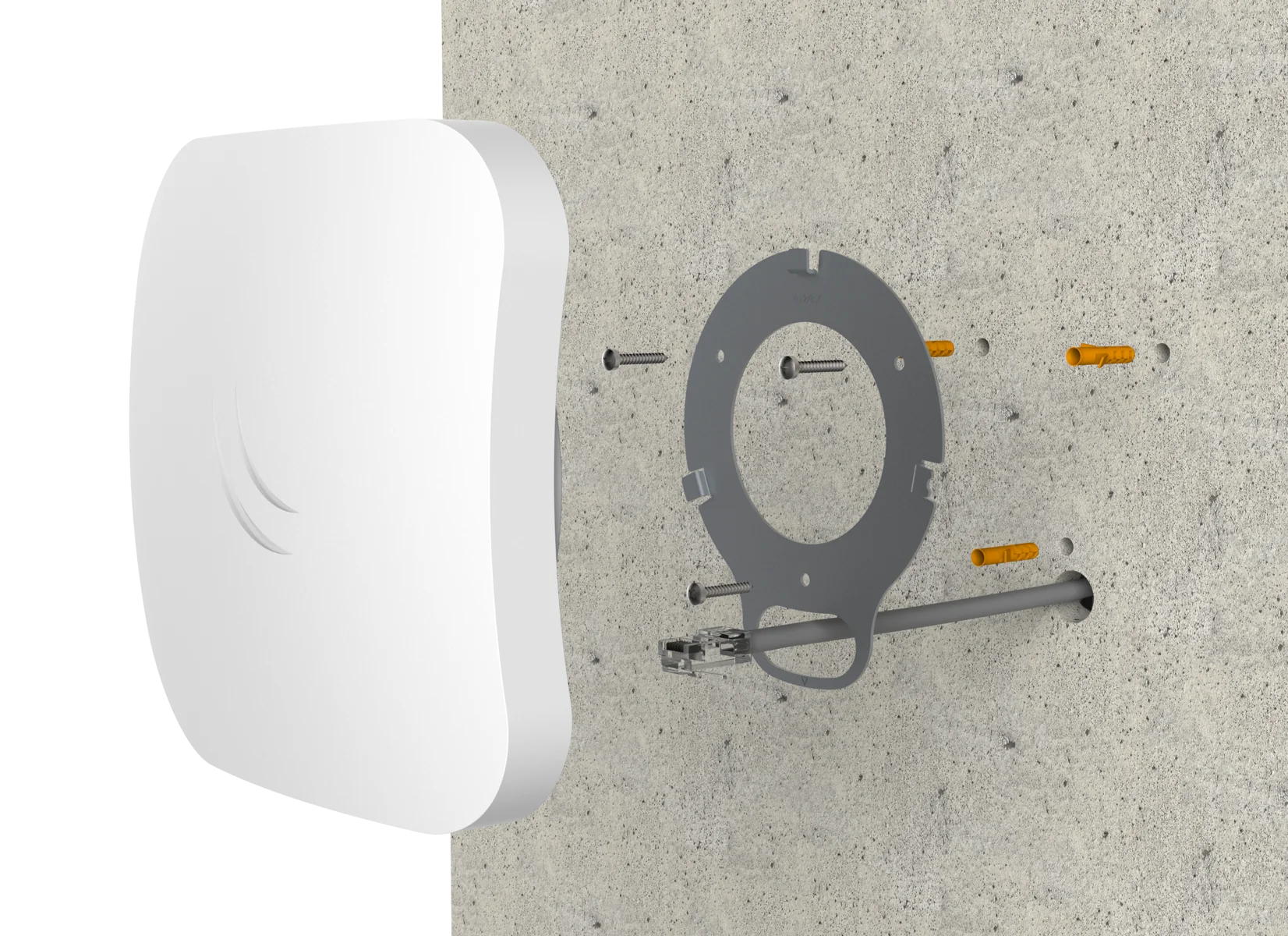

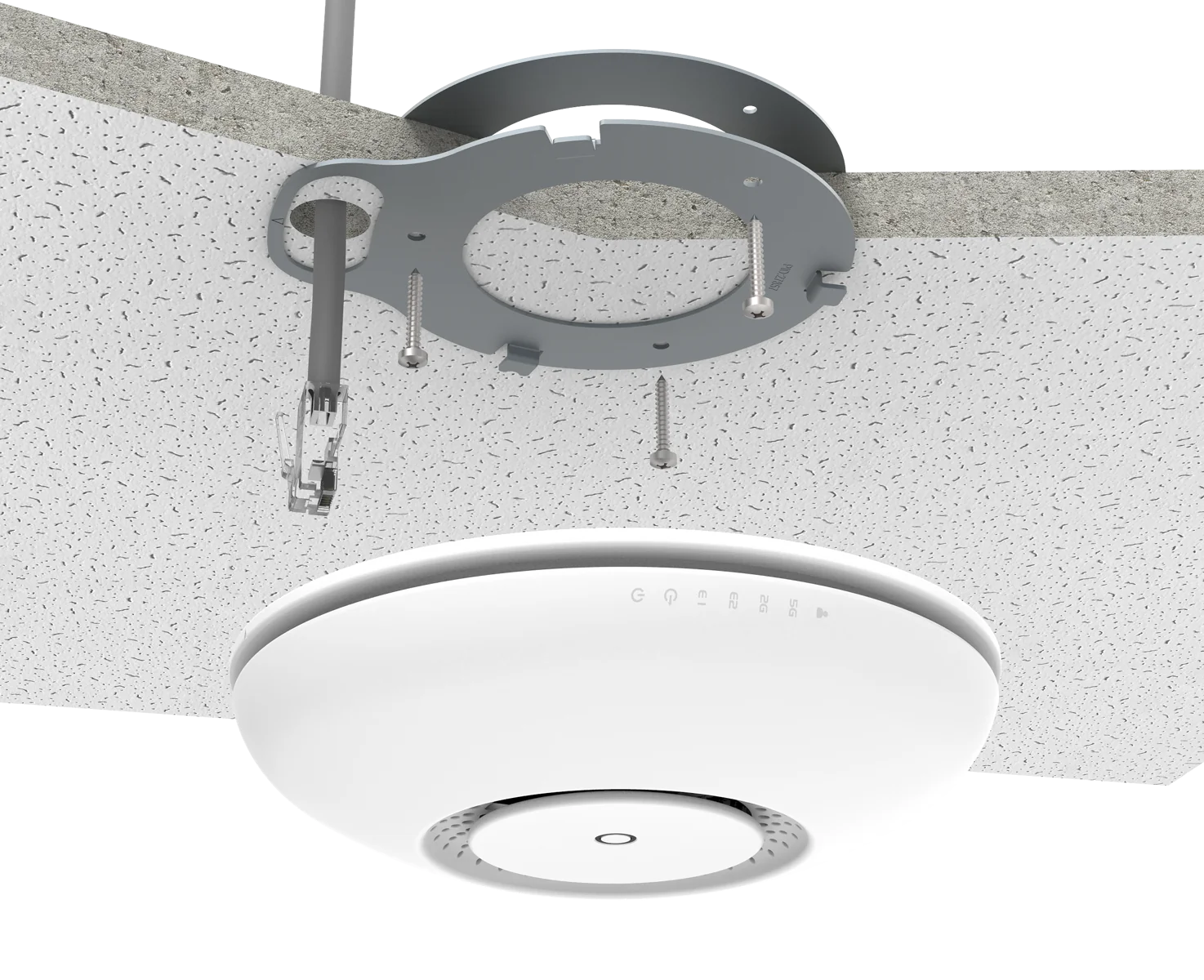

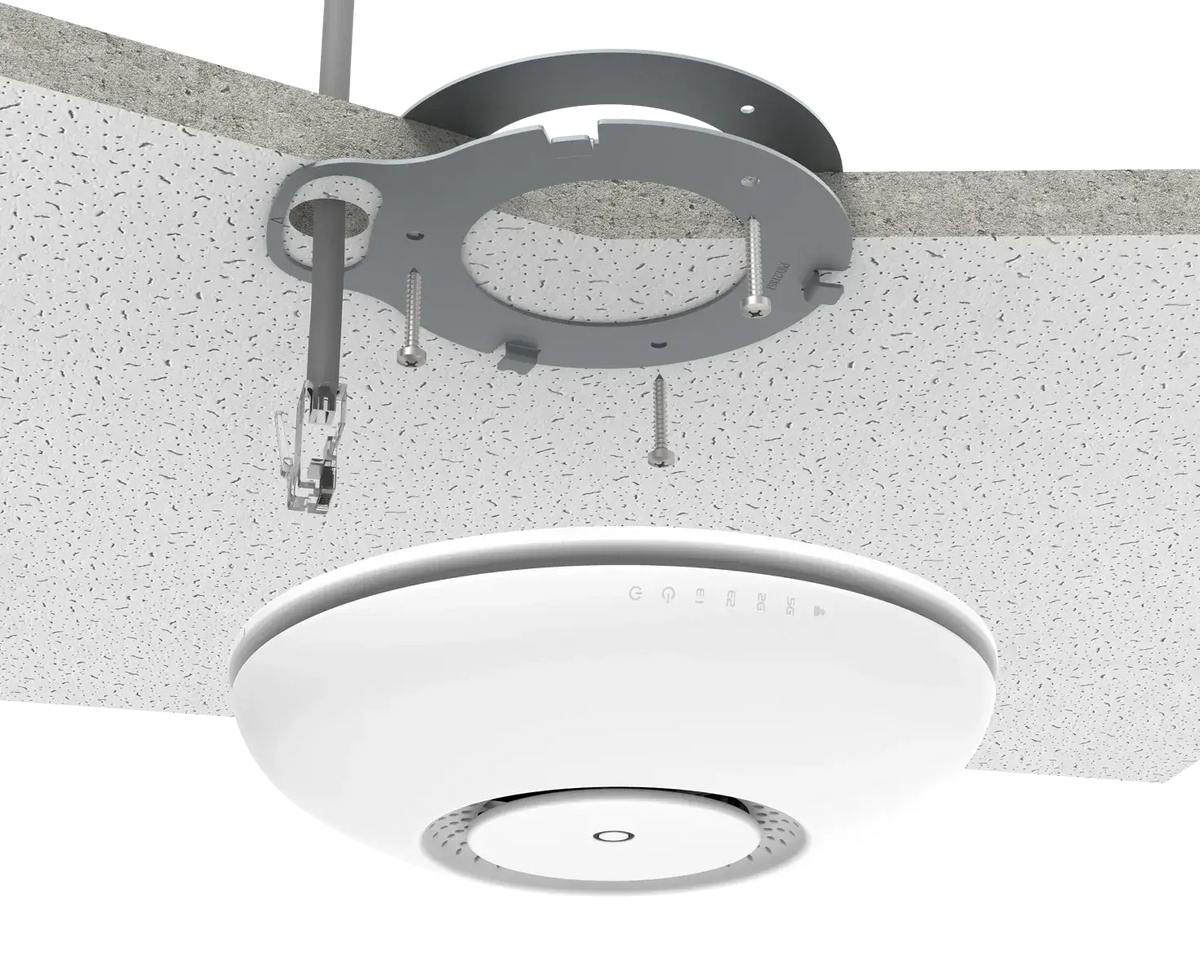

Included parts24V 1.2A power adapterCeiling mountGigabit PoE injectorK-46 screw kitNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
