The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

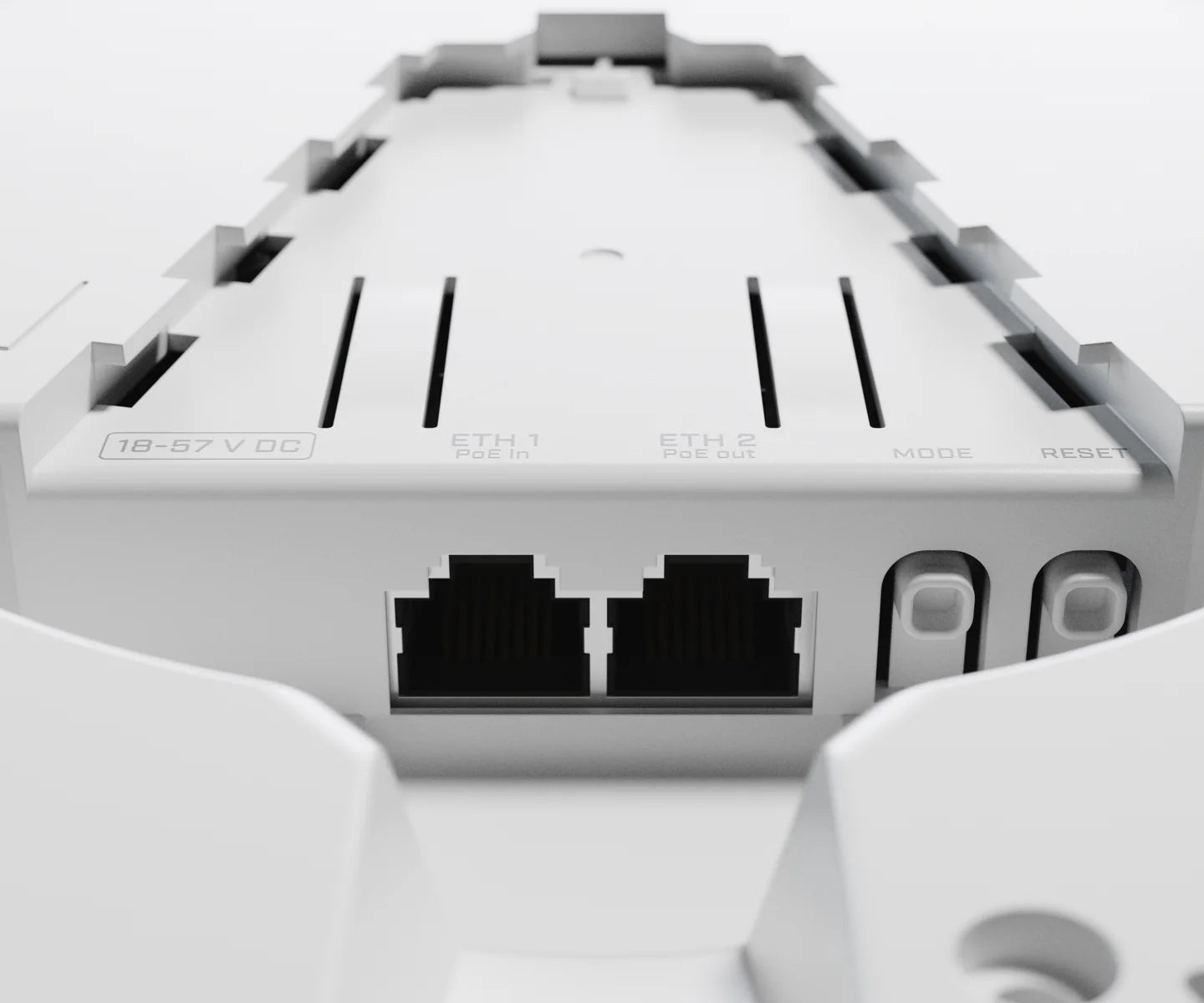

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Specification
Specifications
- Product codeRBcAPGi-5acD2nD-XL
- Suggested price$99.00
- ArchitectureARM 32bit
- CPUIPQ-4018
- CPU core count4
- CPU nominal frequency488-896 (auto) MHz
- CPU Threads count4
- Switch chip modelIPQ-4018
- Dimensions191 x 42 mm
- RouterOS license4
- Operating SystemRouterOS
- Size of RAM128 MB
- Storage size16 MB
- Storage typeFLASH
- MTBFApproximately 100'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz6
- Wireless 2.4 GHz chip modelIPQ-4018
- Wireless 2.4 GHz generationWi-Fi 4
- Wireless 5 GHz Max data rate867 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac
- Antenna gain dBi for 5 GHz5.5
- Wireless 5 GHz chip modelIPQ-4018
- Wireless 5 GHz generationWi-Fi 5
- WiFi speedAC1200
Ethernet
- 10/100/1000 Ethernet ports2
- Number of 1G Ethernet ports with PoE-out1
Powering
- Number of DC inputs1 (PoE-IN)
- Max power consumption24 W
- Max power consumption without attachments11 W
- PoE in802.3af/at
- Cooling typePassive
- PoE in input Voltage18-57 V
PoE-out
- PoE-out portsEther2
- PoE outPassive PoE up to 57V
- Low voltage PoE-Out current limit500 mA
- High voltage PoE-Out current limit330 mA
- Max total out (A)500 mA
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
Other
- Mode buttonYes
Included parts24V 1.2A power adapterGigabit PoE injectorK-81 fastening setcAP XL ac ceiling mountNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
