Specification
Specifications

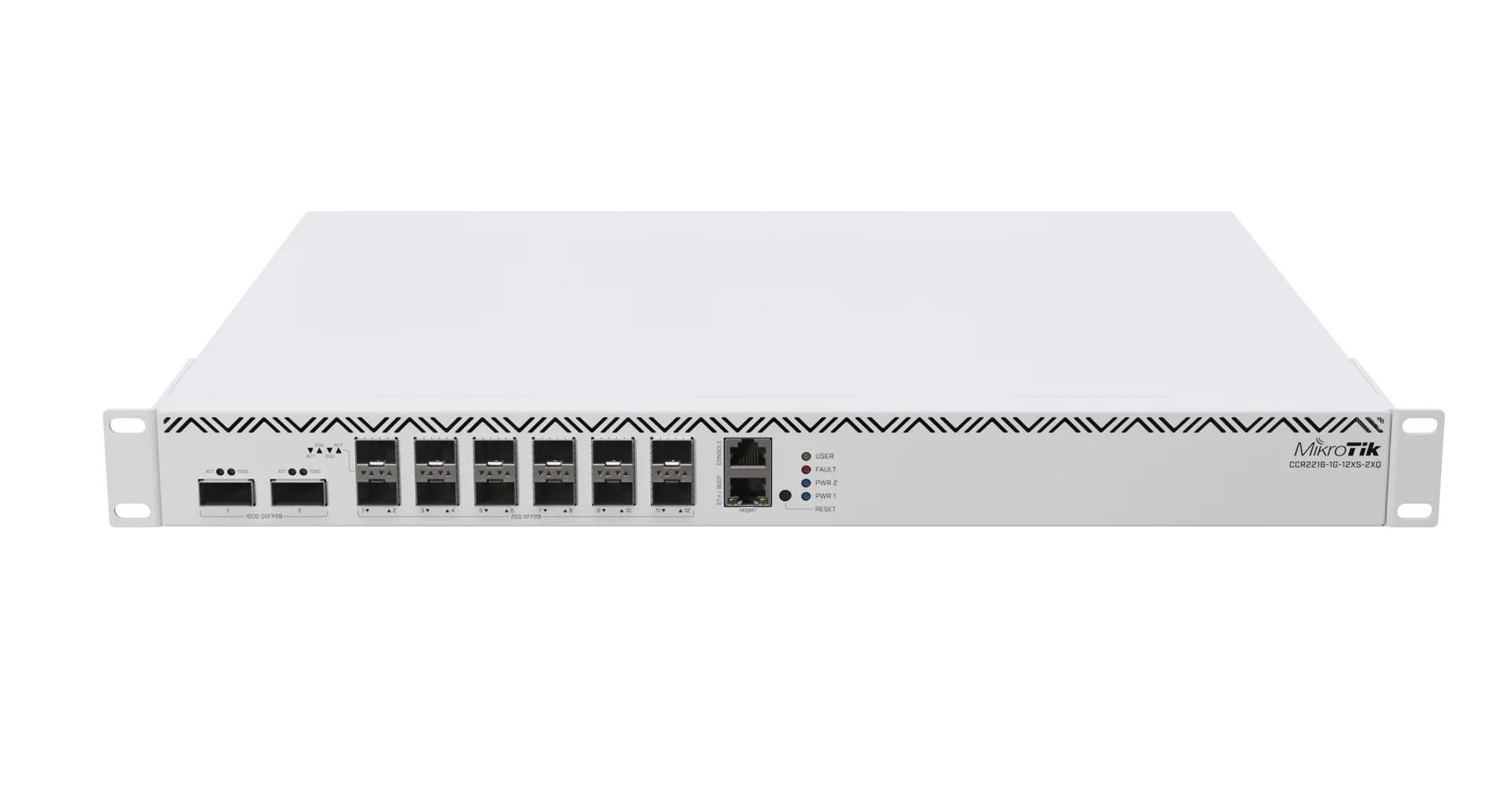

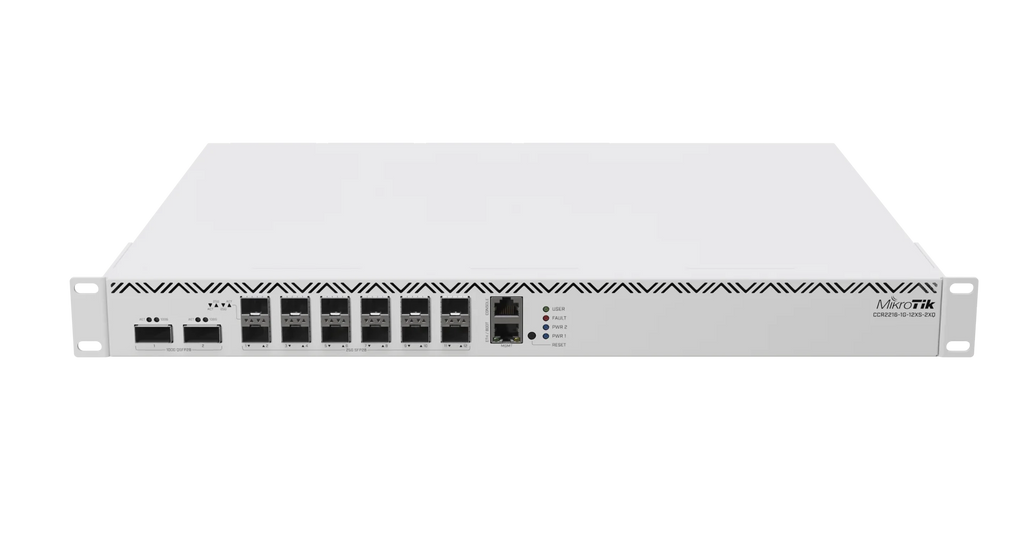

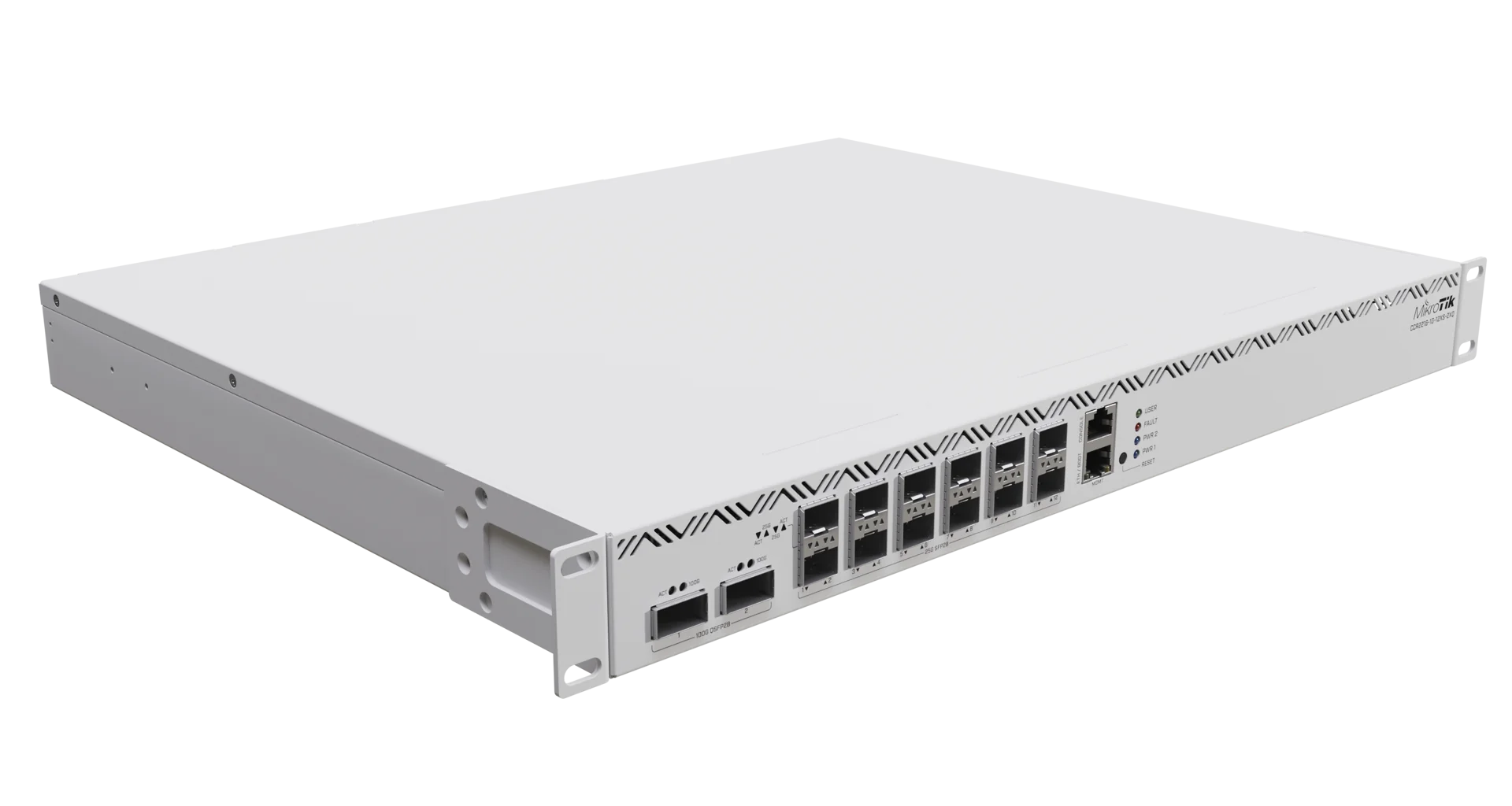

- Product codeCCR2216-1G-12XS-2XQ
- Suggested price$2,795.00
- ArchitectureARM 64bit
- CPUAL73400
- CPU core count16
- CPU nominal frequency2000 MHz
- CPU Threads count16
- Switch chip model98DX8525
- Dimensions443 x 367 x 44 mm
- RouterOS license6
- Operating SystemRouterOS v7
- Size of RAM16 GB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-20°C to 60°C
Powering

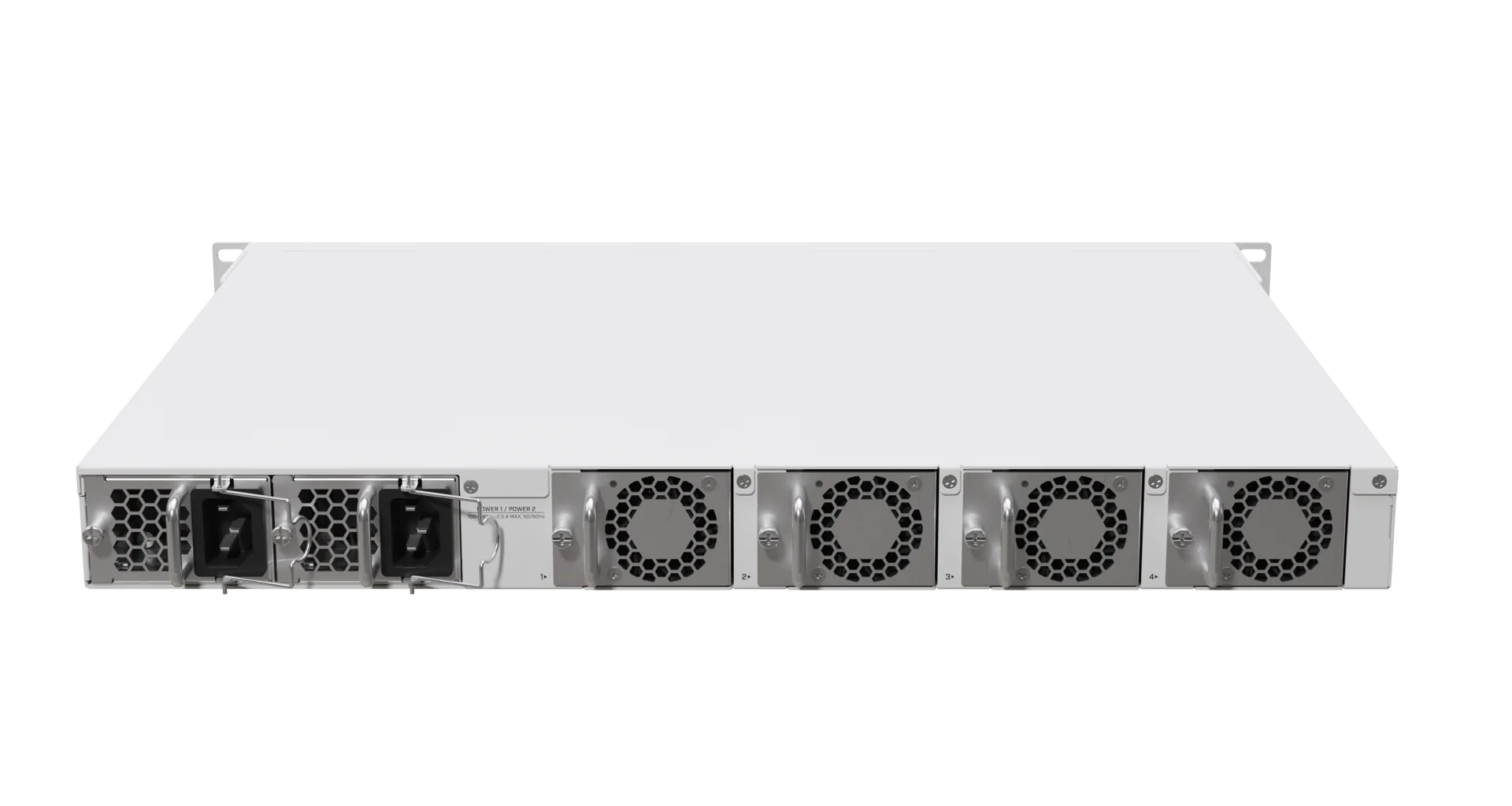

- Number of AC inputs2
- AC input range100-240
- Number of PSU slots2
- Frequency (Hz)50-60
- Max power consumption128 W
- Max power consumption without attachments80 W
- Cooling type4 fans
Ethernet
- 10/100/1000 Ethernet ports1
Fiber
- Number of 25G SFP28 ports12
- Number of 100G QSFP28 ports2
Peripherals
- Serial console portRJ45
- Number of M.2 slots2
Other
- CPU temperature monitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IP20
Included partsIEC cordIEC cordRackmount earsCable managment bracketsK-82 fastening setRackmount rear support ears (2/2)NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
