Why upgrade to CAT7?
• Twice the upload speed (Depending on the LTE tower infrastructure and other variables)
• Expanded frequency support, including Band 28 (700 MHz) & Band 32 (1500 MHz) for better performance in congested areas
• Carrier aggregation (2×CA) for higher efficiency and responsiveness in busy networks
• Same trusted design – no changes to installation or configuration
• Lower cost – better connectivity that actually costs less, especially on volume orders

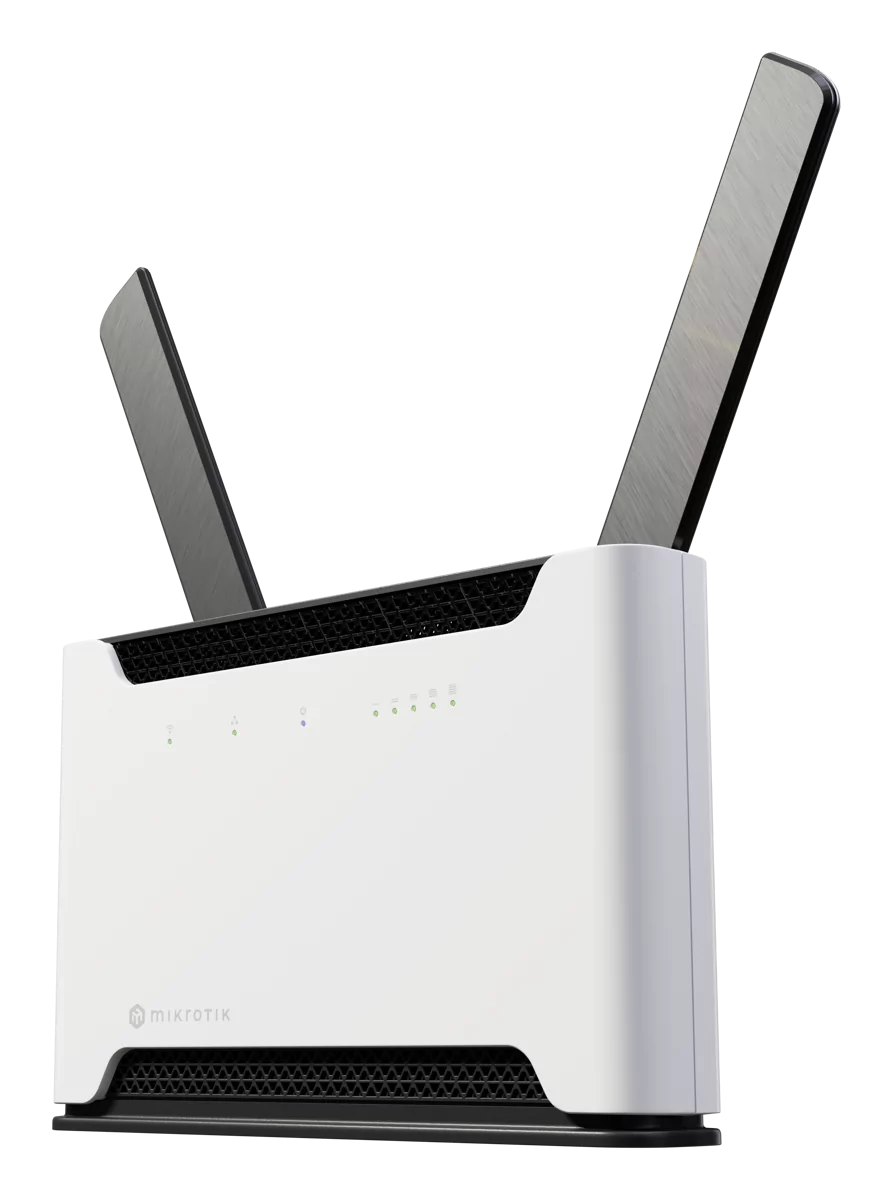

A powerful LTE router for demanding networks
Chateau LTE7 ax combines the new R11e-LTE7 modem with a quad-core ARM CPU, 1GB of RAM, Wi-Fi 6(802.11ax) dual-band wireless, and a 2.5 Gigabit Ethernet port for ultra-fast local connections. Run multiplesecure VPN tunnels, advanced firewall rules, advanced container setups, or complex routing scenarios– all while enjoying faster and more reliable mobile connectivity. Whether LTE is your primary connectionor a rock-solid backup to fiber, Chateau LTE7 ax adapts to your setup effortlessly… and in style!
Perfect for home offices, businesses, and ISPs

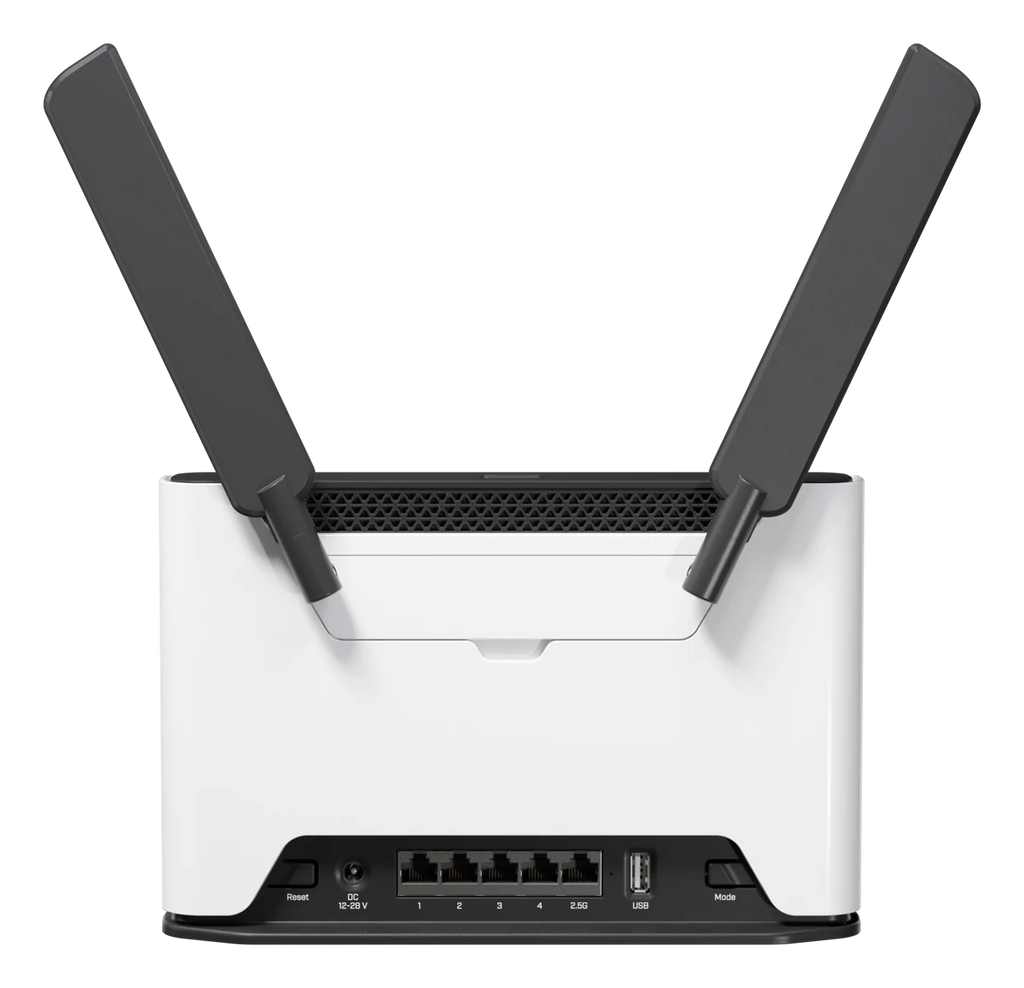

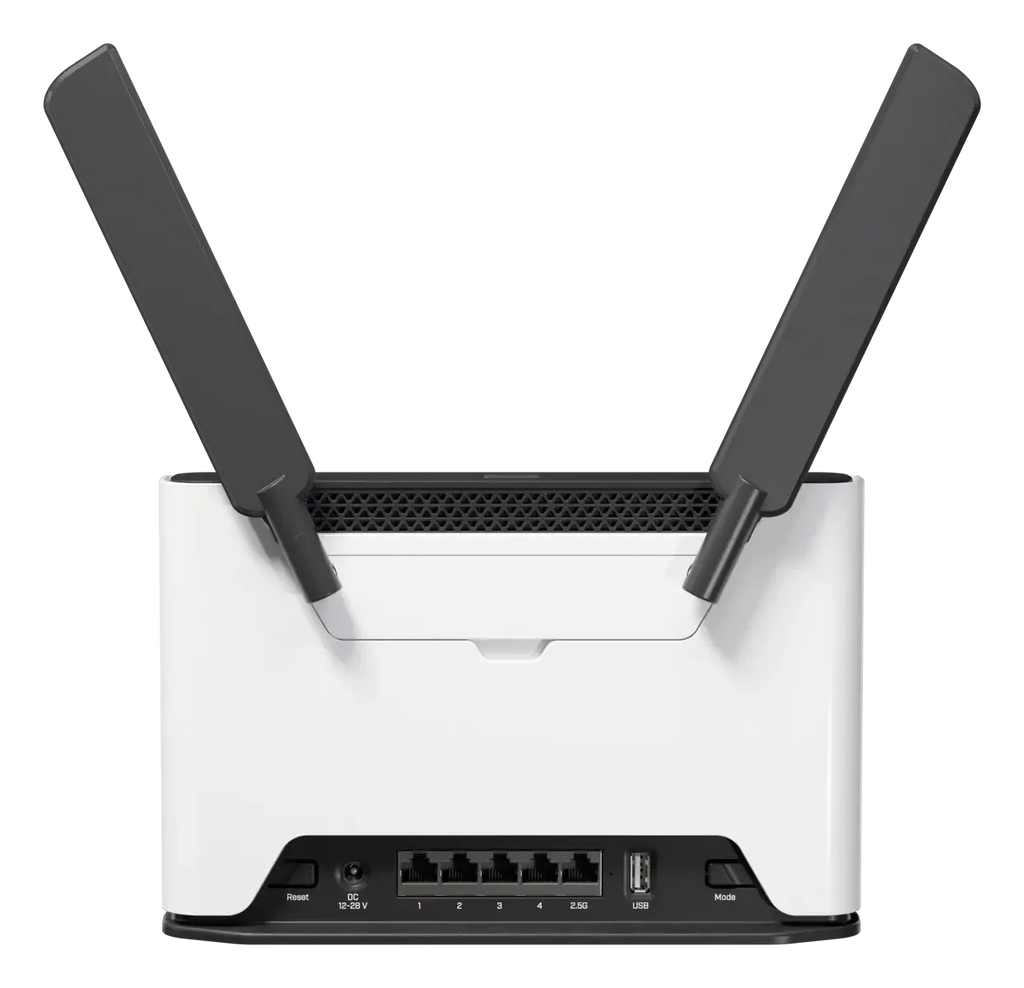

With five Ethernet ports (including a 2.5G port!), 2×2 MIMO LTE and full RouterOS v7 functionality, Chateau LTE7 ax fits a wide range of use cases:
• Secure home offices and remote work
• Small and medium-sized businesses
• LTE-based or hybrid ISP deployments
• Households that want performance and clean design
It’s equally comfortable in the hands of seasoned system administrators who need true flexibility – or users who just want to plug it in and forget it’s there.
Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill.
Specification
Specifications
- Product codeS53UG+5HaxD2HaxD-TC&R11e-LTE7
- Suggested price$169.00
- ArchitectureARM 64bit
- CPUIPQ-6010
- CPU core count4
- CPU nominal frequencyauto MHz
- CPU Threads count4
- Switch chip modelIPQ-6010
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM1 GB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Powering
- Number of DC inputs1 (DC jack)
- DC jack input Voltage12-28 V
- Max power consumption21.5 W
- Max power consumption without attachments15.5 W
- Cooling typePassive
Mobile
- 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)
3 (1800 MHz)
- LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL2x2
- MIMO UL1x1
- LTE FDD bands1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
- LTE TDD bands38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC35312597
Wireless specifications
- Wireless 2.4 GHz Max data rate574 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz3
- Wireless 2.4 GHz chip modelQCN-5022
- Wireless 2.4 GHz generationWi-Fi 6
- Wireless 5 GHz Max data rate1200 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz6
- Wireless 5 GHz chip modelQCN-5052
- Wireless 5 GHz generationWi-Fi 6
Ethernet
- 10/100/1000 Ethernet ports4
- Number of 2.5G Ethernet ports1
Peripherals
- Number of SIM slots1 Modem (Micro SIM)
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1
Other
- CPU temperature monitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
- Mode buttonYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IP20
Included parts24V 1.2A power adapterUTP Flat Cable (1.5m)NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
