The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
Specification
Specifications

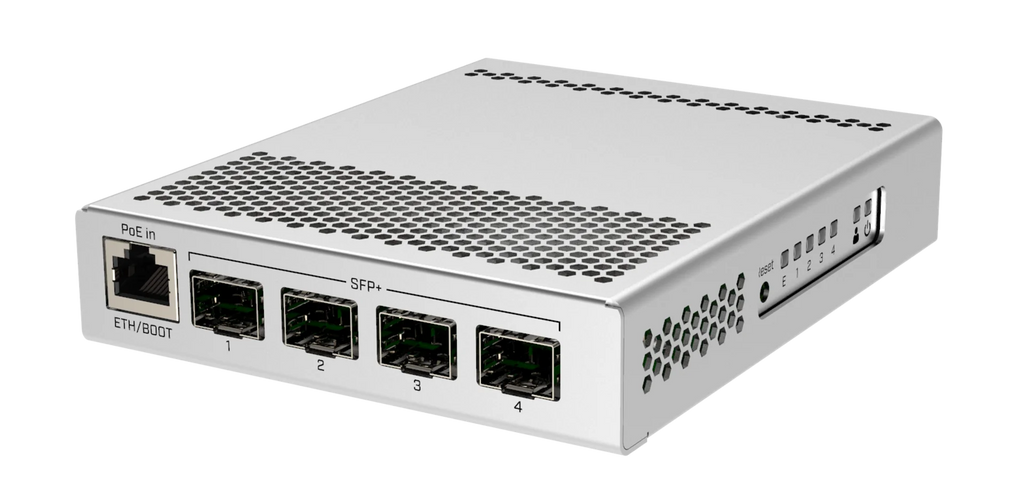

- Product codeCRS305-1G-4S+IN
- Suggested price$149.00
- ArchitectureARM 32bit
- CPU98DX3236
- CPU core count2
- CPU nominal frequency800 MHz
- Switch chip model98DX3236
- Dimensions141 x 115 x 28 mm
- RouterOS license5
- Operating SystemRouterOS / SwitchOS
- Size of RAM512 MB
- Storage size16 MB
- Storage typeFLASH
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Powering

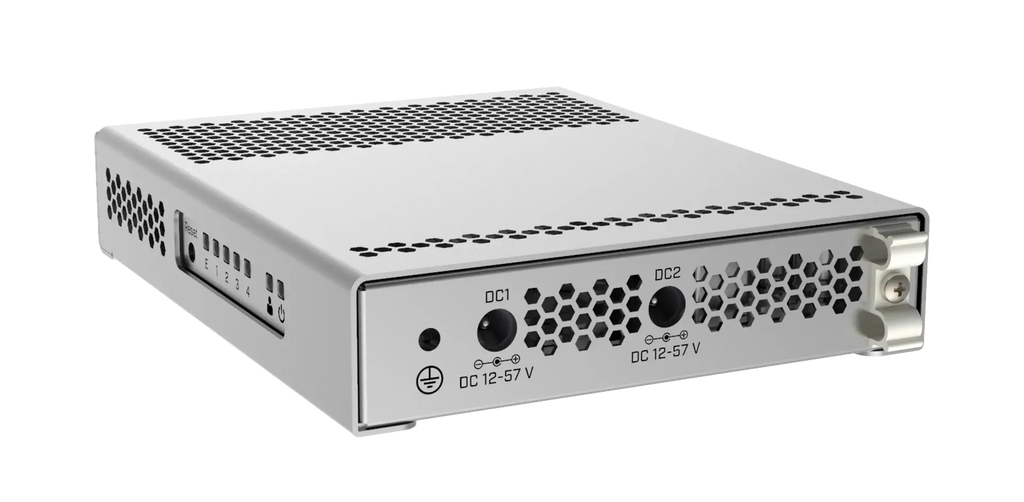

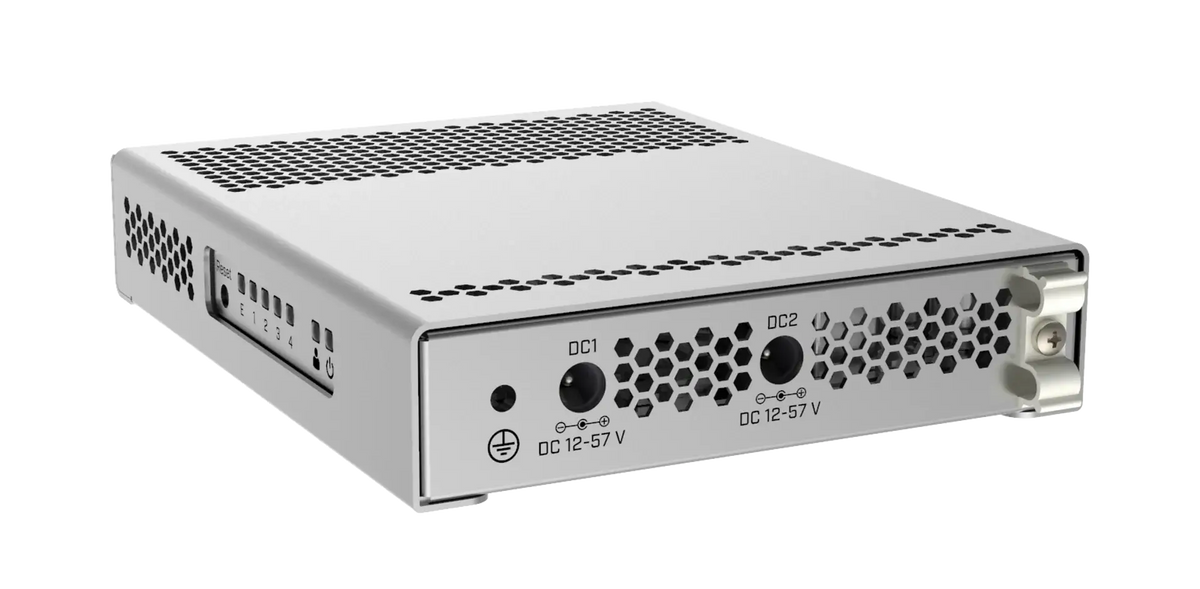

- Number of DC inputs3 (DC jack, PoE-IN)
- DC jack input Voltage12-57 V
- Max power consumption18 W
- Max power consumption without attachments10 W
- PoE in802.3af/at
- Cooling typePassive
- PoE in input Voltage12-57 V
Ethernet
- 10/100/1000 Ethernet ports1
Fiber

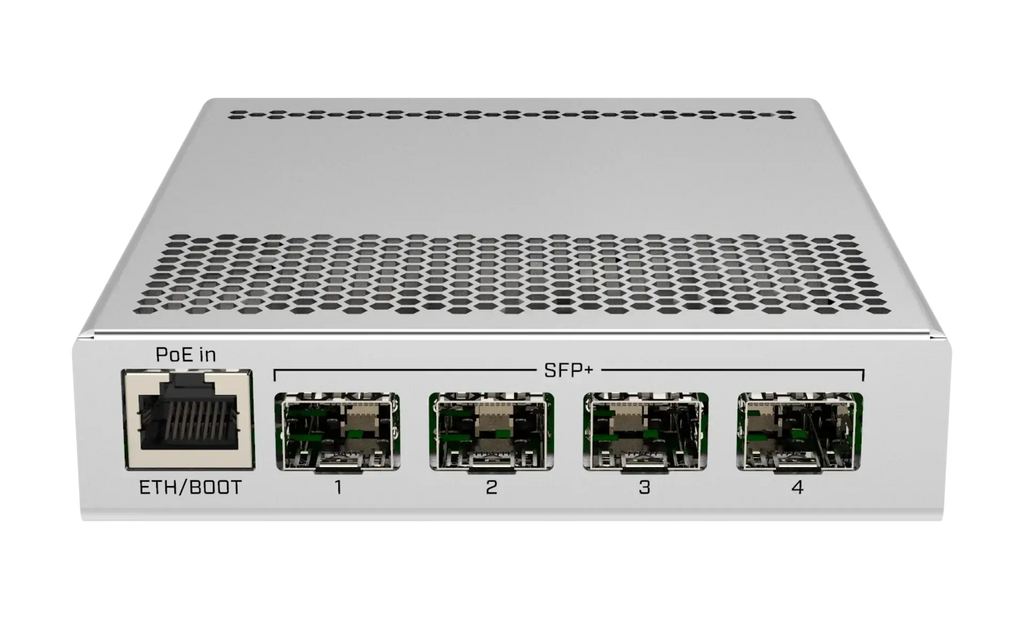

- SFP+ ports4
Other
- CPU temperature monitorYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IPIP20
Included parts24V 0.8A power adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
