CRS309-1G-8S+IN

CRS309-1G-8S+IN

$379.73 CAD
CRS309-1G-8S+IN

CRS309-1G-8S+IN

CRS309-1G-8S+IN
$379.73 CAD
Shipping calculated at checkout.
Out of stock

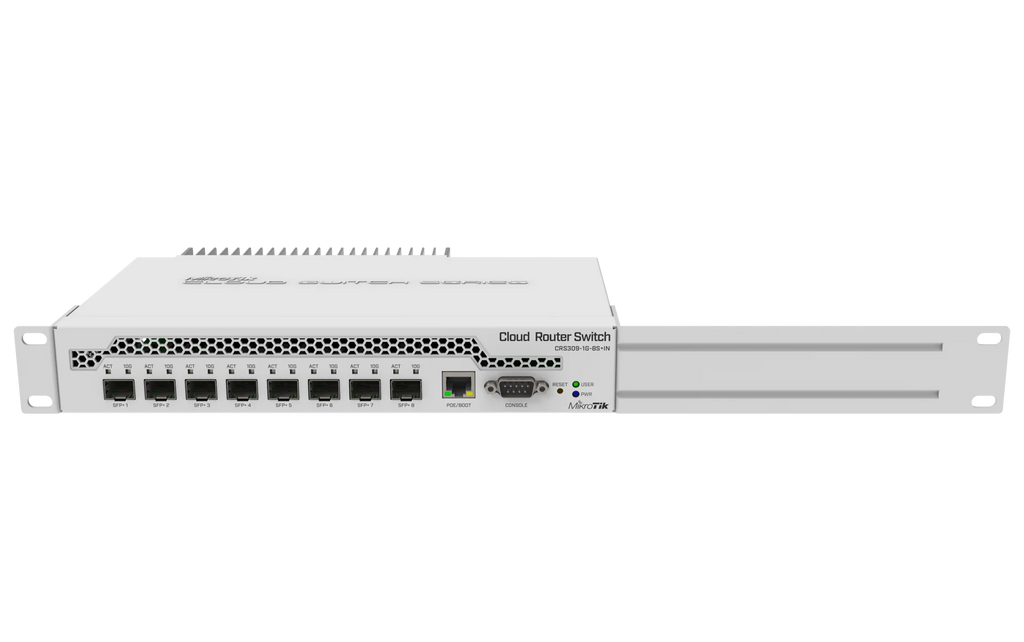

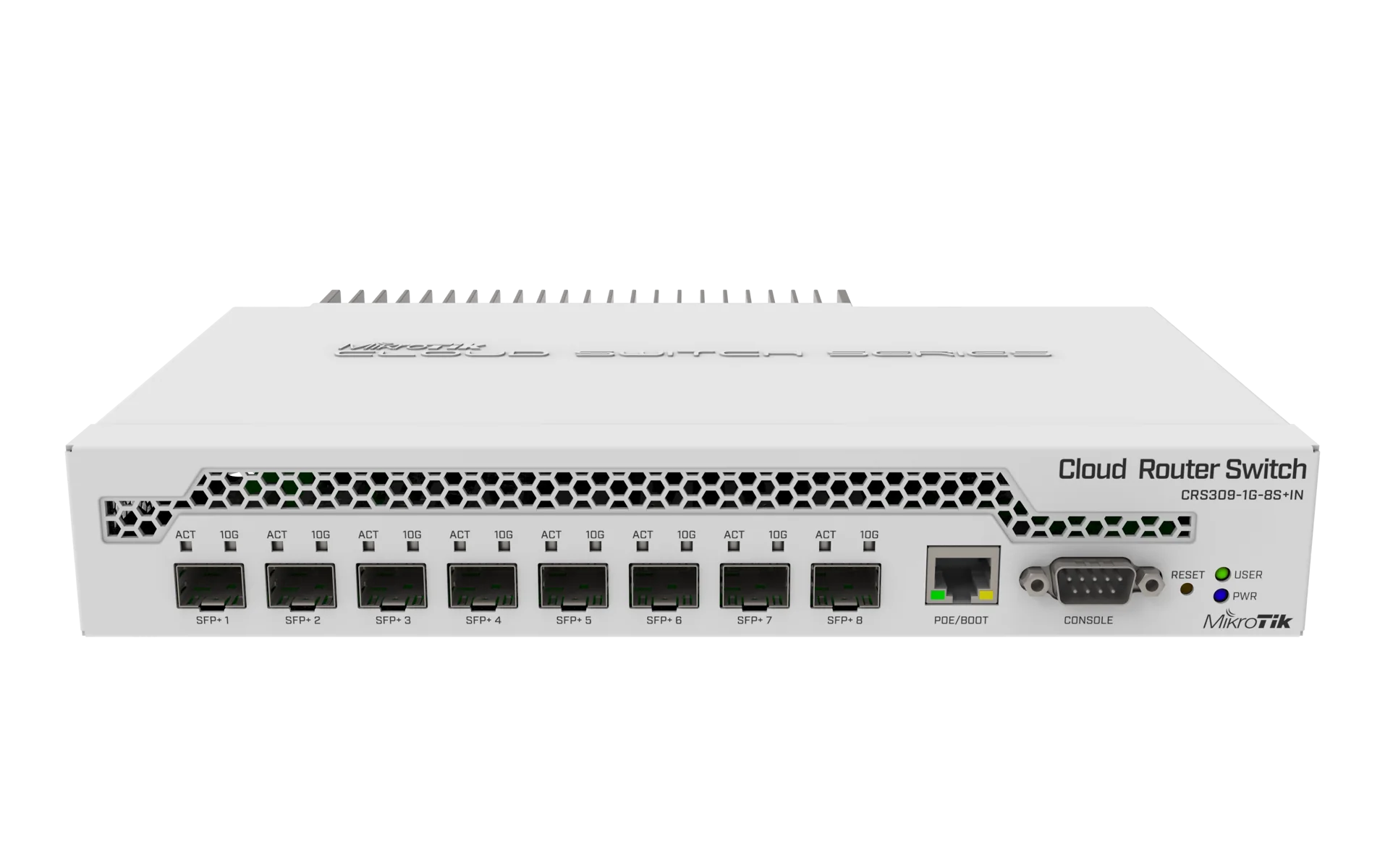

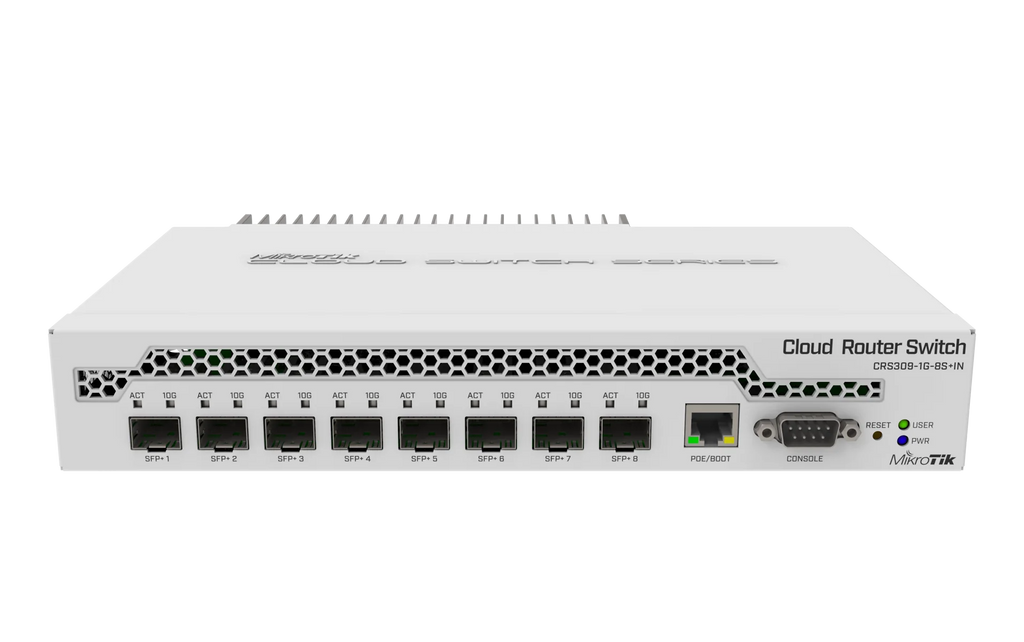

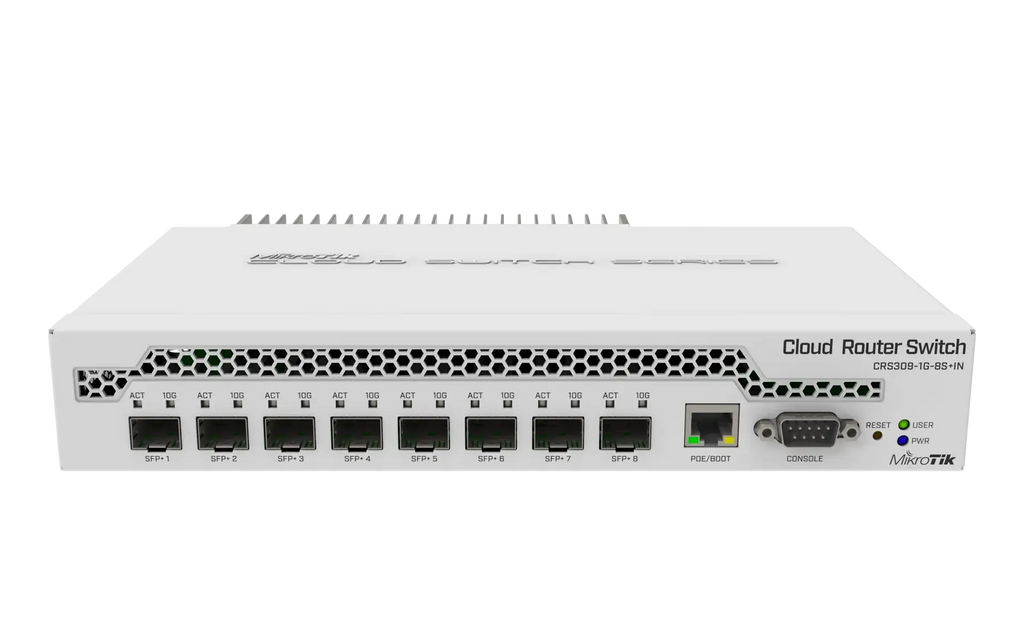

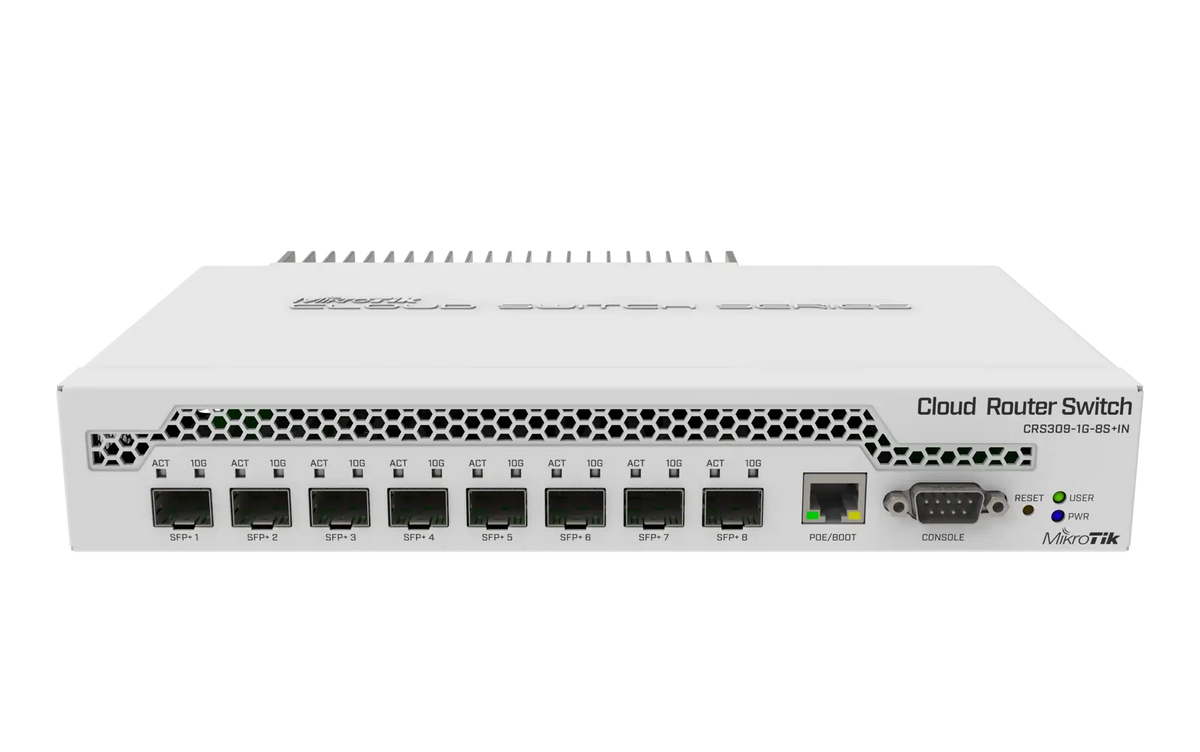

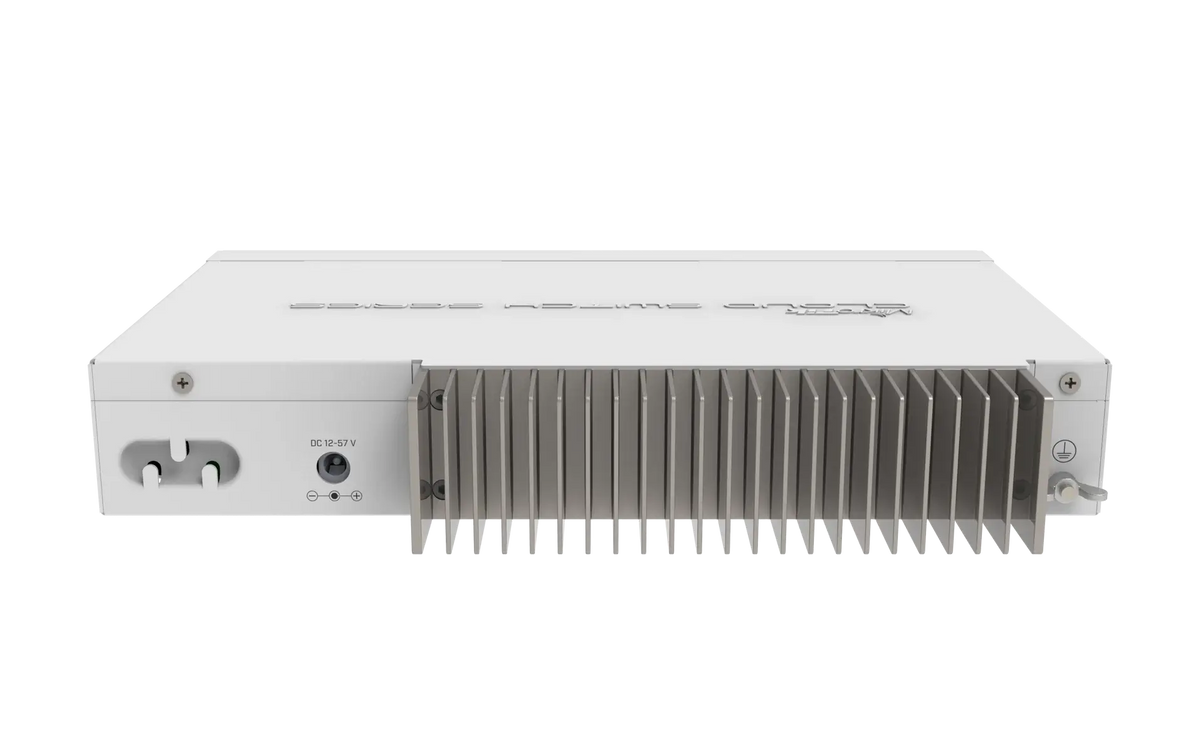

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports.

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).


CRS309-1G-8S+IN
  • CRS309-1G-8S+IN
  • CRS309-1G-8S+IN
  • CRS309-1G-8S+IN
  • CRS309-1G-8S+IN

Specification

Specifications

  • Product codeCRS309-1G-8S+IN
  • Suggested price$269.00
  • ArchitectureARM 32bit
  • CPU98DX8208
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • Switch chip model98DX8208
  • Dimensions272 x 191 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS / SwitchOS
  • Size of RAM512 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-57 V
  • Max power consumption23 W
  • Max power consumption without attachments17 W
  • PoE in802.3af/at

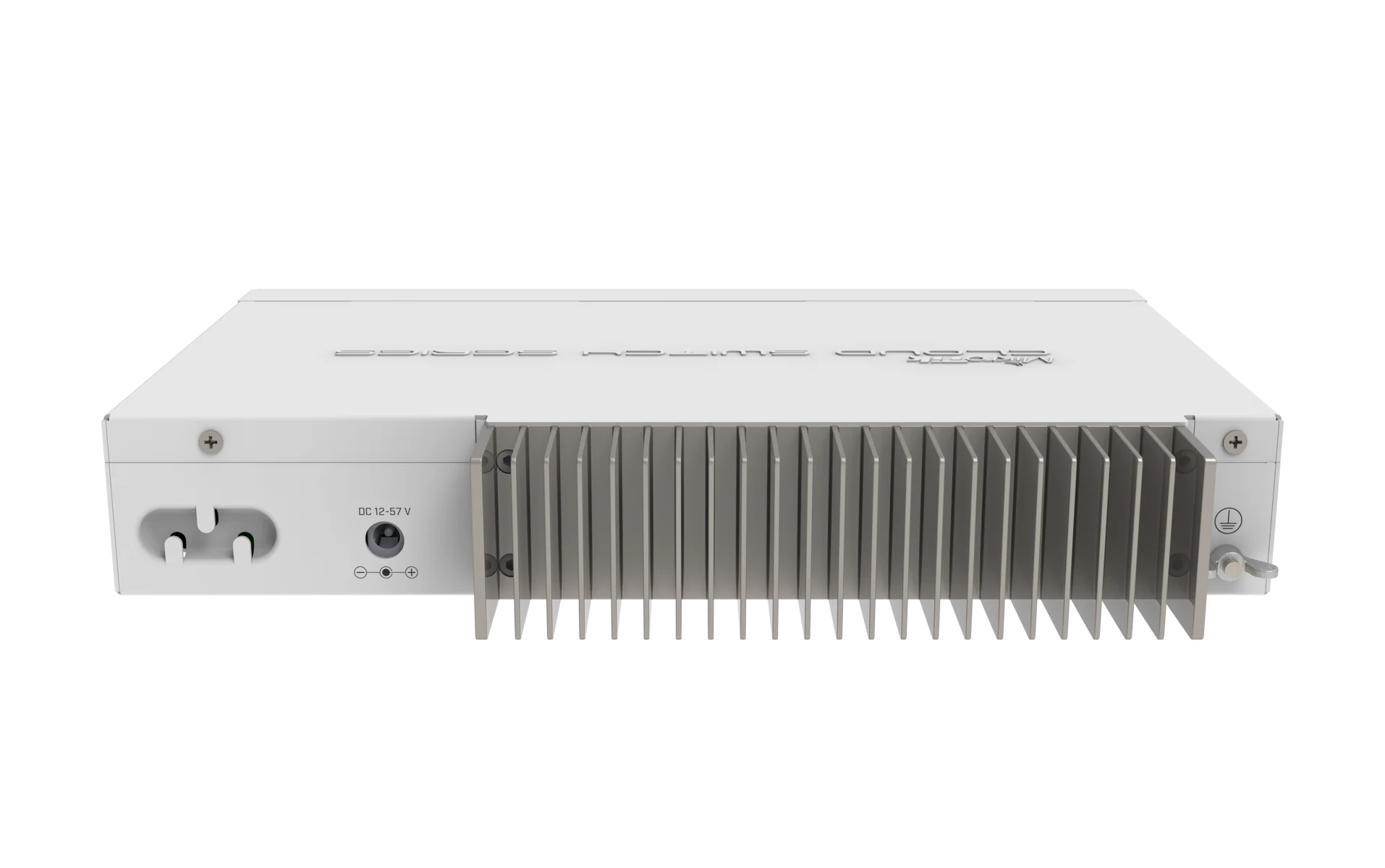

  • Cooling typePassive
  • PoE in input Voltage18-57 V

Ethernet

  • 10/100/1000 Ethernet ports1

Fiber

  • SFP+ ports8

Peripherals

  • Serial console portRS232

Other

  • CPU temperature monitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

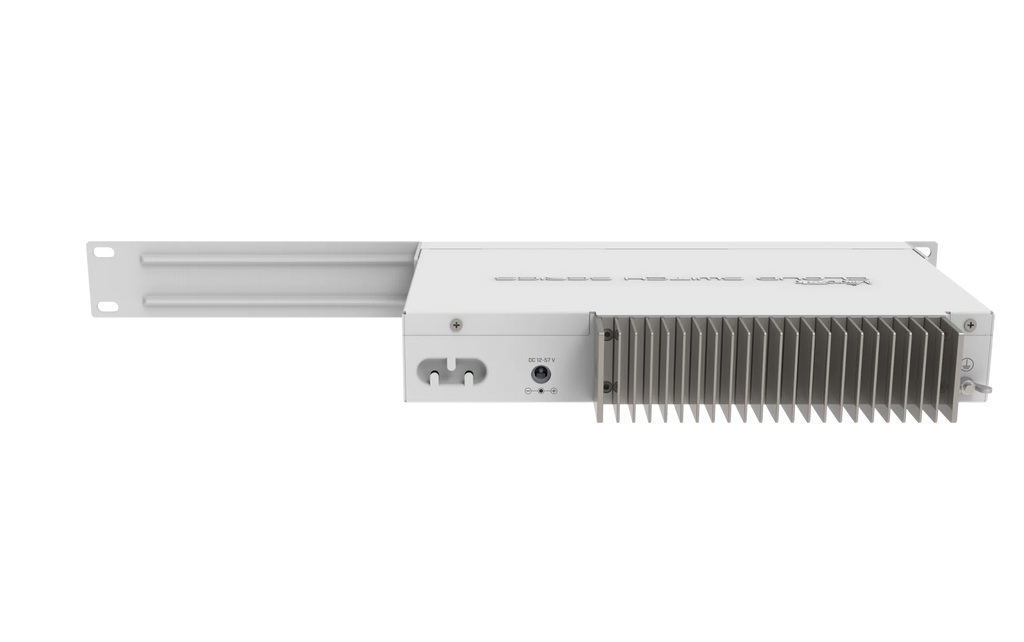

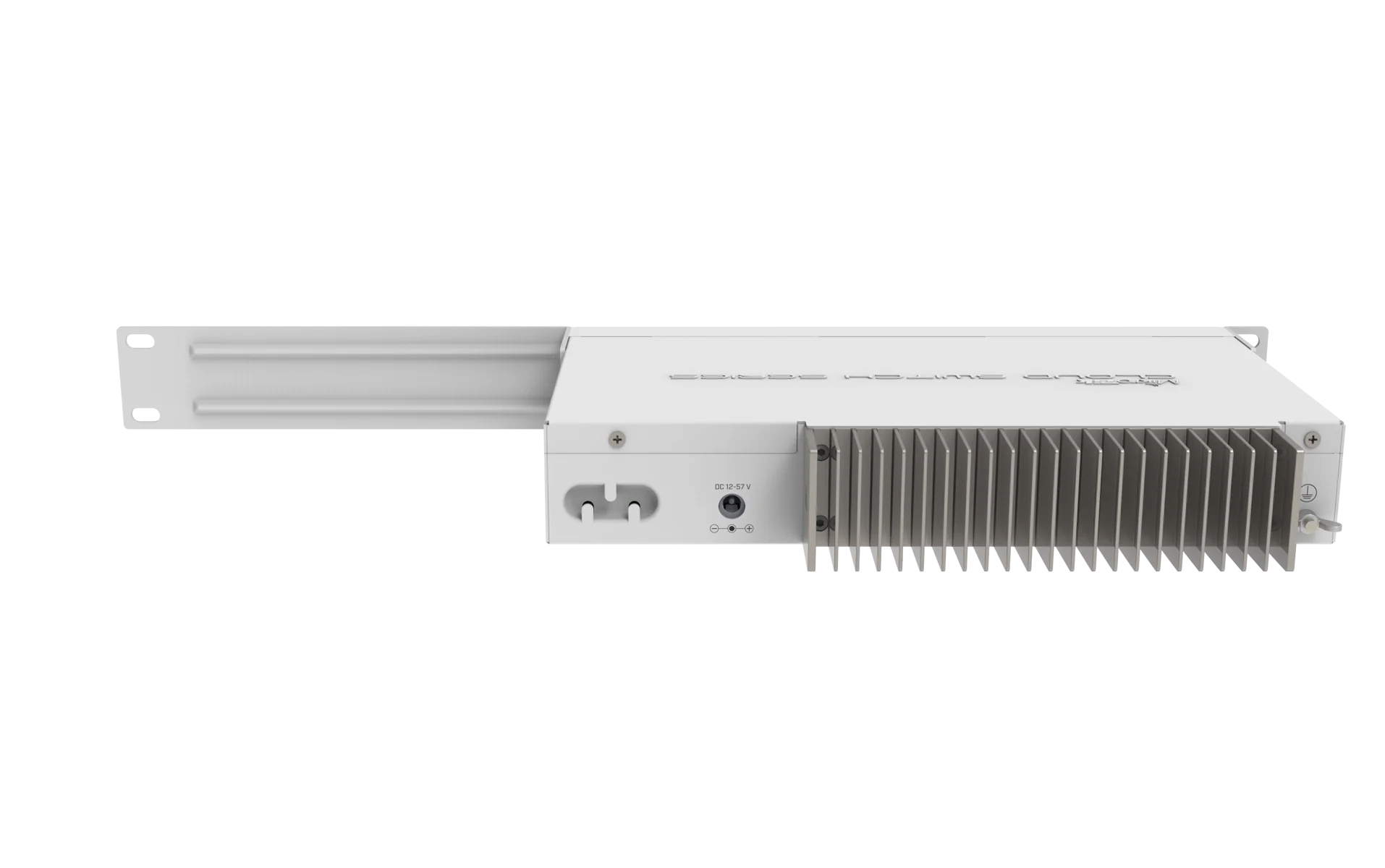

Included parts24V 1.2A power adapterEarsK-37 fastening setNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
