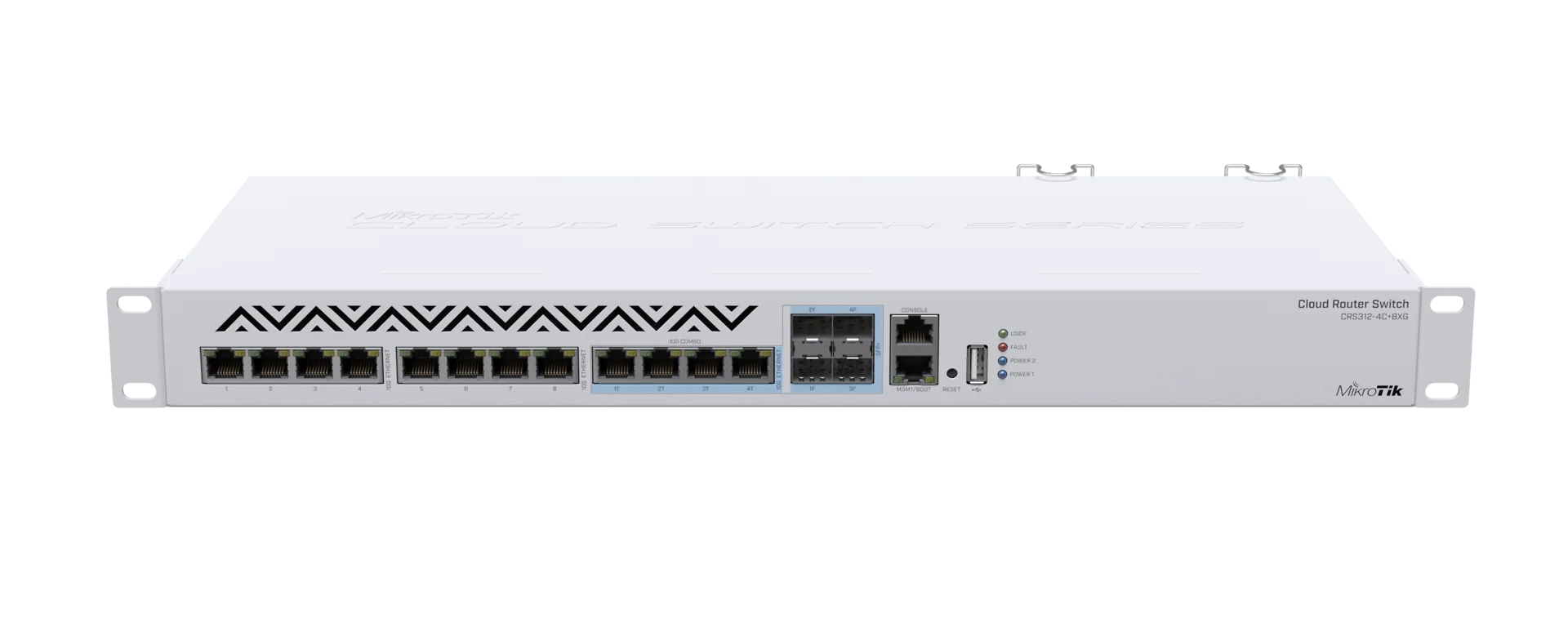

Switch of the future: the first MikroTik product with 10G RJ45 Ethernet ports and SFP+

Remove the bottleneck from your network setup – it is time to upgrade that 1 Gigabit switch to something truly powerful and enjoy real speed. Introducing CRS312-4C+8XG-RM – our first product with 10G RJ45 Ethernet ports. Moreover, it also has 4 x 10G combo ports: use them for 10G RJ45 Ethernet or 10G SFP+, when you need an additional fiber connection. Combo ports can be used alongside the 8 regular 10G RJ45 Ethernet ports at all times. These ports can also be software selected, so you can use RouterOS scripting, to decide which combo ports will be active.
CRS312-4C+8XG-RM
  • CRS312-4C+8XG-RM

This device is a practical solution for those who work with huge data files and need fast, capable connection 24/7: multimedia production, scientific research, game development, big data analysis and so on. CRS312-4C+8XG-RM has a dual power supply for redundancy – no unexpected downtime when the deadlines are looming. It has a full size USB, a console port for configuration and a 1U rackmount case – fits all the standard racks.

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

This switch has a great total non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps and forwarding rate of 178 Mpps. CRS312-4C+8XG-RM – built for professionals, great for everyone!

Specification

Specifications

  • Product codeCRS312-4C+8XG-RM
  • Suggested price$699.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip model98DX8212
  • Dimensions443 x 183 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS v7 / SwitchOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-30°C to 70°C

Powering

  • Number of AC inputs2
  • AC input range100-240
  • Frequency (Hz)50-60
  • Max power consumption60 W
  • Cooling type4 fans

Ethernet

  • 10/100 Ethernet ports1
  • Number of Combo 10G Ethernet/ SFP+ ports4
  • Number of 1G/2.5G/5G/10G Ethernet ports8

Peripherals

  • Serial console portRJ45
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Other

  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included parts2x IEC cordsRack earsK-57 kitNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
