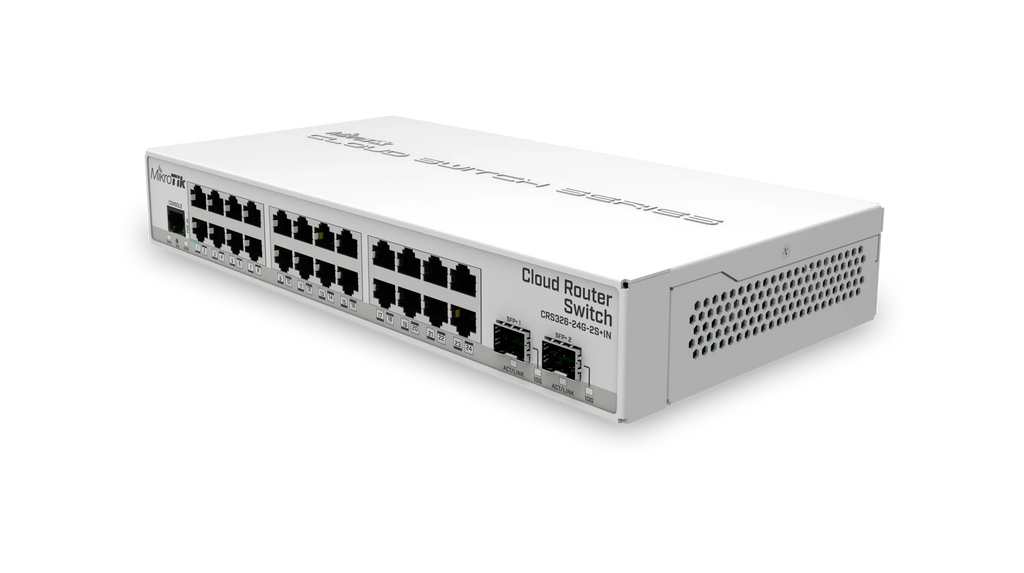

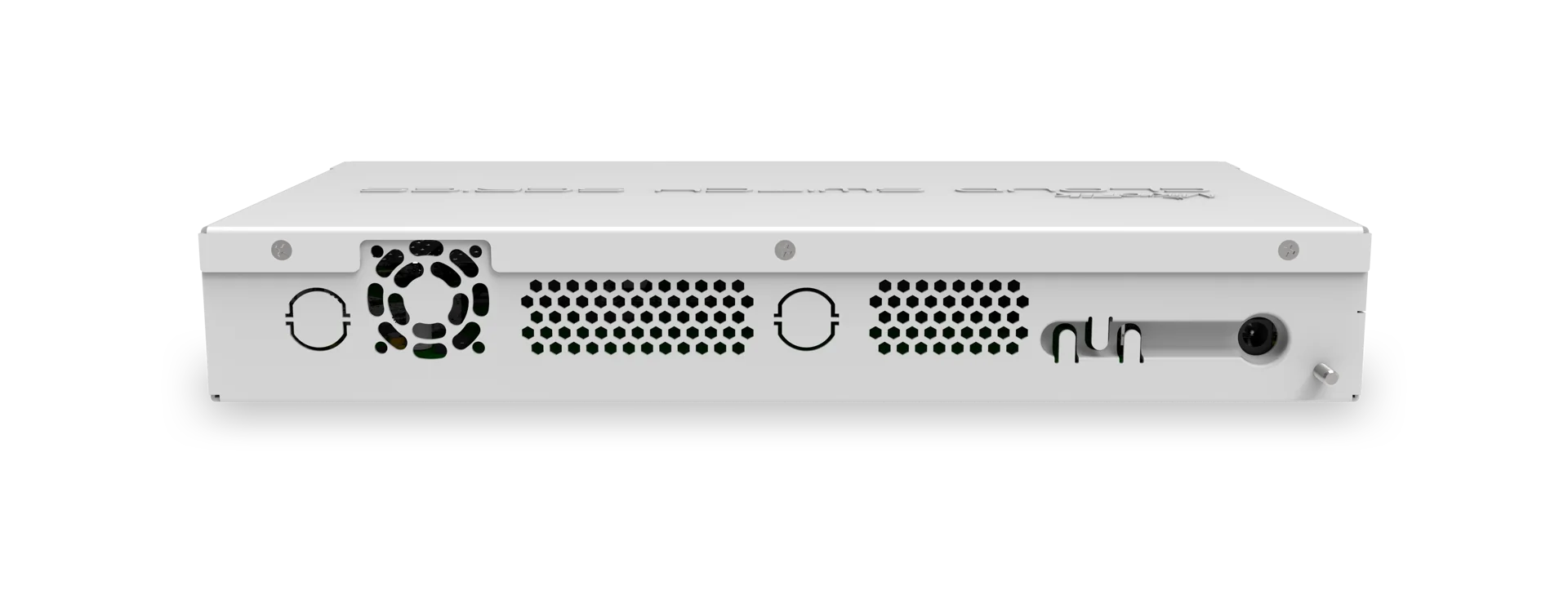

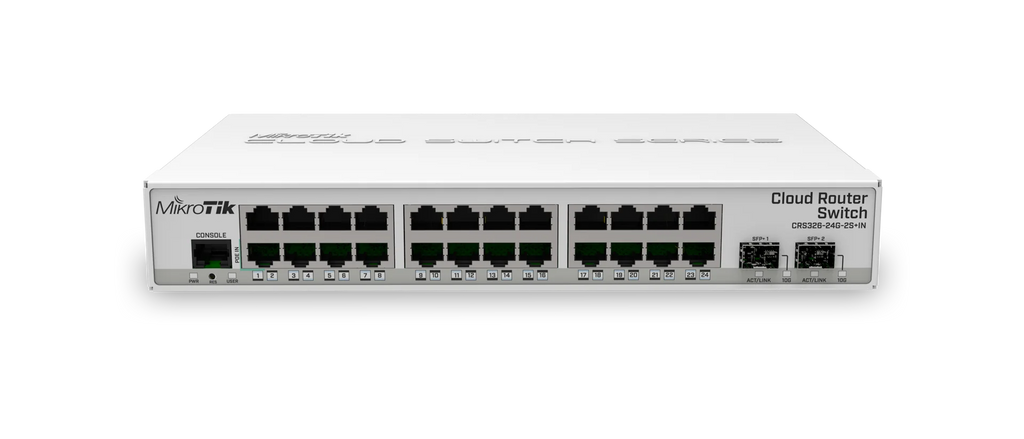

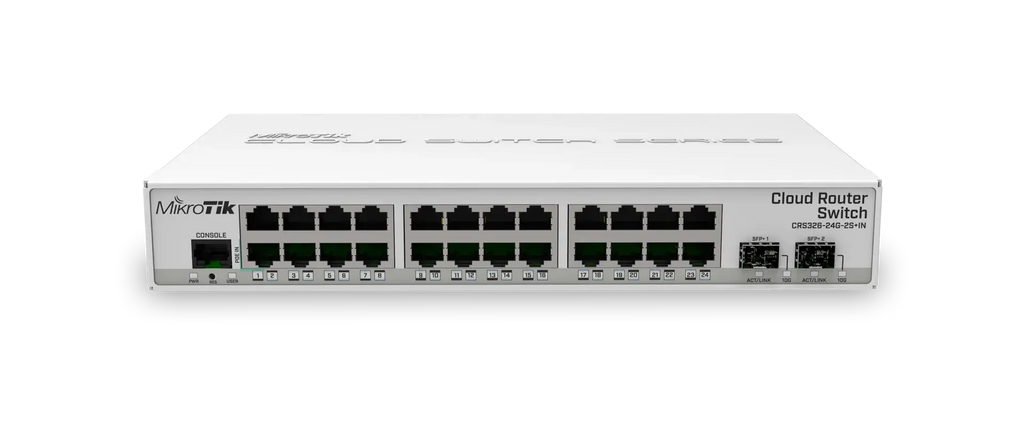

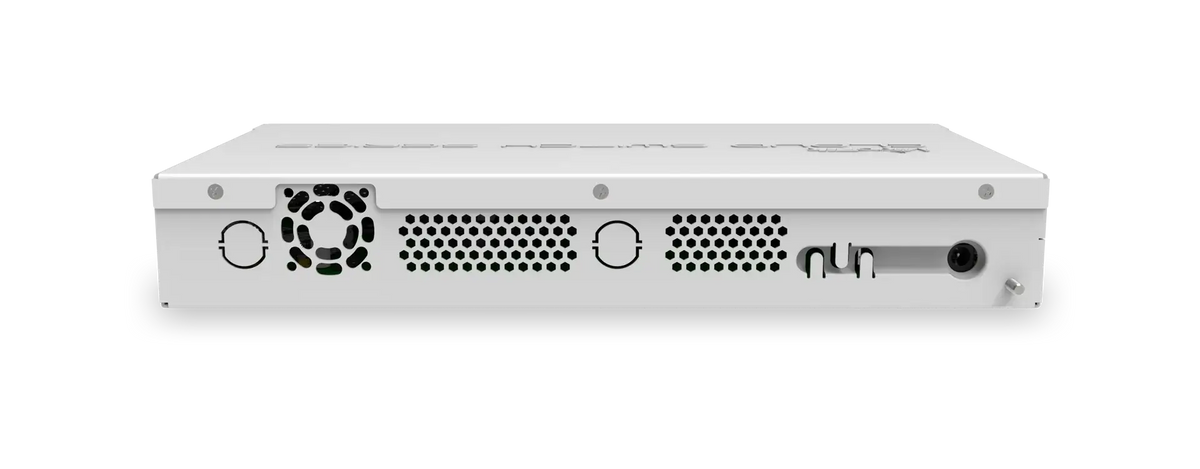

CRS326-24G-2S+IN

CRS326-24G-2S+IN

$268.65 CAD
CRS326-24G-2S+IN

CRS326-24G-2S+IN

CRS326-24G-2S+IN
$268.65 CAD
Shipping calculated at checkout.
6 left

24 Gigabit ports, 2 SFP+ cages and a desktop case – server room power for your home!

A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!
CRS326-24G-2S+IN
  • CRS326-24G-2S+IN
  • CRS326-24G-2S+IN
  • CRS326-24G-2S+IN

Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!

CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.

Specification

Specifications

  • Product codeCRS326-24G-2S+IN
  • Suggested price$199.00
  • ArchitectureARM 32bit
  • CPU98DX3236
  • CPU core count2
  • CPU nominal frequency800 MHz
  • Switch chip model98DX3236
  • Dimensions285 x 144 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS / SwitchOS
  • Size of RAM512 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 60°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage10-30 V
  • Max power consumption21 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage10-30 V

Ethernet

  • 10/100/1000 Ethernet ports24

Fiber

  • SFP+ ports2

Peripherals

  • Serial console portRJ45

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included parts24V 1.2A power adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
