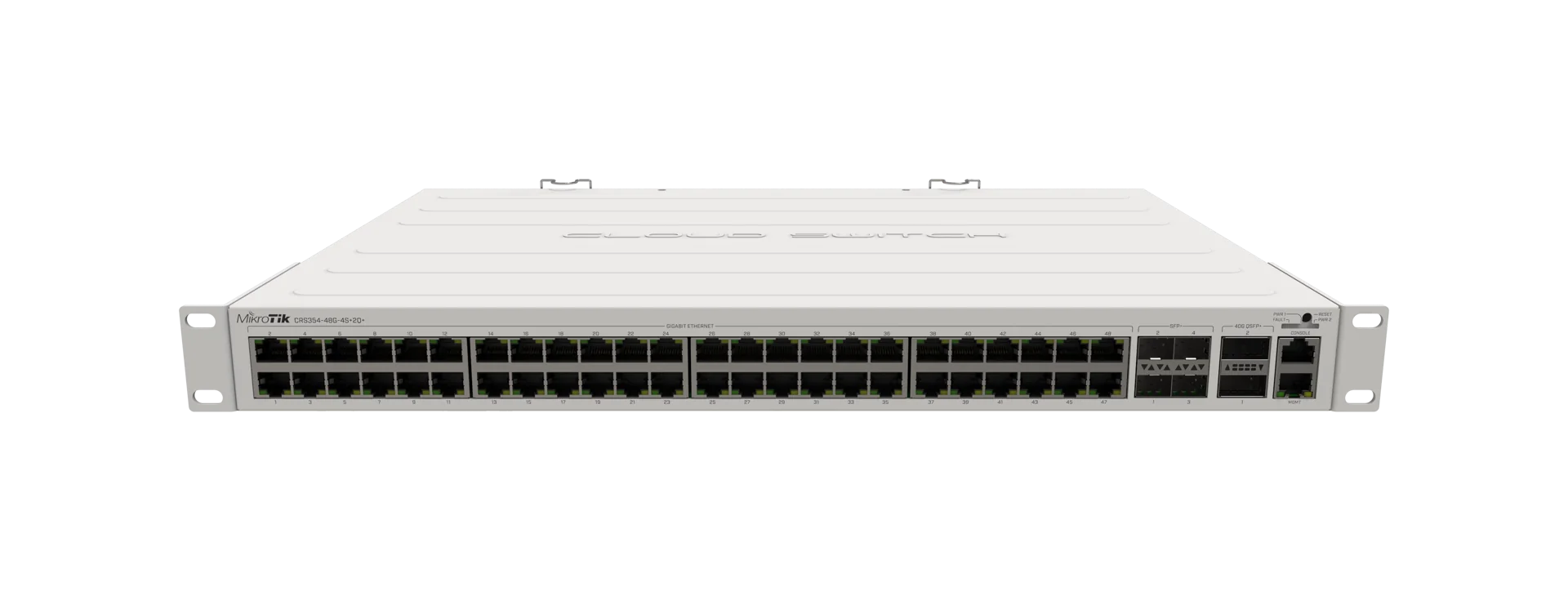

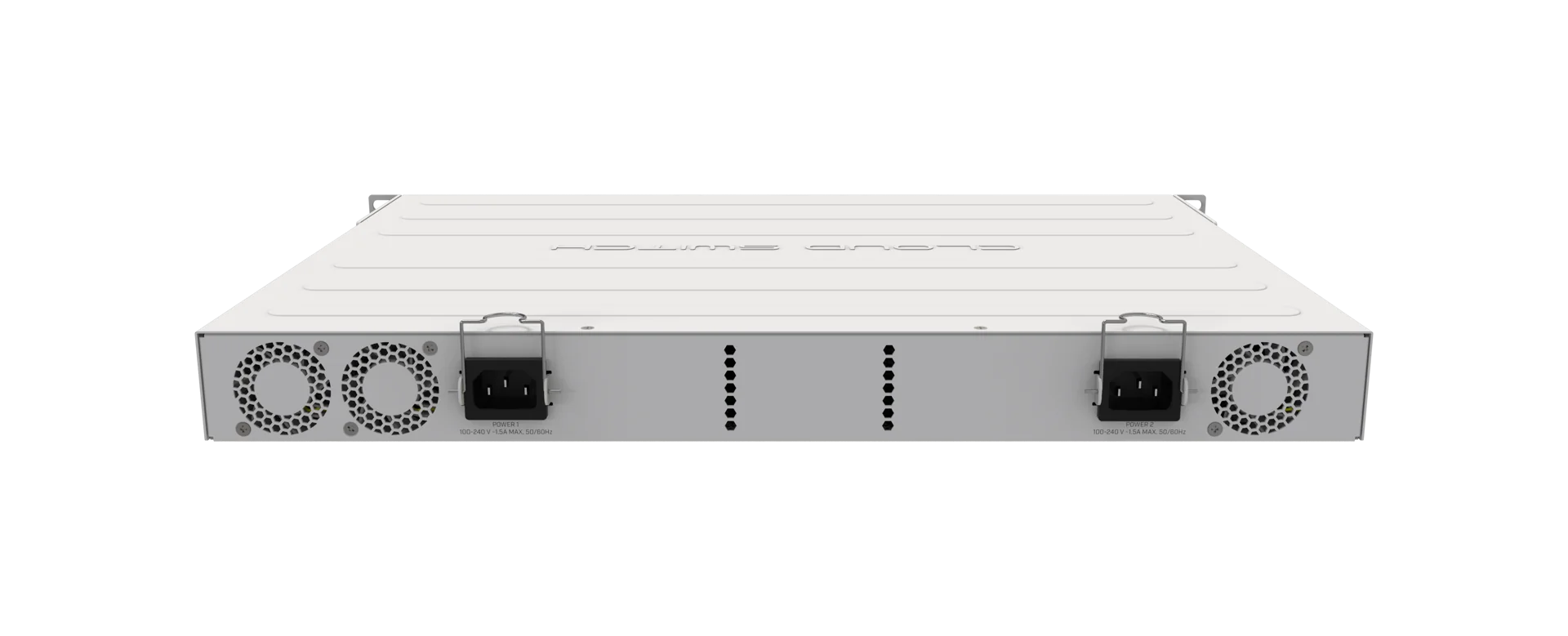

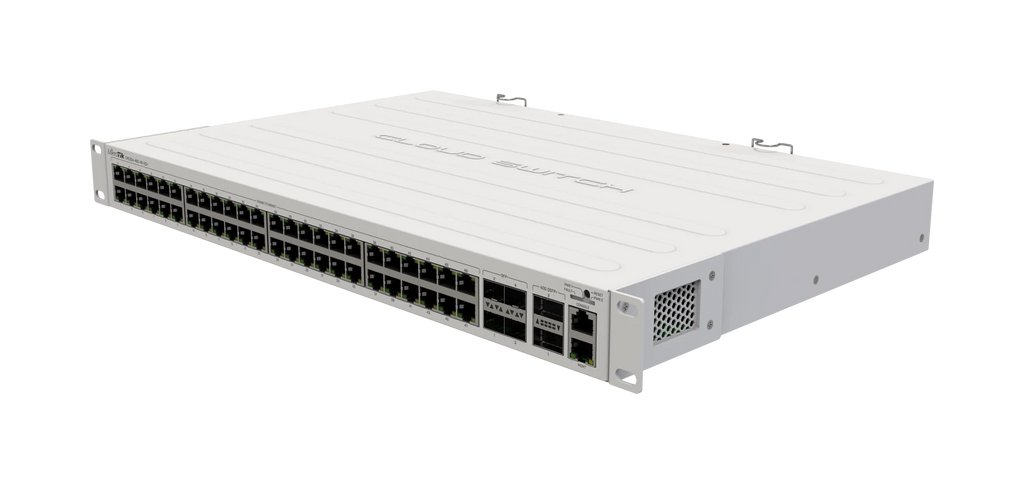

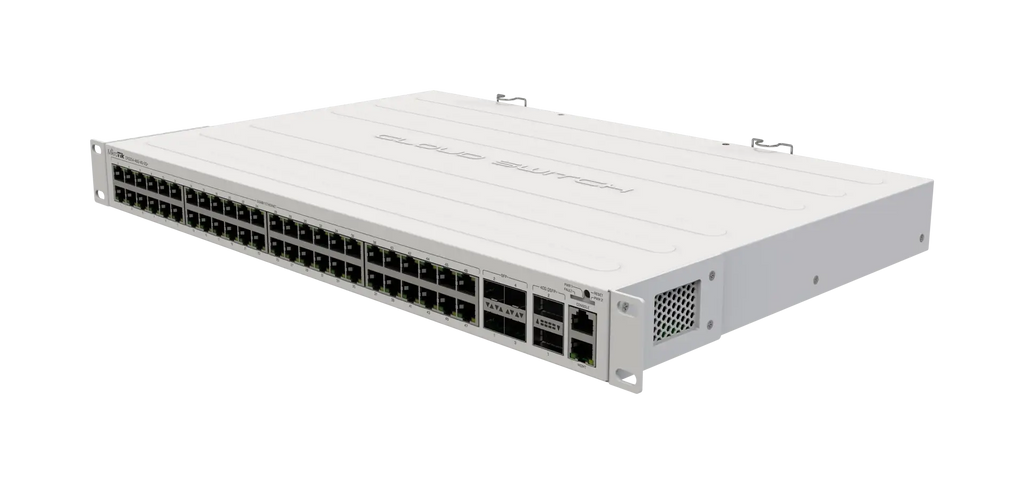

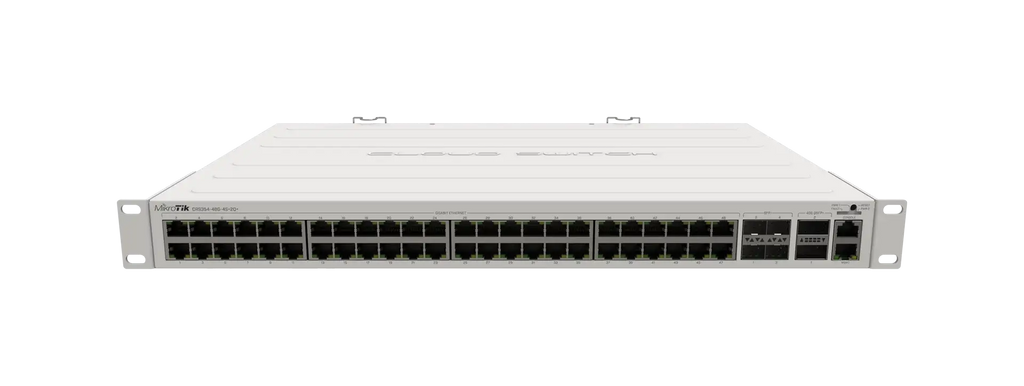

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specification
Specifications
- Product codeCRS354-48G-4S+2Q+RM
- Suggested price$599.00
- ArchitectureMIPSBE
- CPUQCA9531
- CPU core count1
- CPU nominal frequency650 MHz
- Switch chip model98DX3257
- Dimensions297 x 443 x 44 mm
- RouterOS license5
- Operating SystemRouterOS v7 / SwitchOS
- Size of RAM128 MB
- Storage size32 MB
- Storage typeFLASH
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-20°C to 60°C
Powering
- Number of AC inputs2
- AC input range100-240
- Number of PSU slots2
- Frequency (Hz)50-60
- Max power consumption60 W
- Max power consumption without attachments50 W
- Cooling type3 fans
Ethernet
- 10/100 Ethernet ports1
- 10/100/1000 Ethernet ports48
Fiber
- SFP+ ports4
- Number of 40G QSFP+ ports2
Peripherals
- Serial console portRJ45
Other
- CPU temperature monitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IPIP20
Included parts2x IEC cordsCable managment bracketsRackmount ears (CRS)K-48 fastening setNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
