CRS520-4XS-16XQ-RM

CRS520-4XS-16XQ-RM

$3,098.88 CAD
CRS520-4XS-16XQ-RM

CRS520-4XS-16XQ-RM

CRS520-4XS-16XQ-RM
$3,098.88 CAD
Shipping calculated at checkout.
Out of stock

An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!

Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

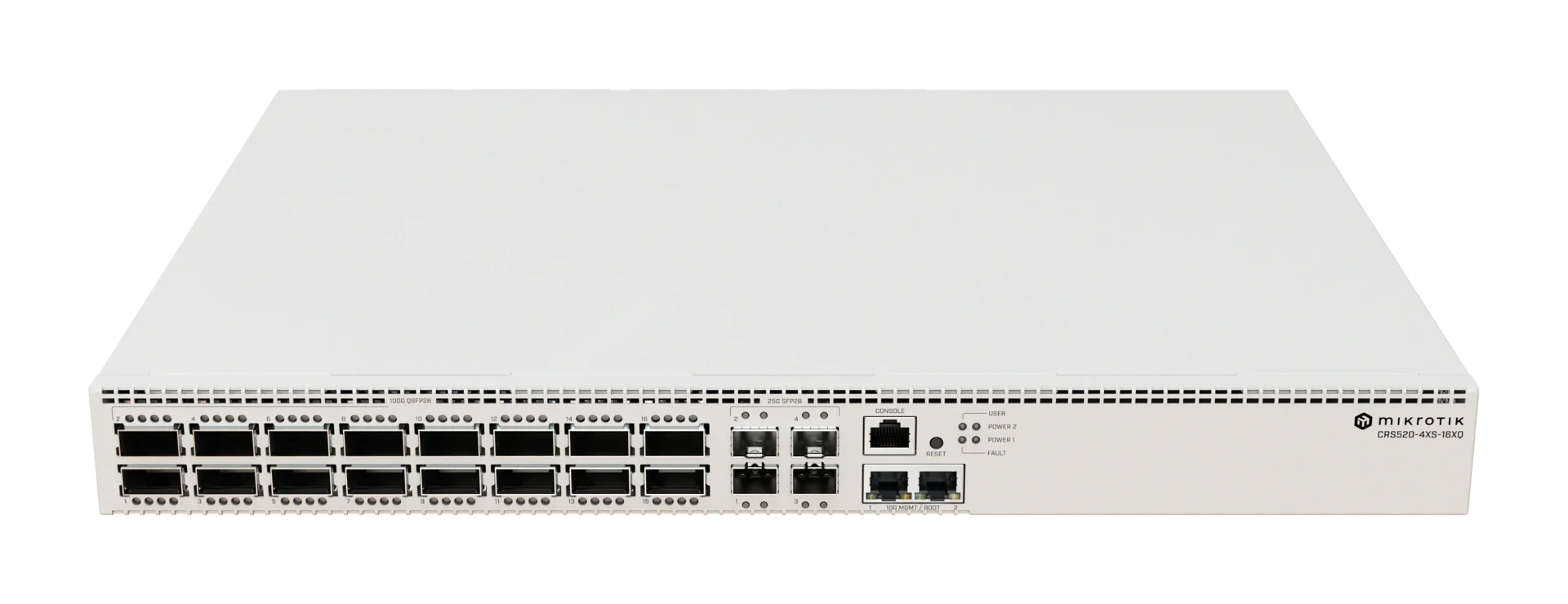

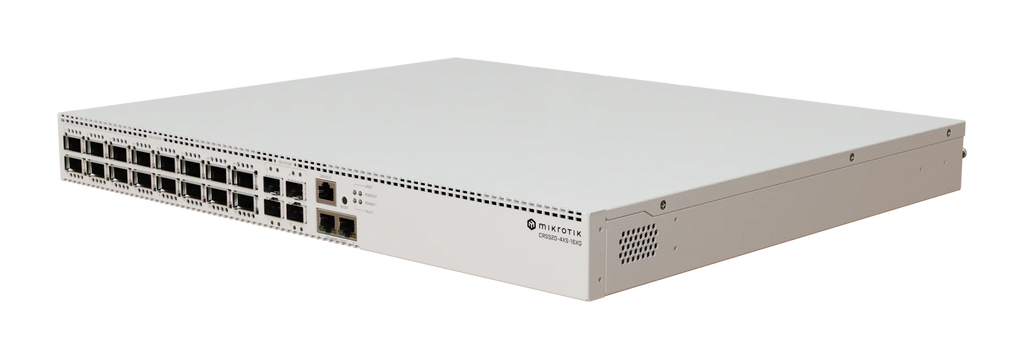

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!
CRS520-4XS-16XQ-RM
  • CRS520-4XS-16XQ-RM
  • CRS520-4XS-16XQ-RM
  • CRS520-4XS-16XQ-RM

Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:

1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;

2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

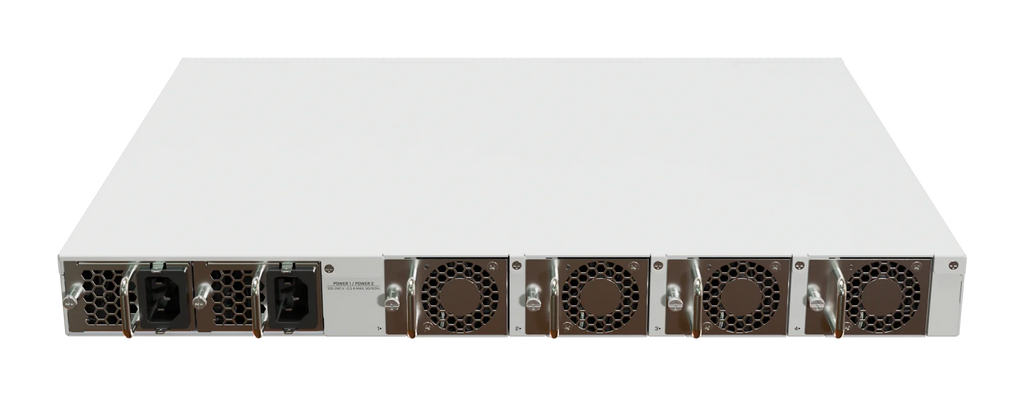

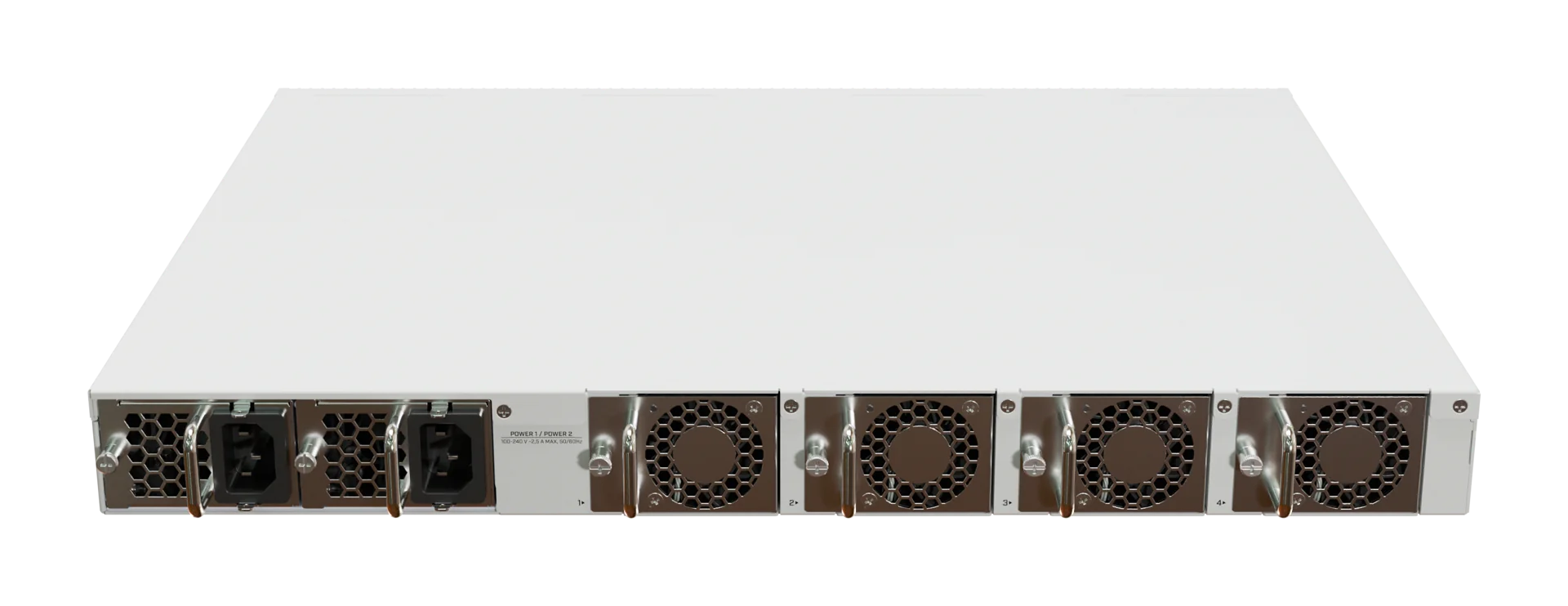

Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.

Specification

Specifications

  • Product codeCRS520-4XS-16XQ-RM
  • Suggested price$2,195.00
  • ArchitectureARM 64bit
  • CPUAL52400
  • CPU core count4
  • CPU nominal frequency2 GHz
  • CPU Threads count4
  • Switch chip model98CX8410
  • RouterOS license5
  • Operating SystemRouterOS v7
  • Size of RAM4 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 50°C

Powering

  • Number of AC inputs2
  • AC input range100-240
  • Number of PSU slots2
  • Frequency (Hz)50-60
  • Max power consumption150 W (220 W with both PSUs)
  • Max power consumption without attachments123 W
  • Cooling type4 fans

Ethernet

  • Number of 1G/2.5G/5G/10G Ethernet ports2 (supported: 10M/100M/1G/10G)

Fiber

  • Number of 25G SFP28 ports4
  • Number of 100G QSFP28 ports16

Peripherals

  • Serial console portRJ45

Other

  • CPU temperature monitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included parts2x IEC cordsRackmount rear support ears (2/2)Cable managment bracketsK-82 fastening setRackmount earsNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
