$196.22 CAD
GPERx6

GPERx6

CSS606-1G-2Gi-3S+OUT
$196.22 CAD
Shipping calculated at checkout.
Out of stock

Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.


GPERx6
  • GPERx6
  • GPERx6
  • GPERx6
  • GPERx6
  • GPERx6
  • GPERx6
  • GPERx6
  • GPERx6

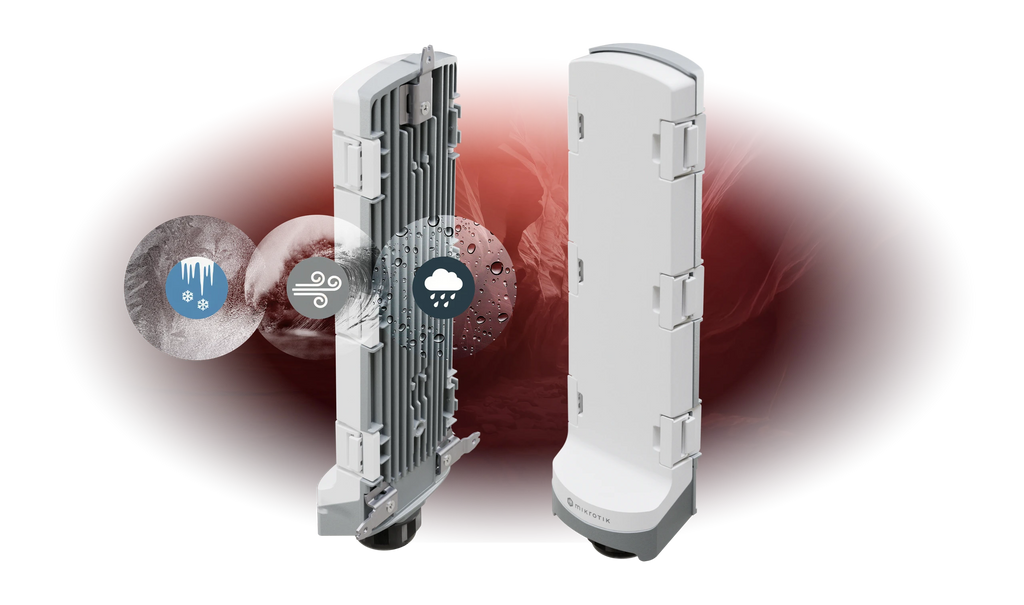

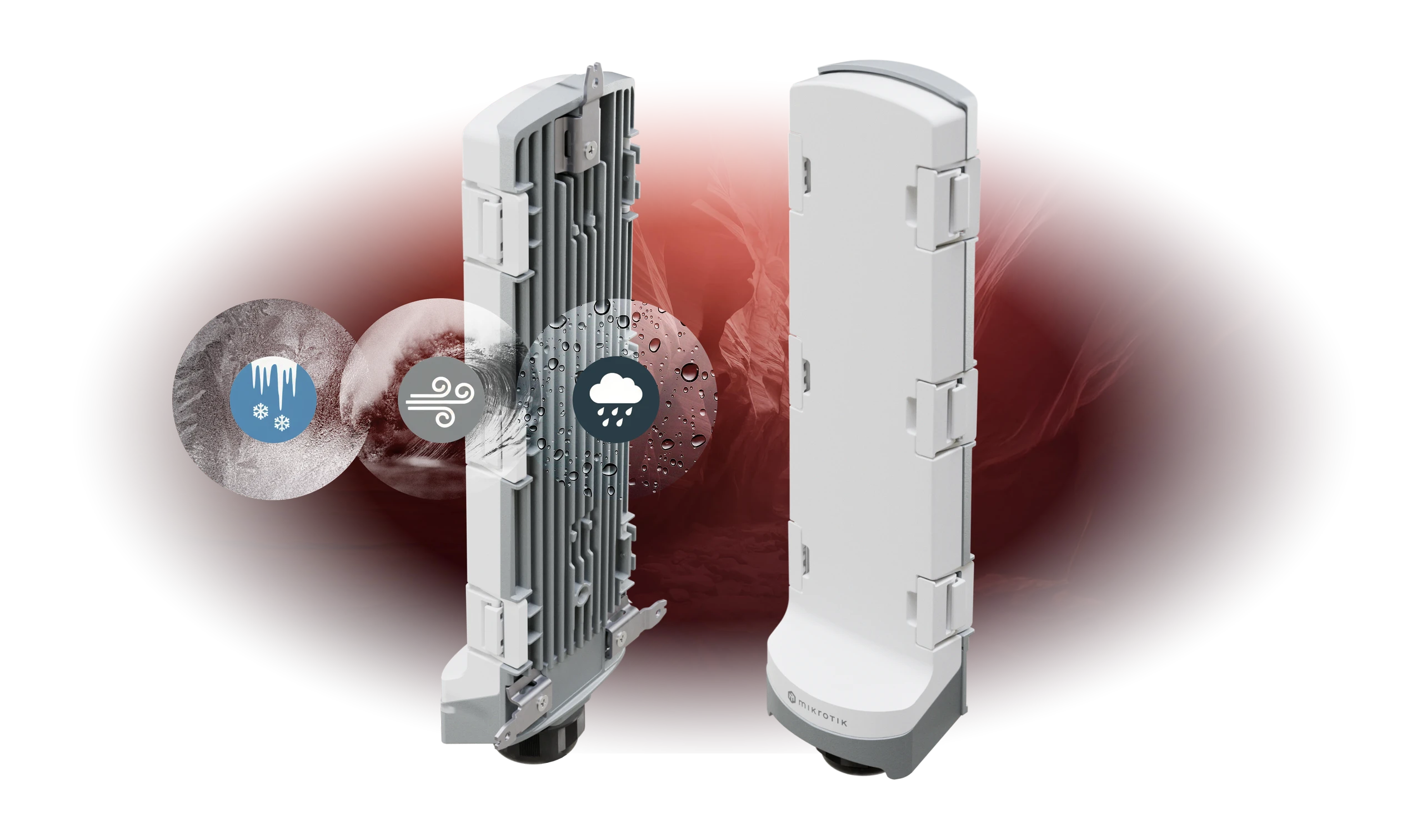

Built for the toughest deployments

The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple

On the surface, it’s straightforward.
But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!

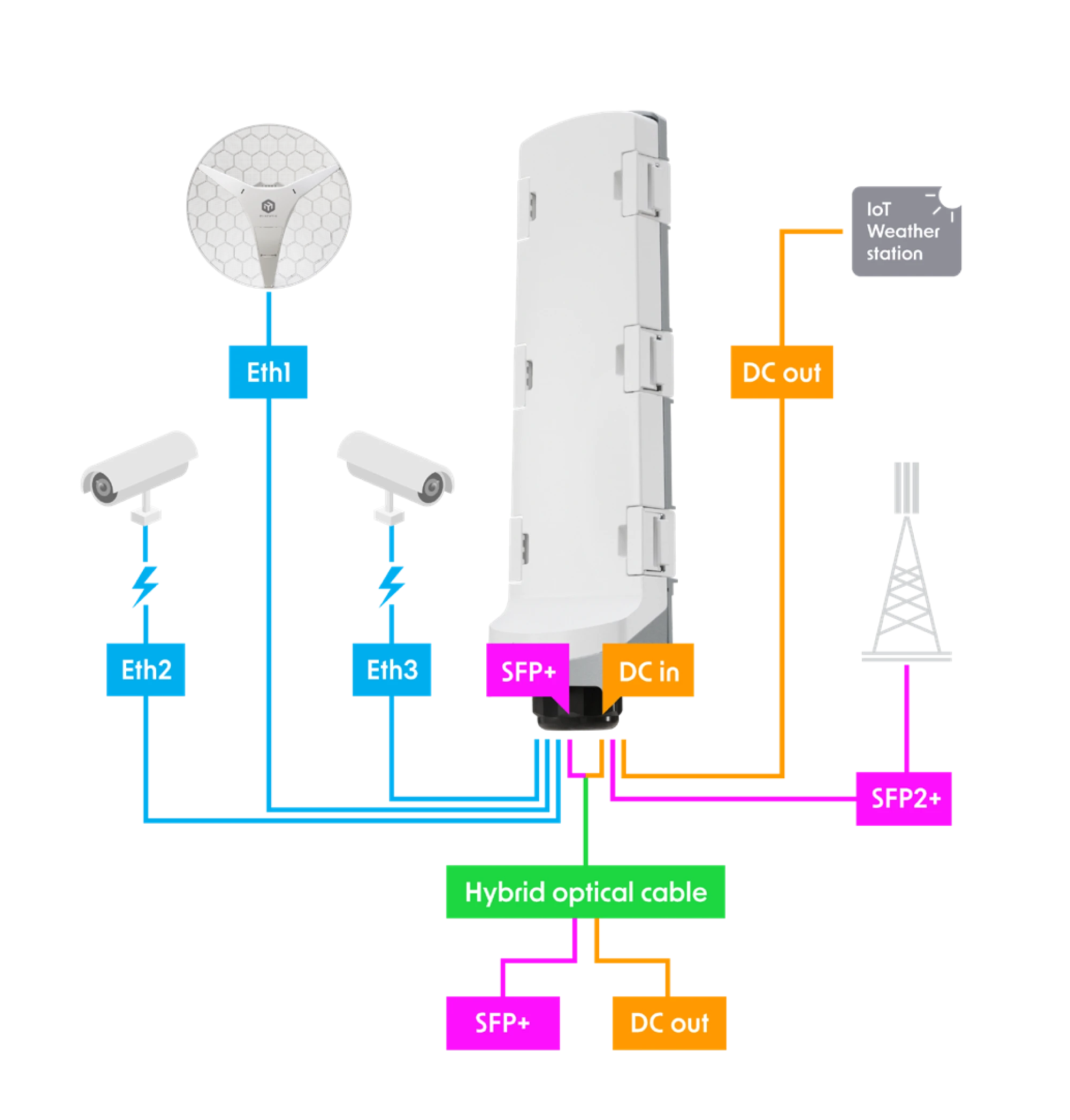

Hybrid cable advantage
With hybrid fiber + copper cables, the GPERx6 becomes a power-and-data lifeline:
  • Fiber strands carry your high-speed uplink;
  • Copper conductors deliver DC power;
  • At the far end, the GPERx6 splits it all:SFP+ uplinks for data;PoE-out for cameras or access points;

Specification

Specifications

  • Product codeCSS606-1G-2Gi-3S+OUT
  • Suggested price$139.00
  • Switch chip model88E6193X
  • Operating SystemSwOS
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-57 V
  • Max power consumption160 W
  • Max power consumption without attachments6 W
  • PoE in802.3 bt
  • Cooling typePassive
  • PoE in input Voltage42-57 V

PoE-out

  • PoE-out portsEther2-Ether3
  • PoE outPassive PoE up to 57V
  • Low voltage PoE-Out current limit1.2 A
  • High voltage PoE-Out current limit0.625 A
  • Max total out (A)2.4 A
  • Total output power150

Ethernet

  • 10/100/1000 Ethernet ports3
  • Number of 1G Ethernet ports with Reverse PoE (PoE-in)1
  • Number of 1G Ethernet ports with PoE-out2

Fiber

  • SFP+ ports3

Other

  • CPU temperature monitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP66
  • Included partsK-93Hose clamp 2NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
