hAP ax S

hAP ax S

$111.52 CAD
hAP ax S

hAP ax S

E62iUGS-2axD5axT
$111.52 CAD
Shipping calculated at checkout.
Out of stock

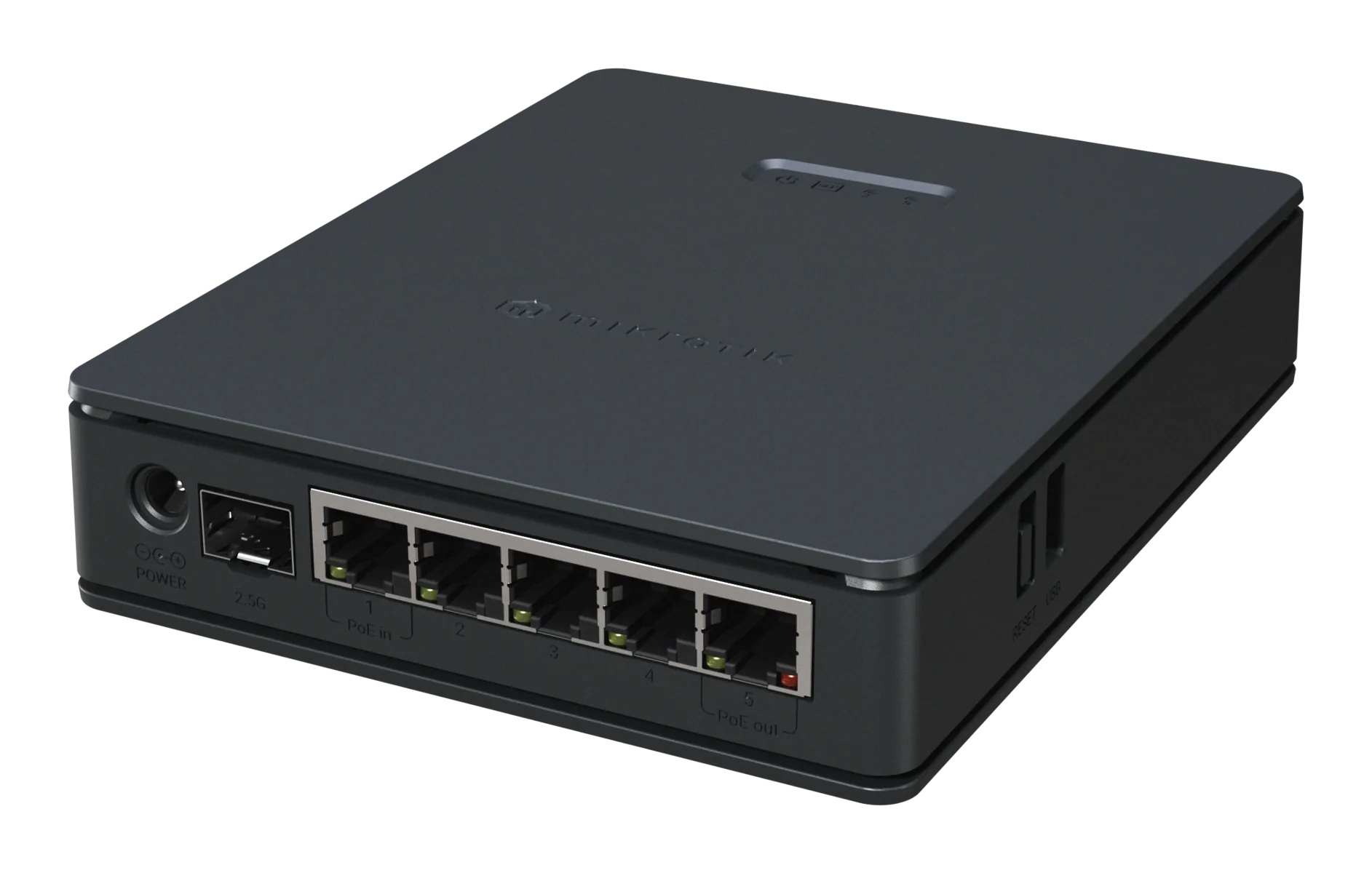

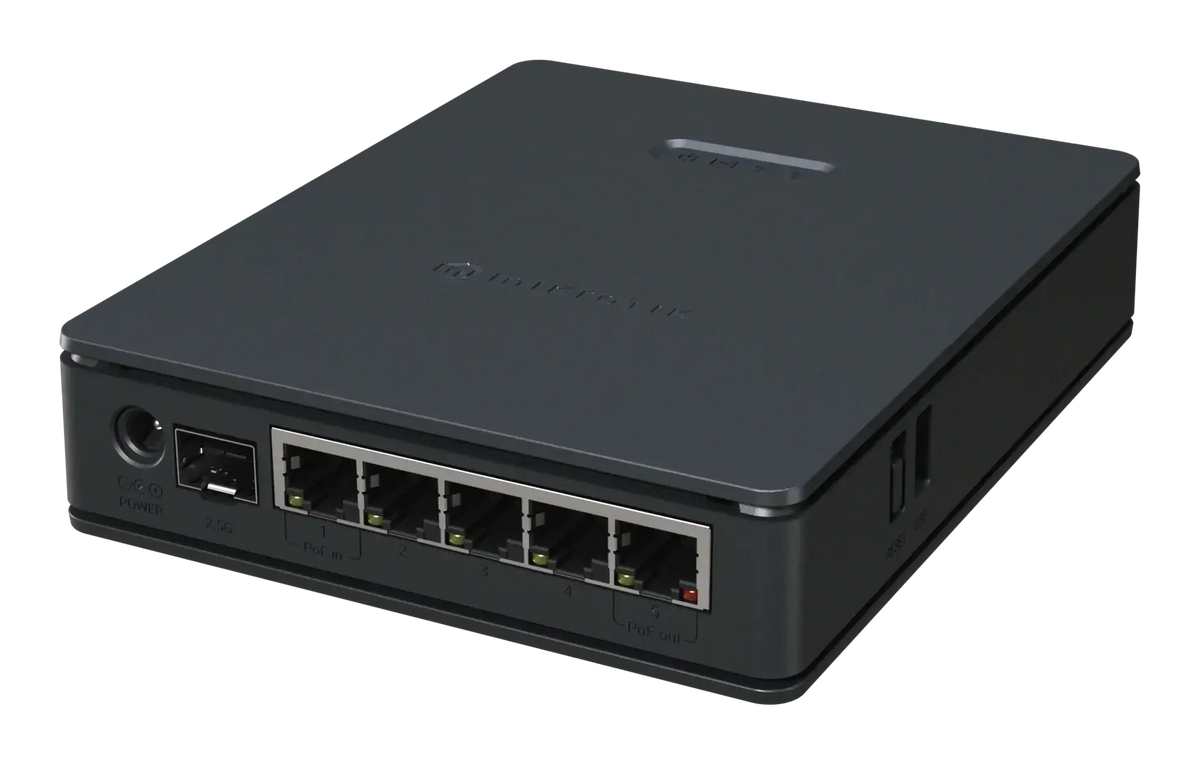

Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.

Wi-Fi 6

Dual-band Wi-Fi 6 access point with triple-chain 5 GHz radio (up to 900 Mbit/s throughput).

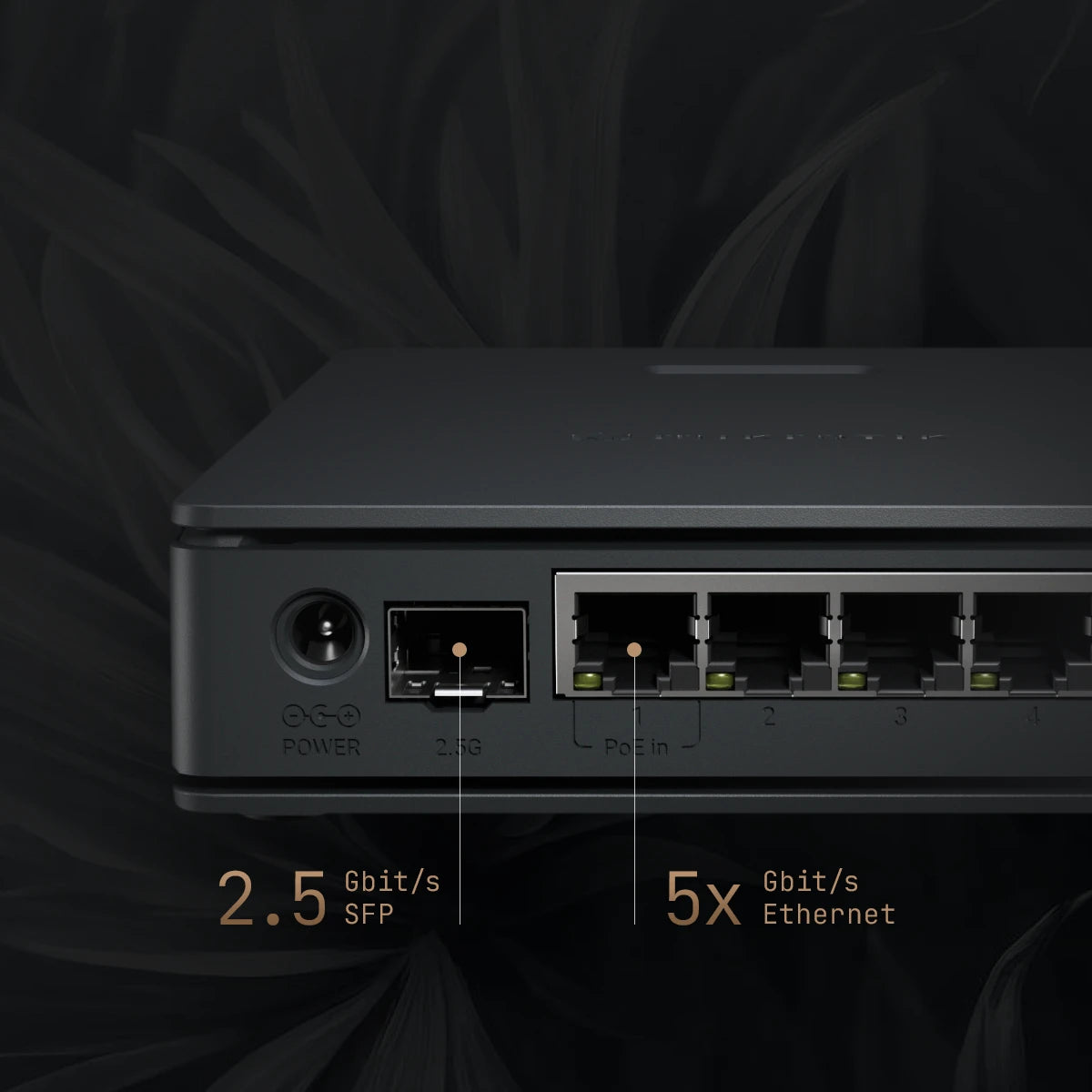

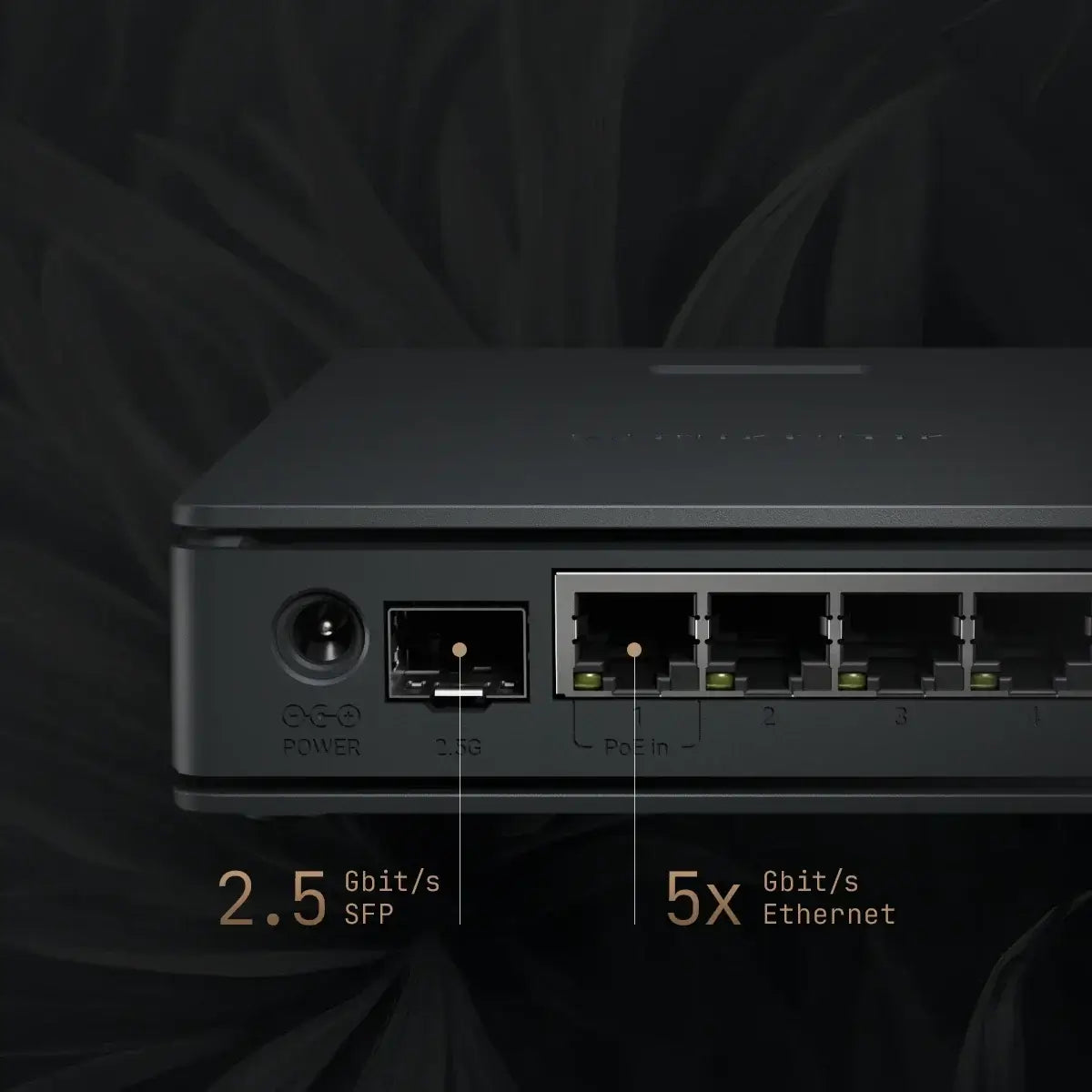

2.5 Gbit + 5 x 1 Gbit

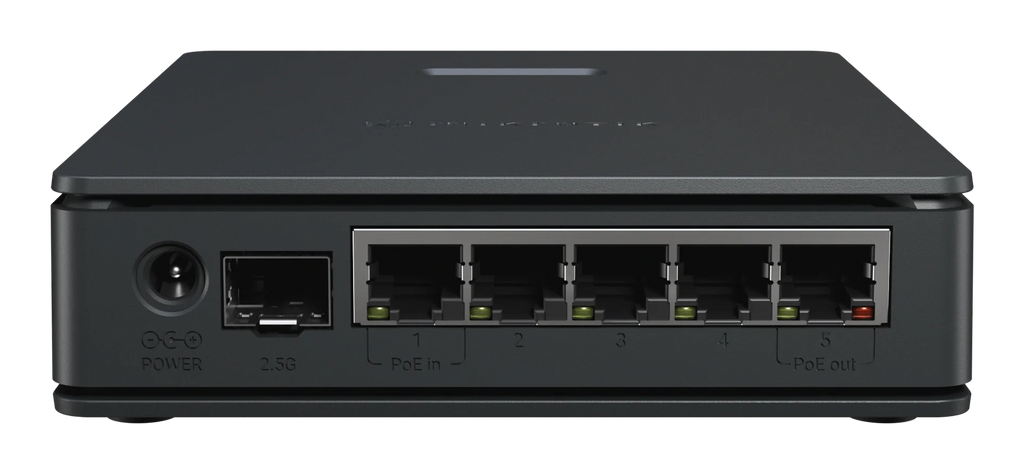

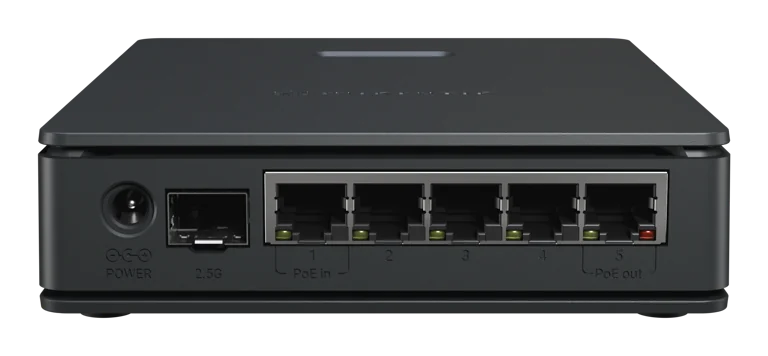

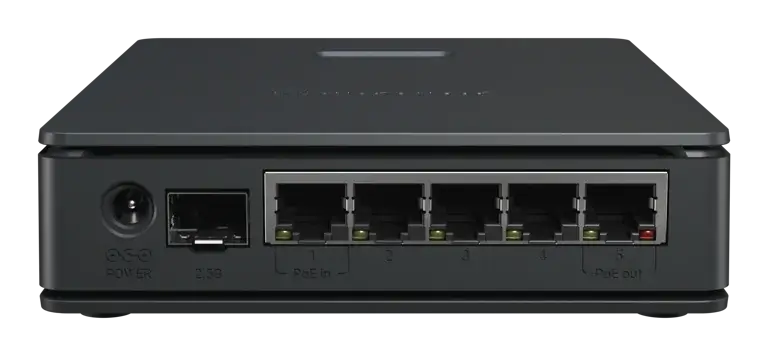

Five Gigabit Ethernet ports, and a 2.5 Gigabit SFP cage. You can connect direct fiber-to-home or link up a high-speed NAS for lightning-fast local access.
hAP ax S
  • hAP ax S
  • hAP ax S
  • hAP ax S
  • hAP ax S
  • hAP ax S
  • hAP ax S
  • hAP ax S

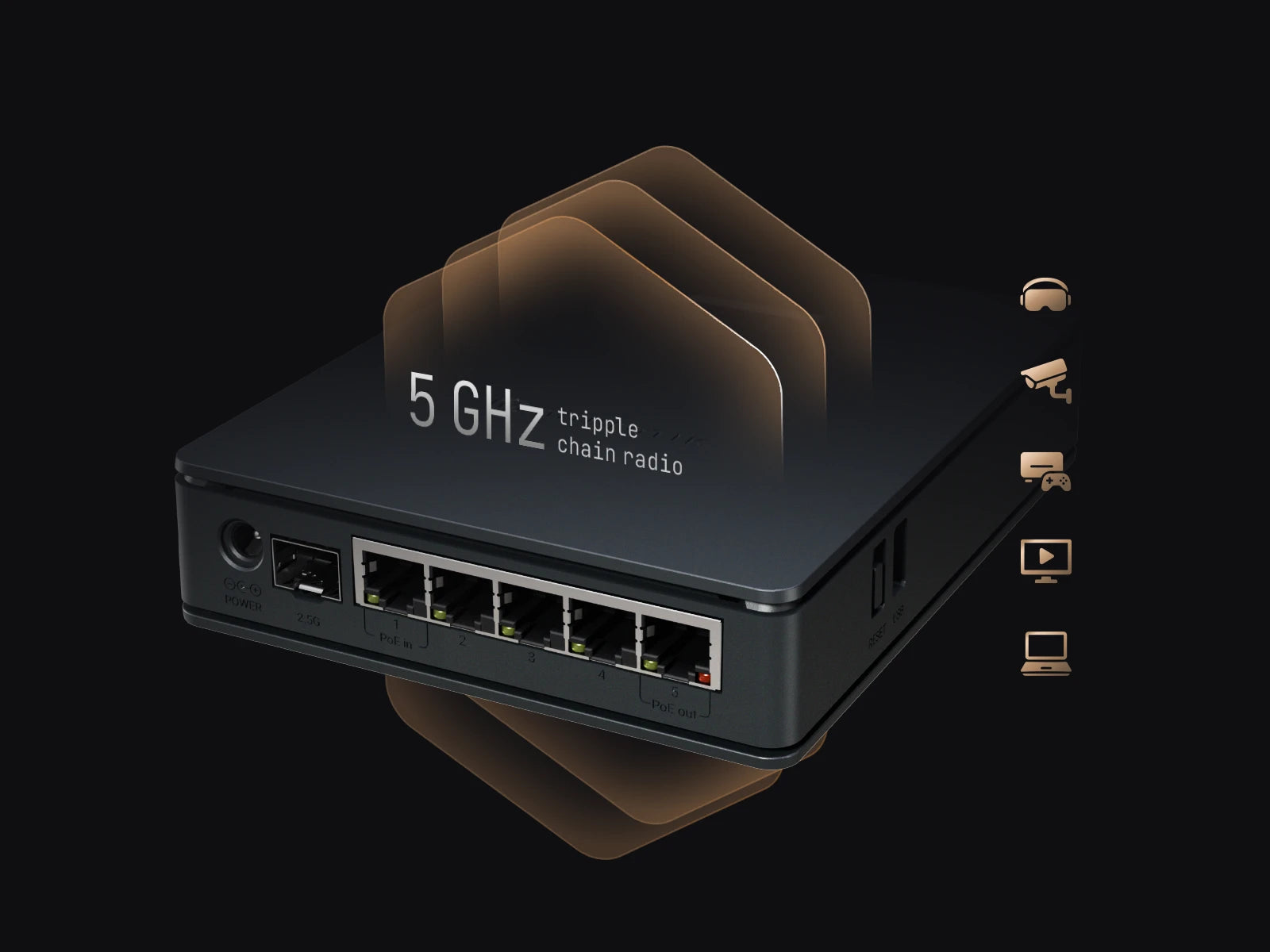

Triple-chain 5 GHz:

the key to stable, gigabit-class Wi-Fi

The new hAP ax S features a triple-chain 5 GHz radio that achieves real-world throughput of around 800–900 Mbit/s. That means smooth streaming, faster downloads, and stable performance across multiple devices – even in crowded environments.

It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VR headsets, offering higher resolution and lower latency without the cables. Unlike single-purpose “gaming” access points, the hAP ax S gives you the full performance, flexibility, and future-proofing of RouterOS v7!

Specification

Specifications

  • Product codeE62iUGS-2axD5axT
  • Suggested price$79.00
  • ArchitectureARM 32bit
  • CPUEN7562CT
  • CPU core count2
  • CPU nominal frequency950 MHz
  • CPU Threads count2
  • Switch chip modelEN7523
  • RouterOS license4
  • Operating SystemRouterOS v7
  • Size of RAM512 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate574 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n/ax
  • Antenna gain dBi for 2.4 GHz5.5
  • Wireless 2.4 GHz chip modelMT7916
  • Wireless 2.4 GHz generationWi-Fi 6
  • Wireless 5 GHz Max data rate2400 Mbit/s
  • Wireless 5 GHz Number of chains3
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz6.5
  • Wireless 5 GHz chip modelMT7976
  • Wireless 5 GHz generationWi-Fi 6
  • WiFi speedAX3000

Ethernet

  • 10/100/1000 Ethernet ports5
  • Number of 1G Ethernet ports with PoE-out1

Fiber

  • SFP ports1 (2.5G supported)

Peripherals

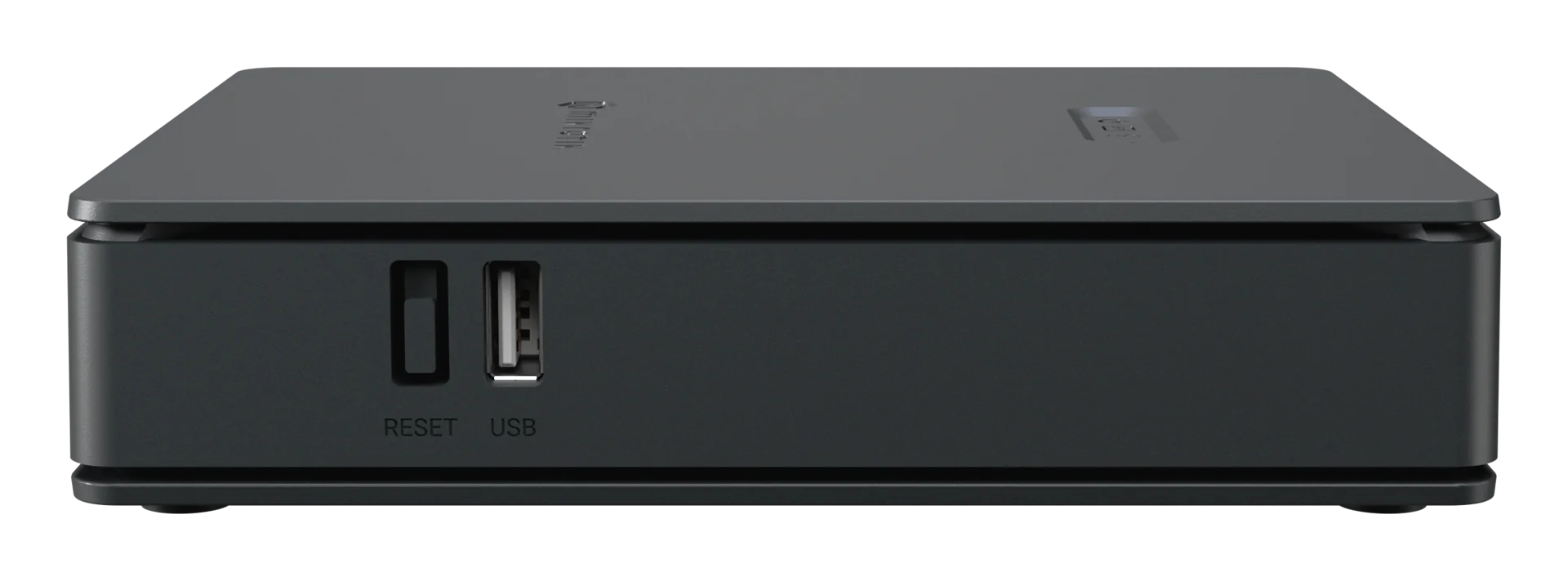

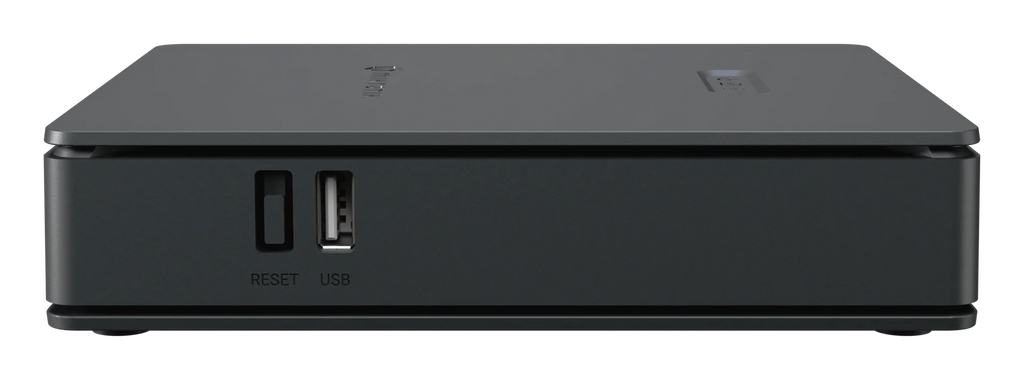

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Powering

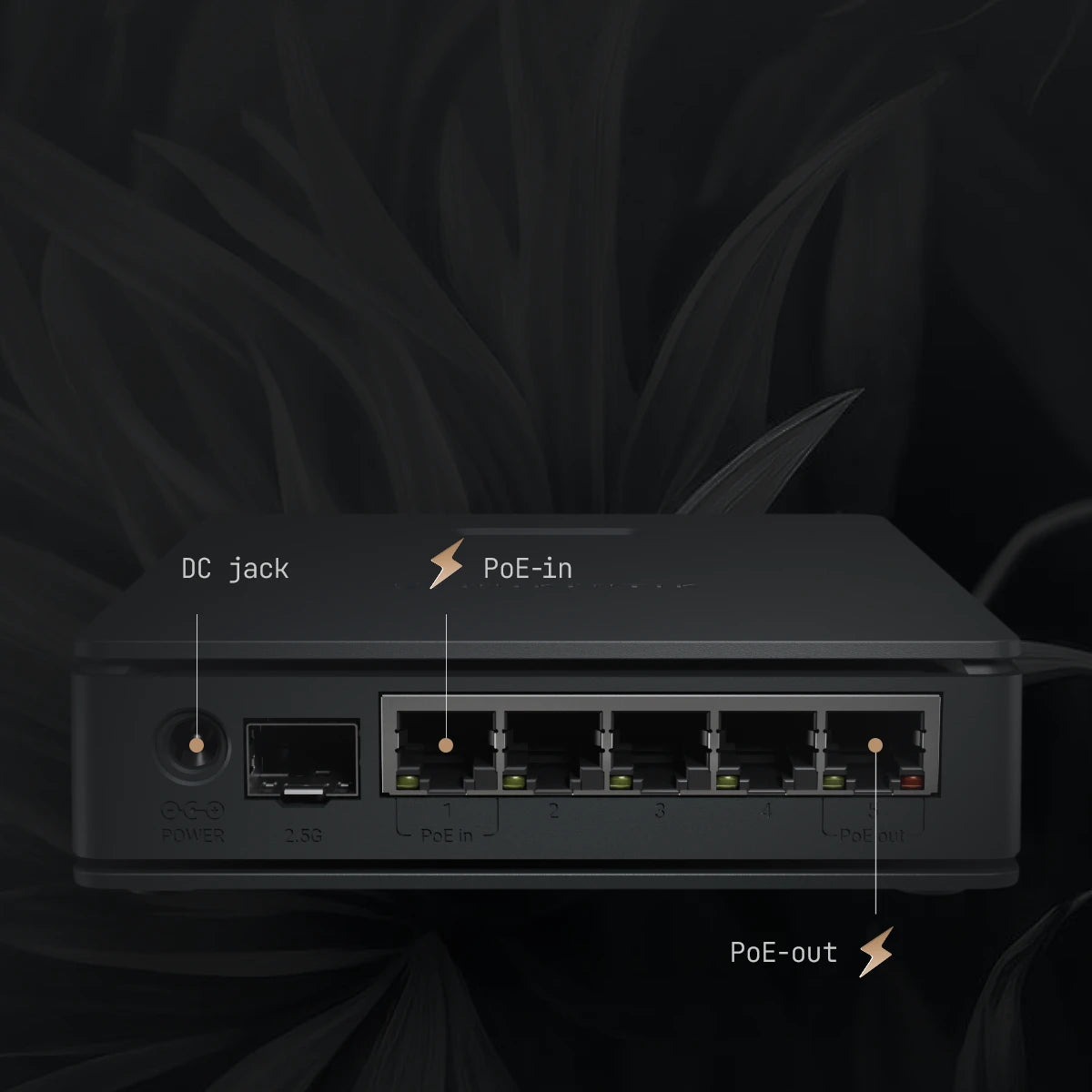

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-28 V
  • Max power consumption34 W
  • Max power consumption without attachments11 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-28 V

PoE-out

  • PoE-out portsEther5
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit0.6 A
  • Max total out (A)0.6 A
  • Total output current0.6
  • Total output power16.8

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP20

Other

  • CPU temperature monitorYes

Included parts24V 1.5A power adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
