A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks.

Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!*

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
mANTBox ax 15s
  • mANTBox ax 15s
  • mANTBox ax 15s
  • mANTBox ax 15s

Upgrading your setup to Wi-Fi 6 offers multiple benefits:

Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks

Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.

Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

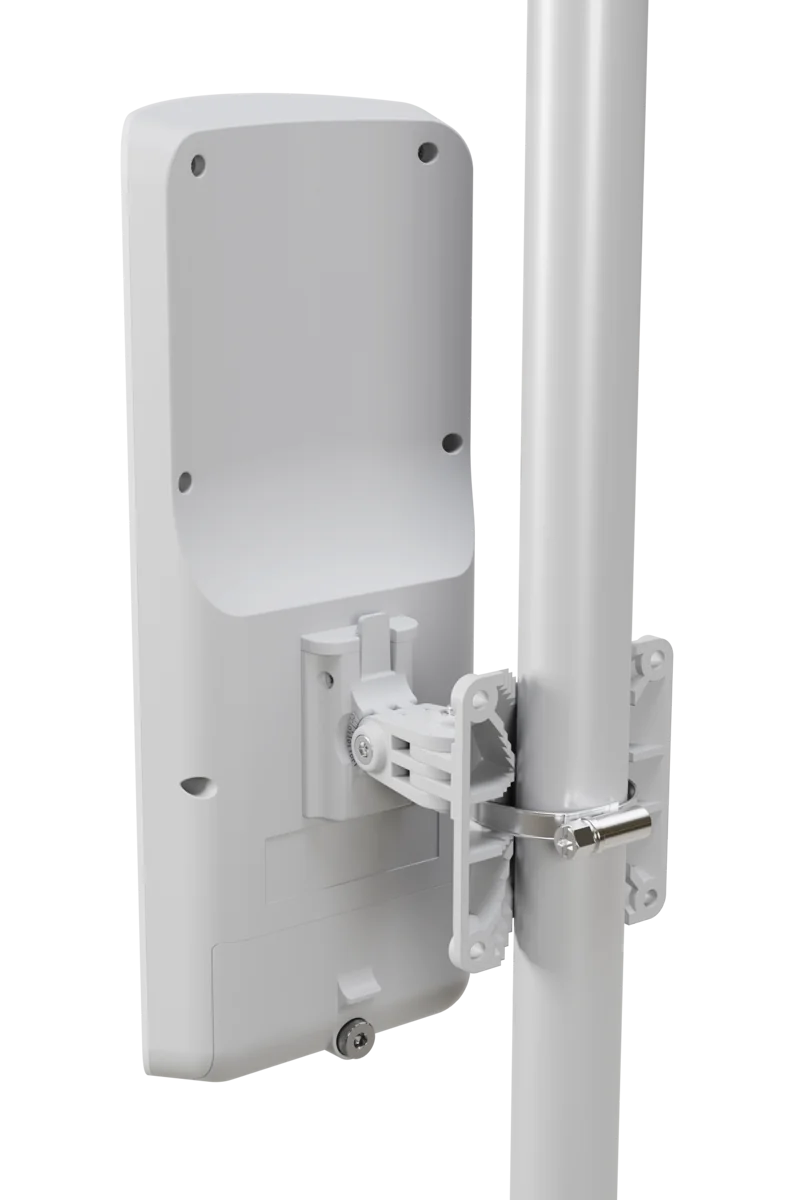

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.

*It's important to note that while longer links are feasible, their reliability may vary.

Specification

Specifications

  • Product codeL22UGS-5HaxD2HaxD-15S
  • Suggested price$179.00
  • ArchitectureARM 32bit
  • CPUIPQ-5010
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • RouterOS license4
  • Operating SystemRouterOS v7
  • Size of RAM256 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-28 V
  • Max power consumption21 W
  • Max power consumption without attachments11 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-28 V

Wireless specifications

  • Wireless 2.4 GHz Max data rate574 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n/ax
  • Antenna gain dBi for 2.4 GHz12
  • Wireless 2.4 GHz chip modelIPQ-5010
  • Wireless 2.4 GHz generationWi-Fi 6
  • Wireless 5 GHz Max data rate2400 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz15
  • Wireless 5 GHz chip modelQCN-6102
  • Wireless 5 GHz generationWi-Fi 6

Ethernet

  • 10/100/1000 Ethernet ports1

Fiber

  • SFP ports1 (2.5G supported)

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1.5

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP55

Included parts24V 1.2A power adapterGigabit PoE injectorHose clamp 1QMPK-41 fastening setNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
