mAP lite

mAP lite

$42.35 CAD
mAP lite

mAP lite

RBmAPL-2nD
$42.35 CAD
Shipping calculated at checkout.
Out of stock

Tiny size 2.4GHz Dual Chain access point with a 650MHz CPU, 64MB RAM and one Ethernet.

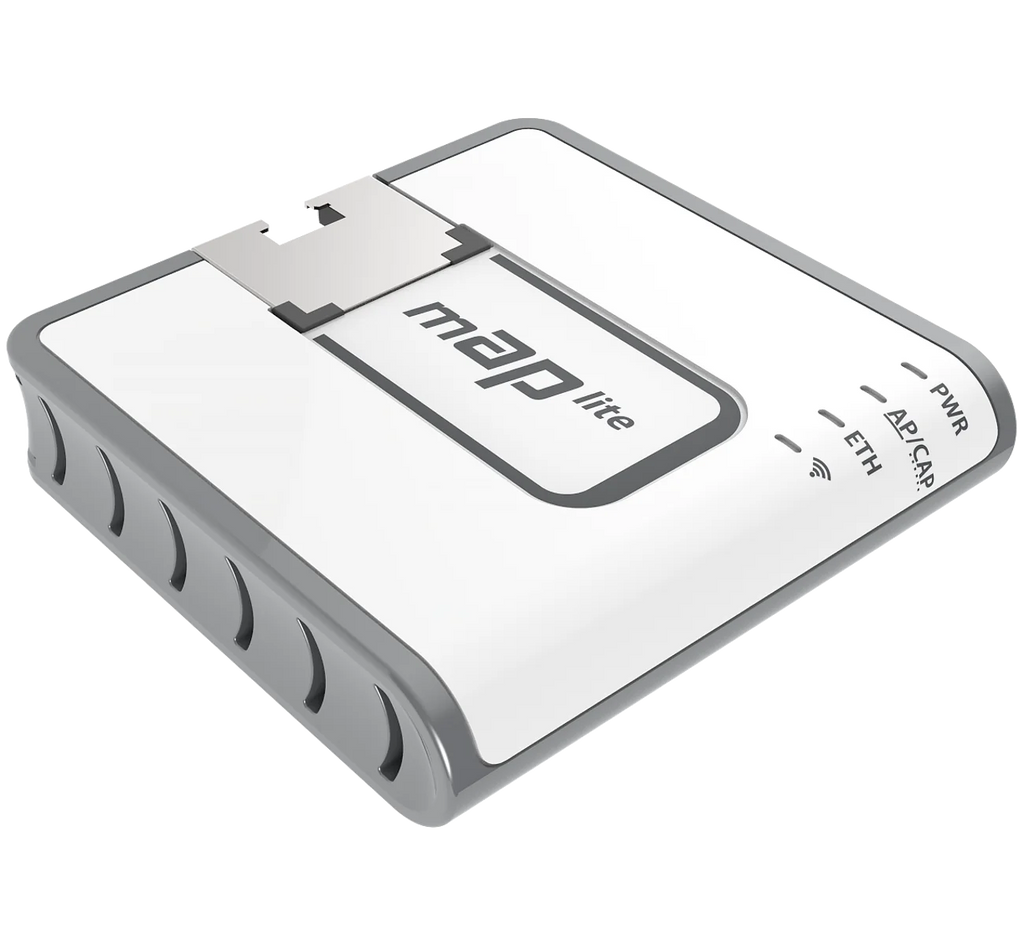

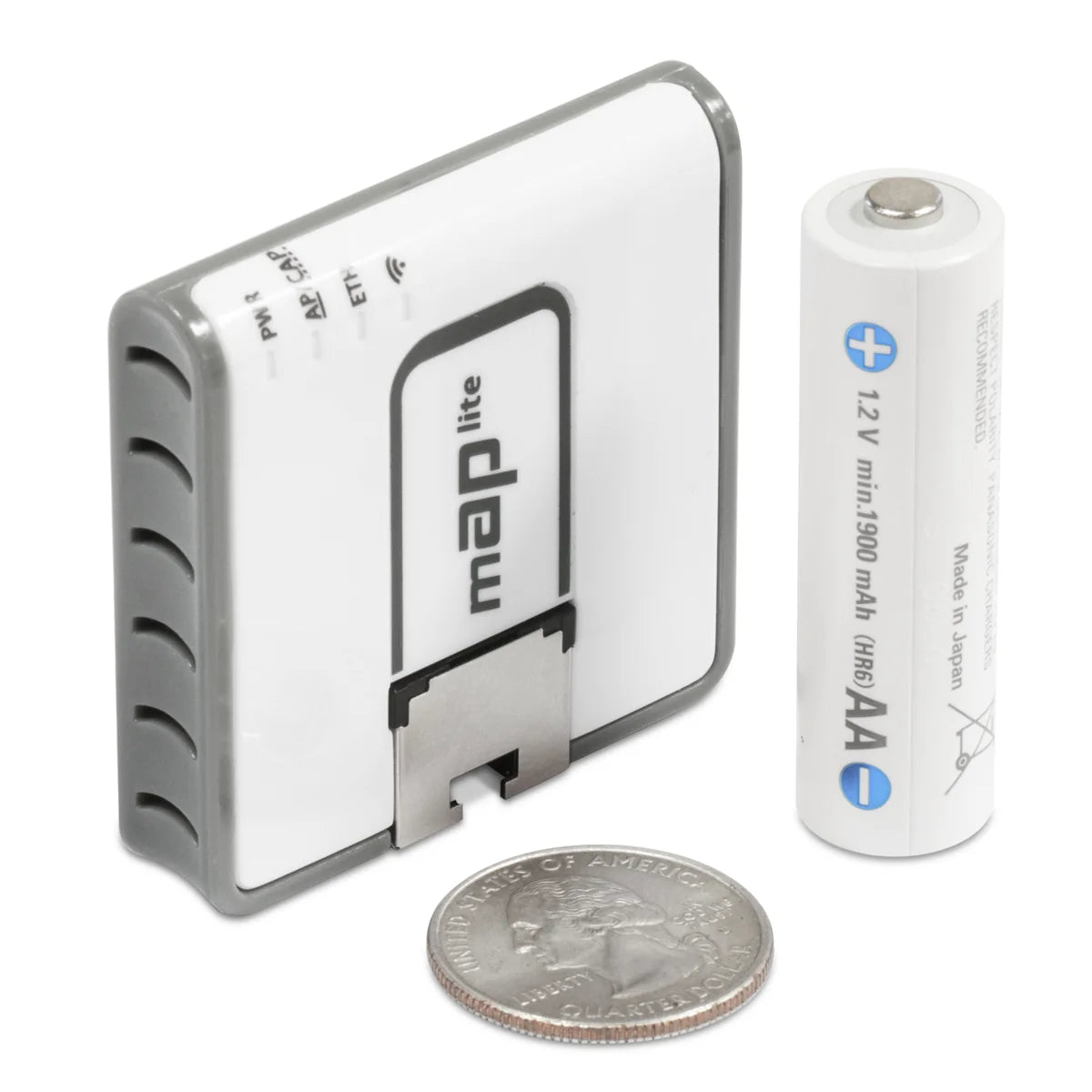

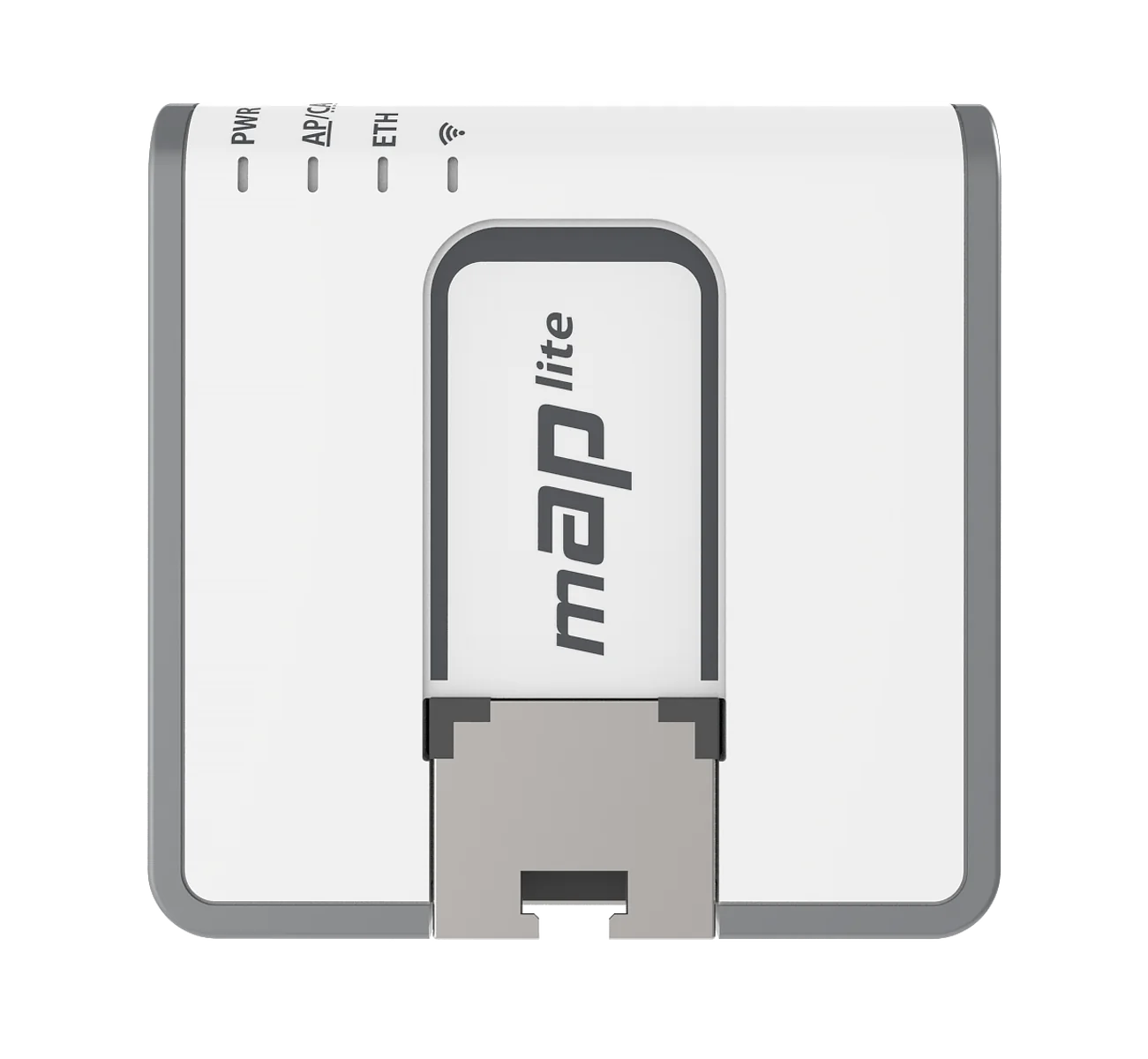

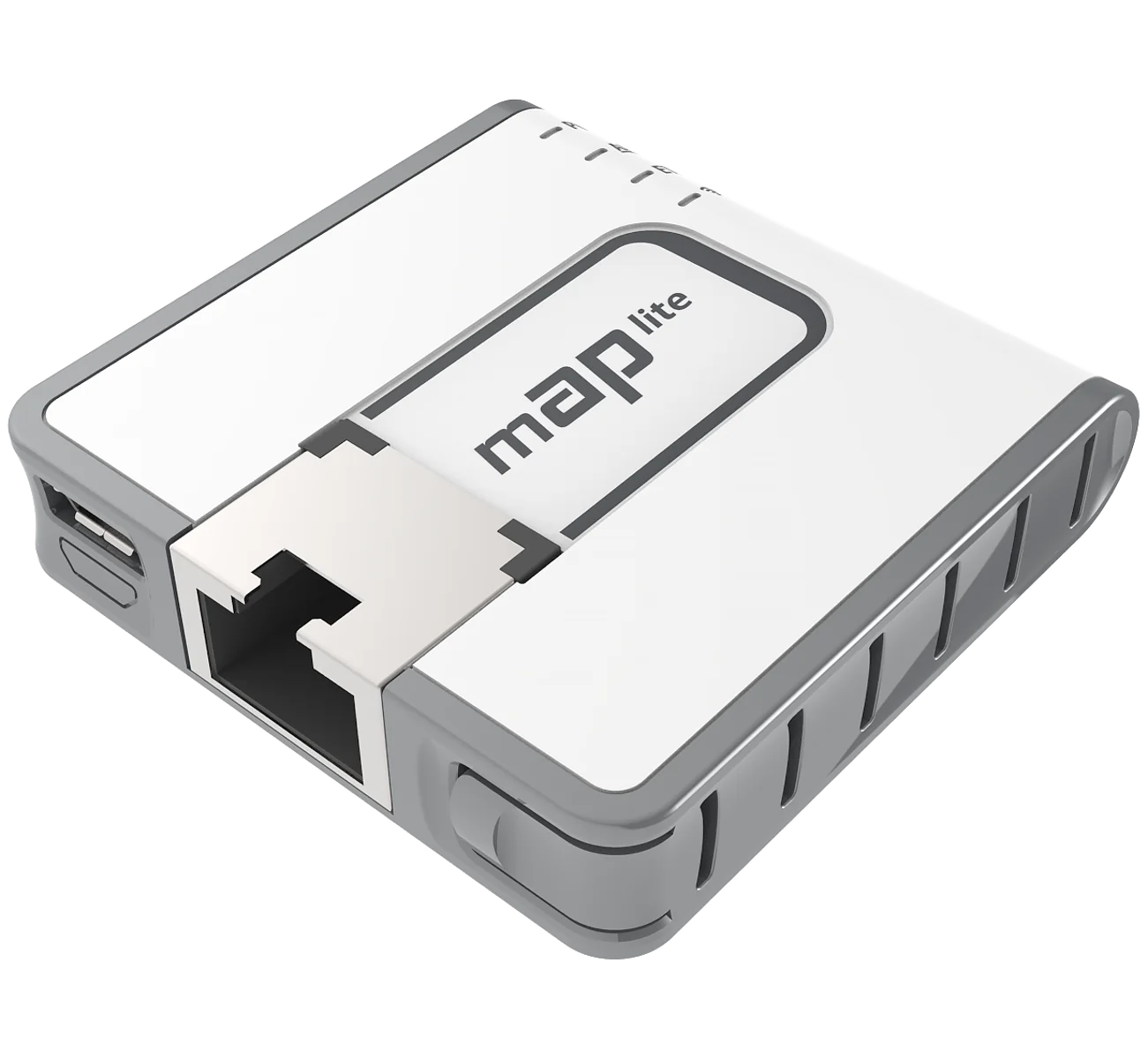

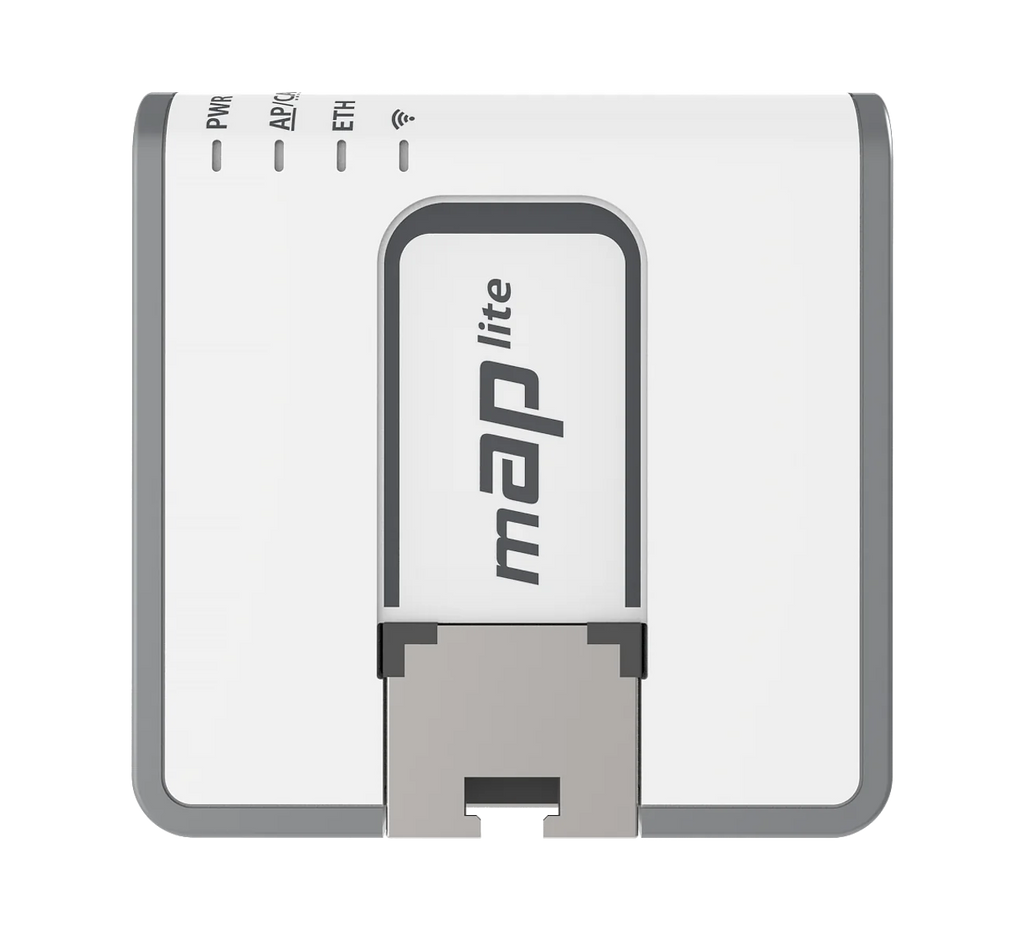

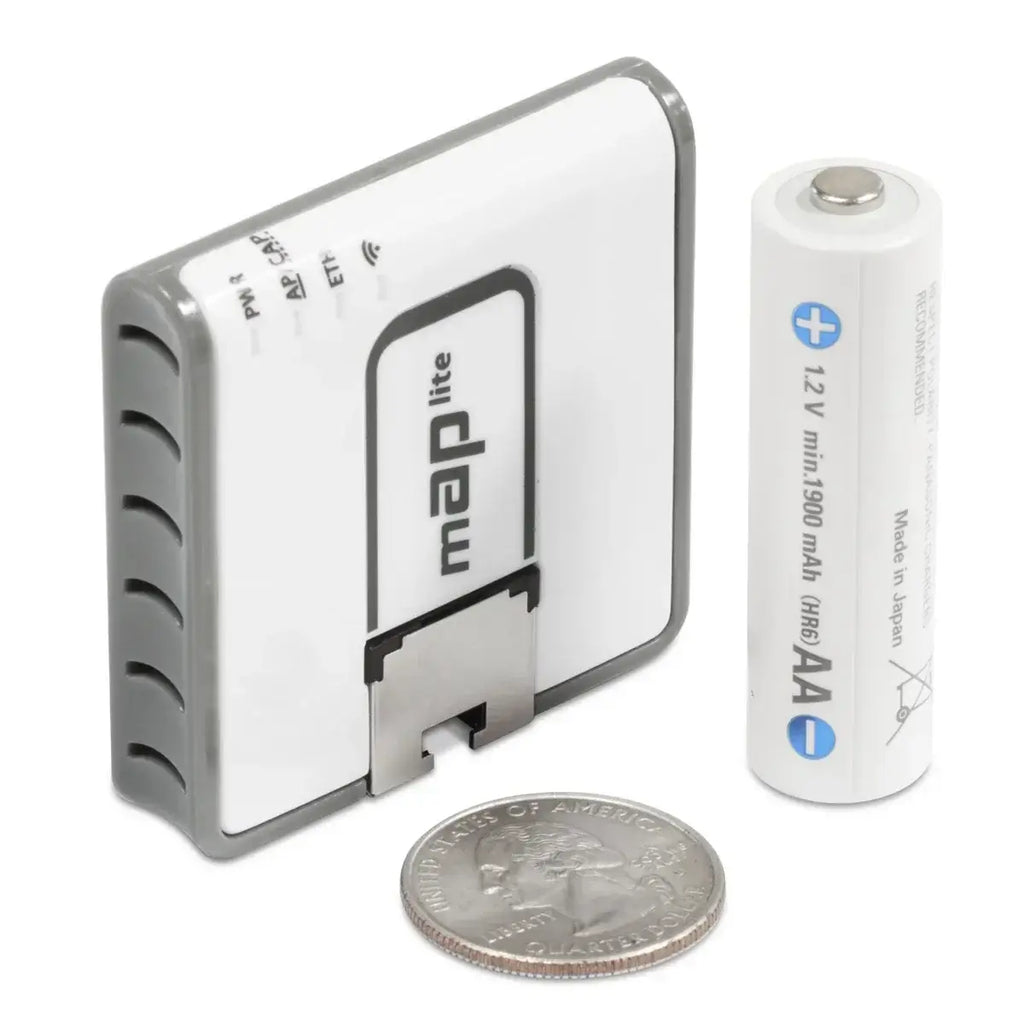

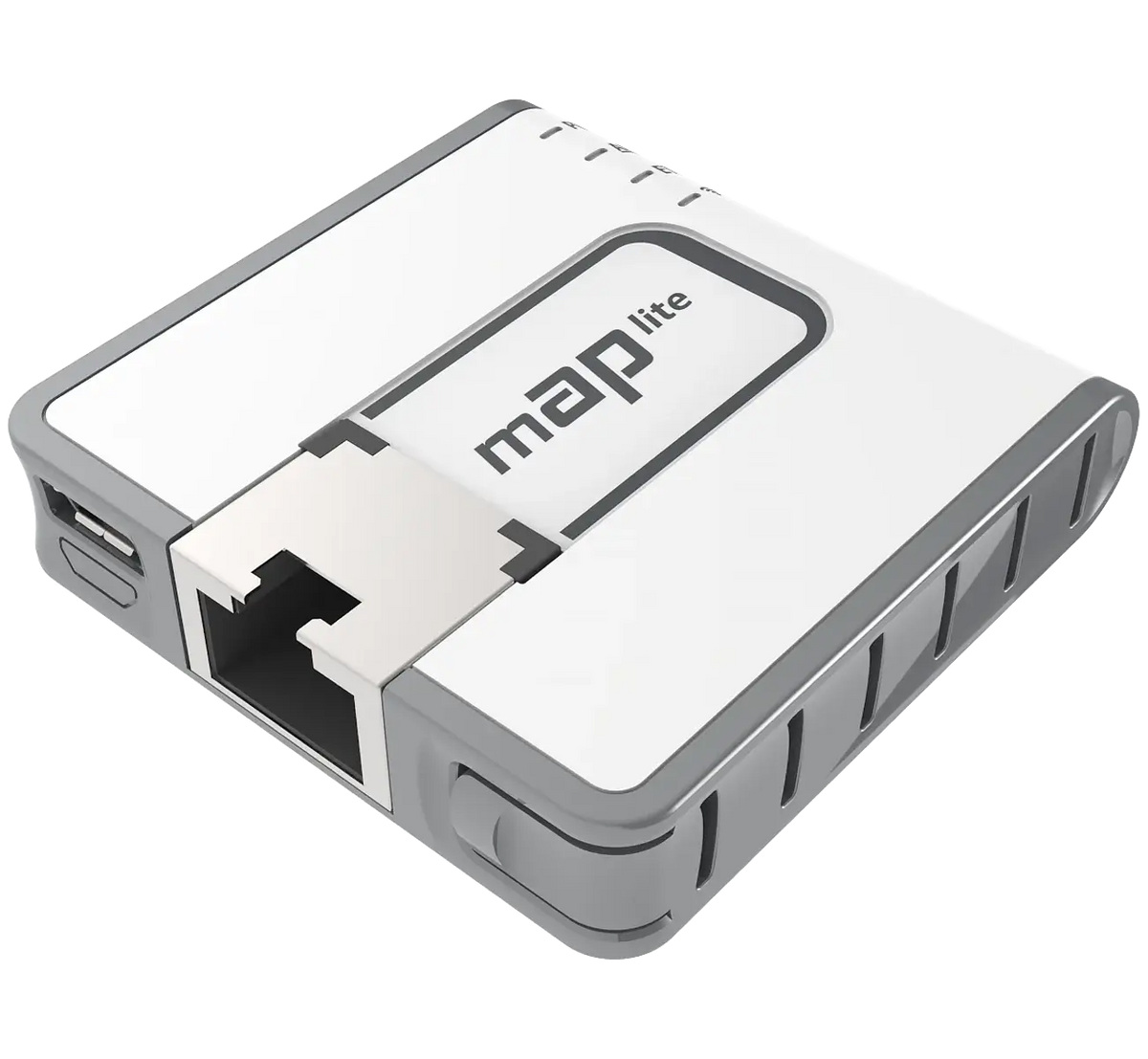

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

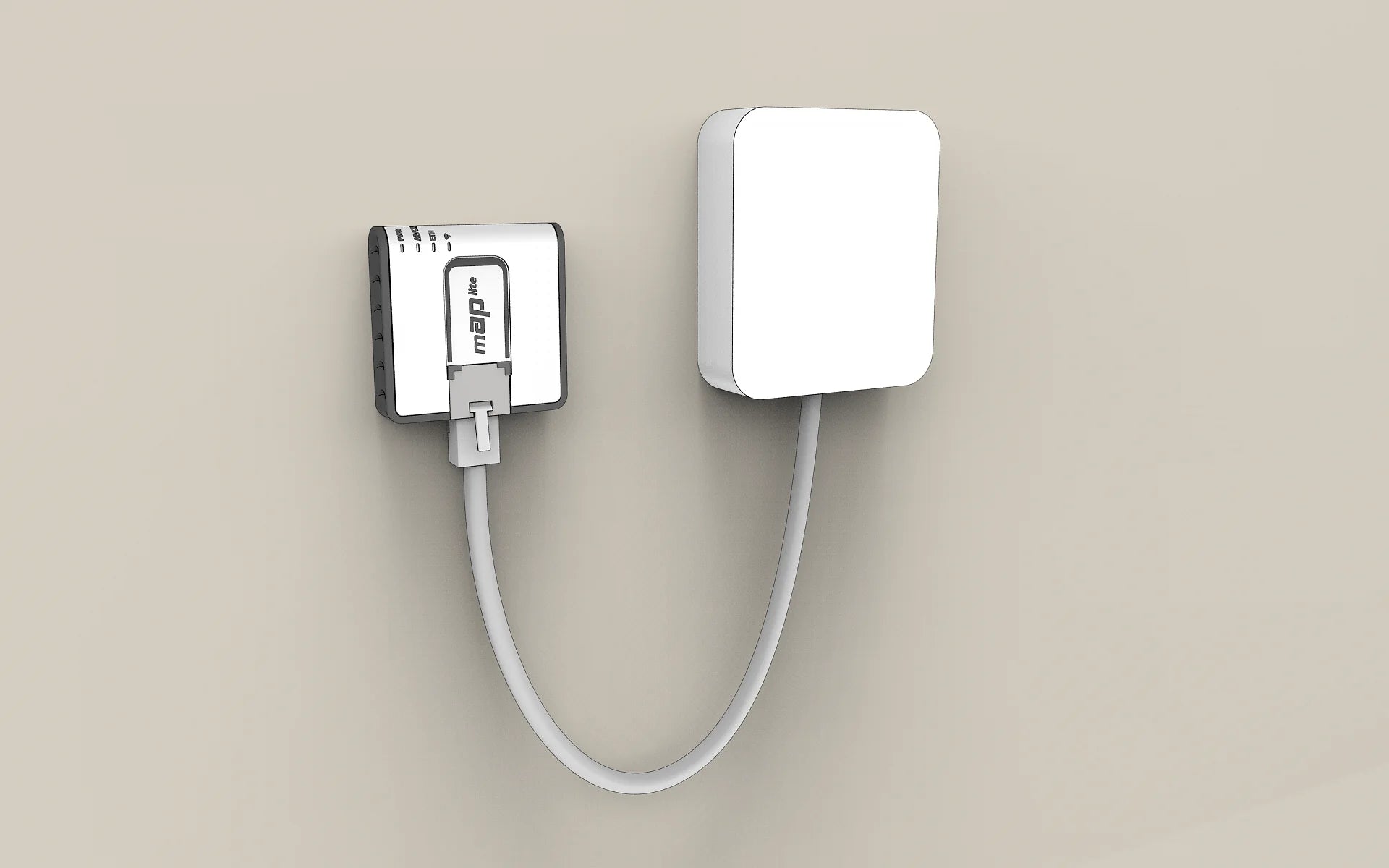

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

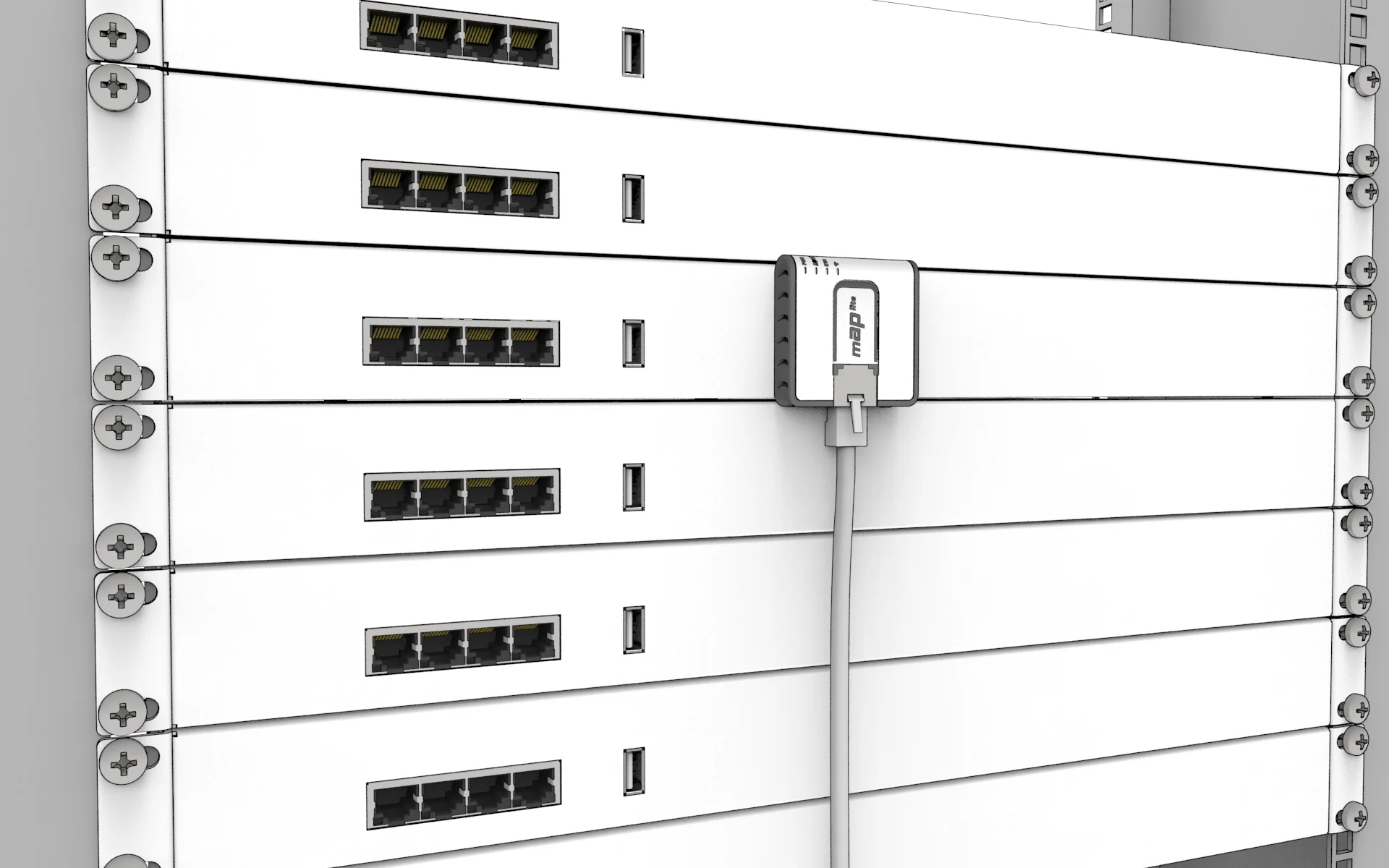

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
mAP lite
  • mAP lite
  • mAP lite
  • mAP lite
  • mAP lite
  • mAP lite
  • mAP lite
  • mAP lite
  • mAP lite
  • mAP lite

Specification

Specifications

  • Product codeRBmAPL-2nD
  • Suggested price$30.00
  • ArchitectureMIPSBE
  • CPUQCA9533
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Dimensions48x49x11mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-30°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz1.5
  • Wireless 2.4 GHz chip modelQCA9533
  • Wireless 2.4 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Powering

  • MicroUSB input Voltage5 V
  • Number of DC inputs2 (PoE-IN, MicroUSB)
  • Max power consumption3.5 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage10-60 V

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP20

Included parts5V 1A power adapterK-44 mount kitNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
