Dual-Chain 2.4GHz micro AP, 650MHz CPU, 64MB RAM, 2xEthernet, PoE out.

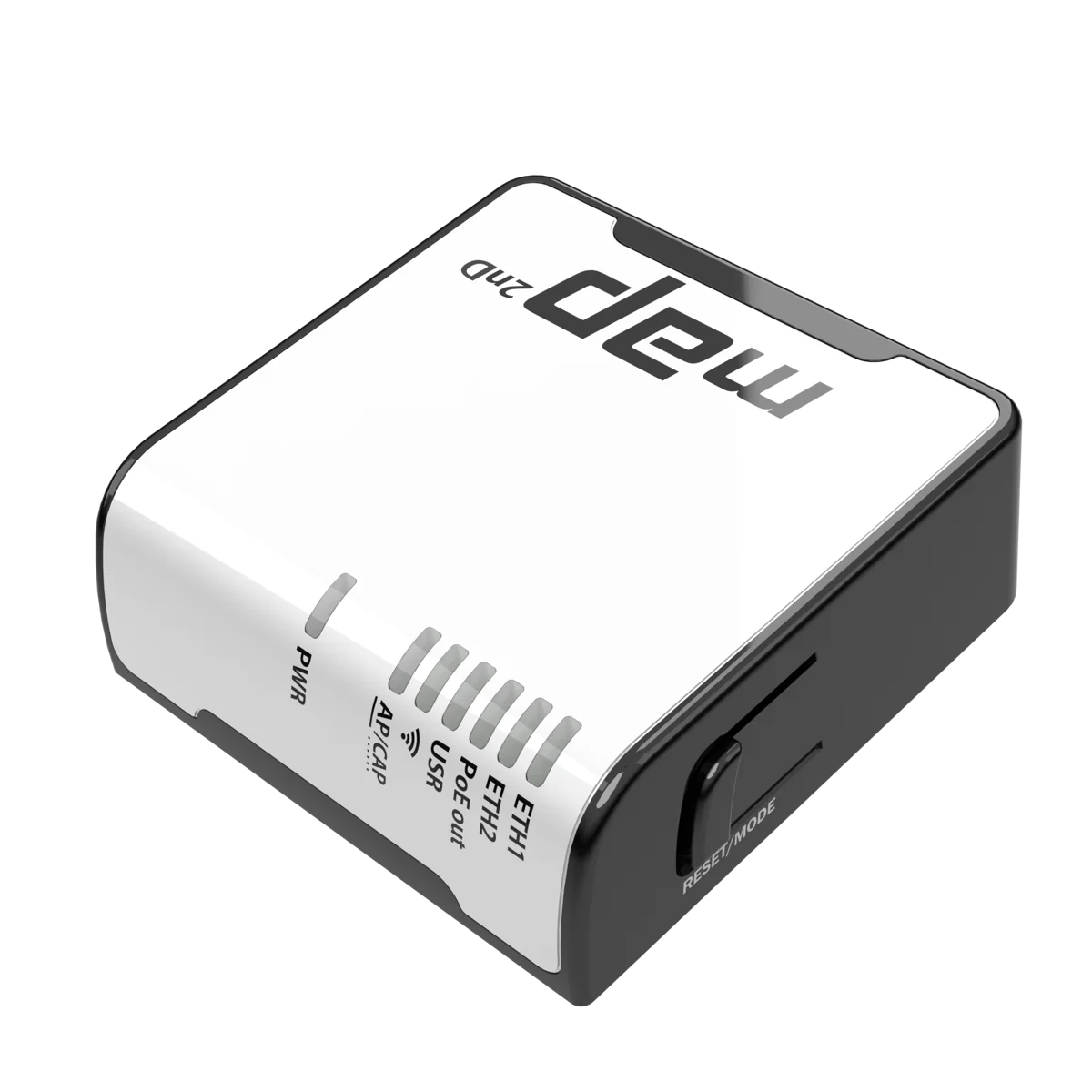

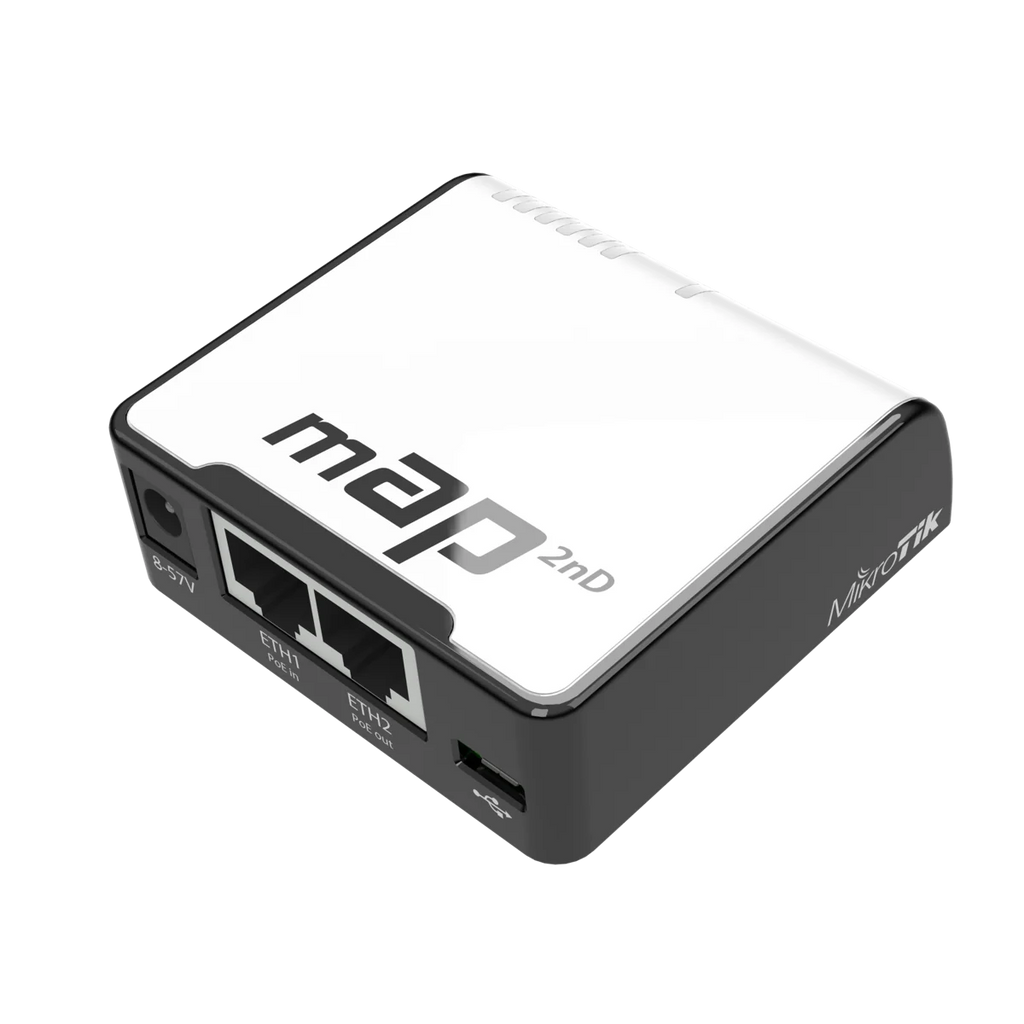

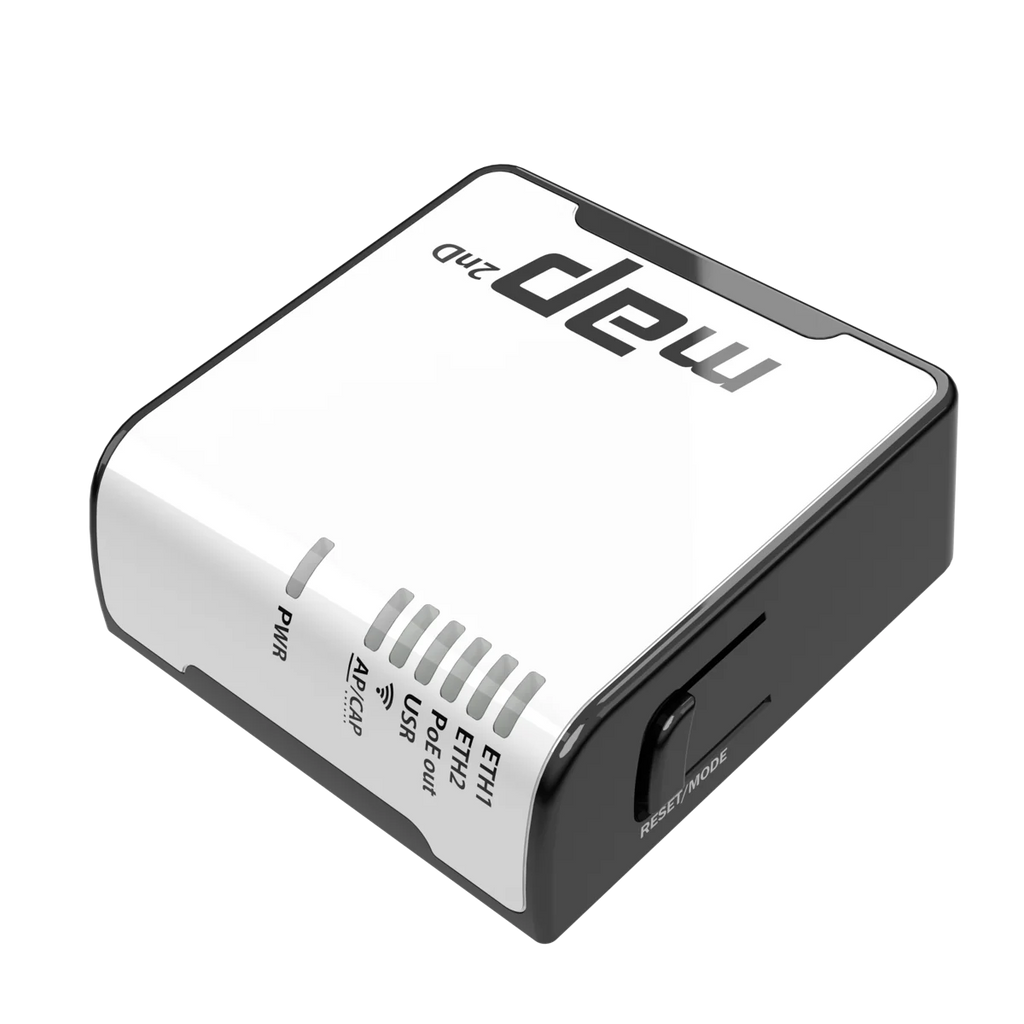

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.


mAP
  • mAP
  • mAP

Specification

Specifications

  • Product codeRBmAP2nD
  • Suggested price$45.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip modelQCA9531-BL3A-R
  • Dimensions68x68x19mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-20°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz1.2
  • Wireless 2.4 GHz chip modelQCA9531
  • Wireless 2.4 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports2

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typemicroUSB type AB
  • Max USB current (A)1

Powering

  • MicroUSB input Voltage5 V
  • Number of DC inputs3 (DC jack, PoE-IN, MicroUSB)
  • DC jack input Voltage8-57 V
  • Max power consumption5 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage12-57 V

PoE-out

  • PoE-out portsEther2
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit0.5 A
  • Max total out (A)0.5 A

Certification & Approvals

  • CertificationFCC, IC

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes

Included partsMounting kit (K-33)24V 0.8A power adapterUSB OTG cableNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
