netPower 15FR

netPower 15FR

$238.57 CAD
netPower 15FR

netPower 15FR

CRS318-1Fi-15Fr-2S-OUT
$238.57 CAD
Shipping calculated at checkout.
Out of stock

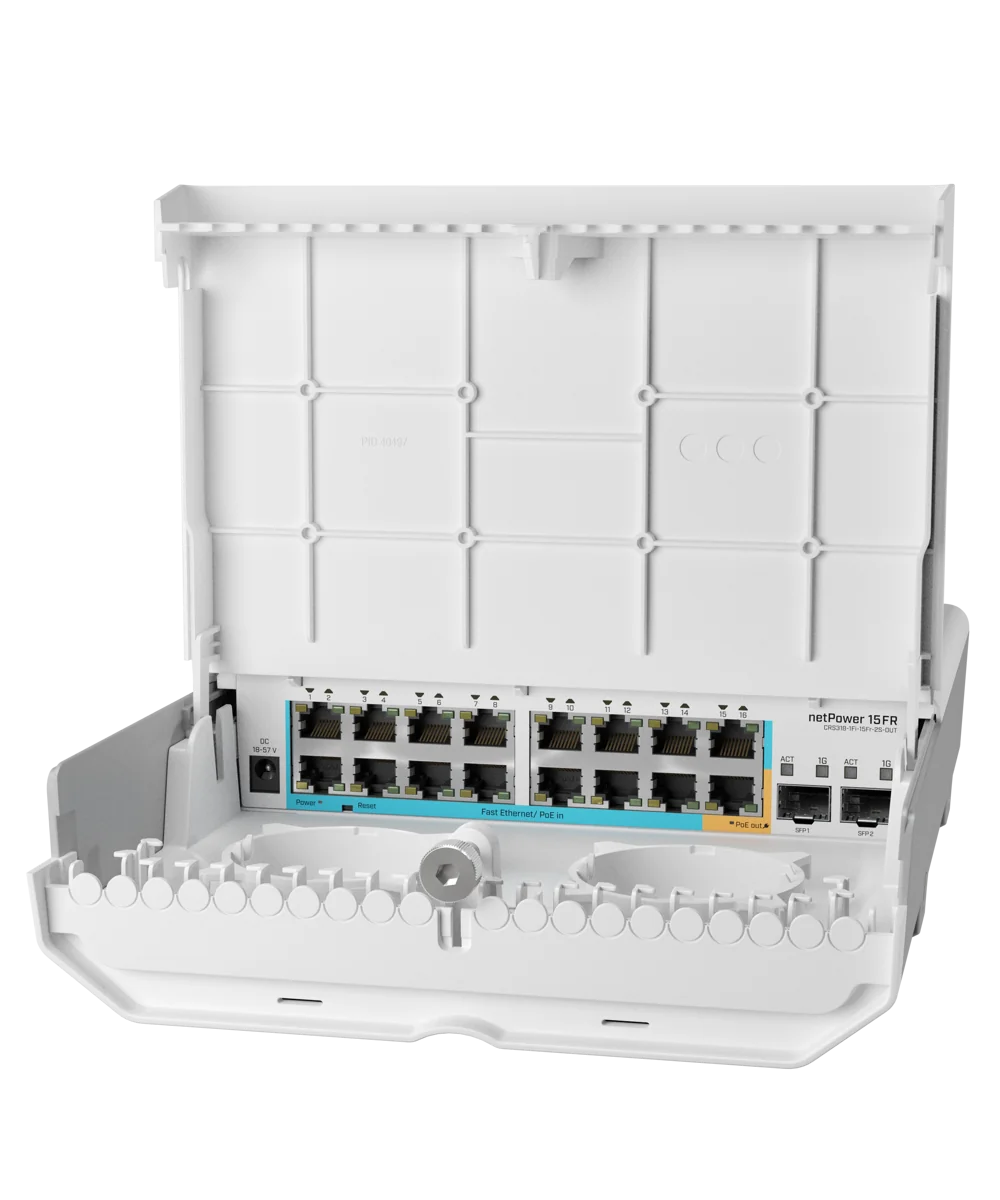

An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.
netPower 15FR
  • netPower 15FR
  • netPower 15FR
  • netPower 15FR
  • netPower 15FR

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

The power supply is NOT included with the product- must be purchased separately.

Specifications

  • Product codeCRS318-1Fi-15Fr-2S-OUT
  • Suggested price$169.00
  • ArchitectureARM 32bit
  • CPU98DX224S
  • CPU core count2
  • CPU nominal frequency800 MHz
  • Switch chip model98DX224S
  • Dimensions304 x 212 x 71 mm
  • RouterOS license5
  • Operating SystemRouterOS / SwitchOS
  • Size of RAM256 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs16 (DC jack, PoE-IN)
  • DC jack input Voltage18-57 V
  • Max power consumption29 W
  • Max power consumption without attachments10 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-57 V (recommended 36-57V)

PoE-out

  • PoE-out portsEther15
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit0.75 A
  • High voltage PoE-Out current limit0.5 A
  • Max total out (A)0.75 A

Ethernet

  • 10/100 Ethernet ports16

Fiber

  • SFP ports2

Other

  • CPU temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP54

Included partsHose clamp 2K-66 fastening setDC to Terminal block adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
