netPower 16P

netPower 16P

$393.85 CAD
netPower 16P

netPower 16P

CRS318-16P-2S+OUT
$393.85 CAD
Shipping calculated at checkout.
Out of stock

An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere!

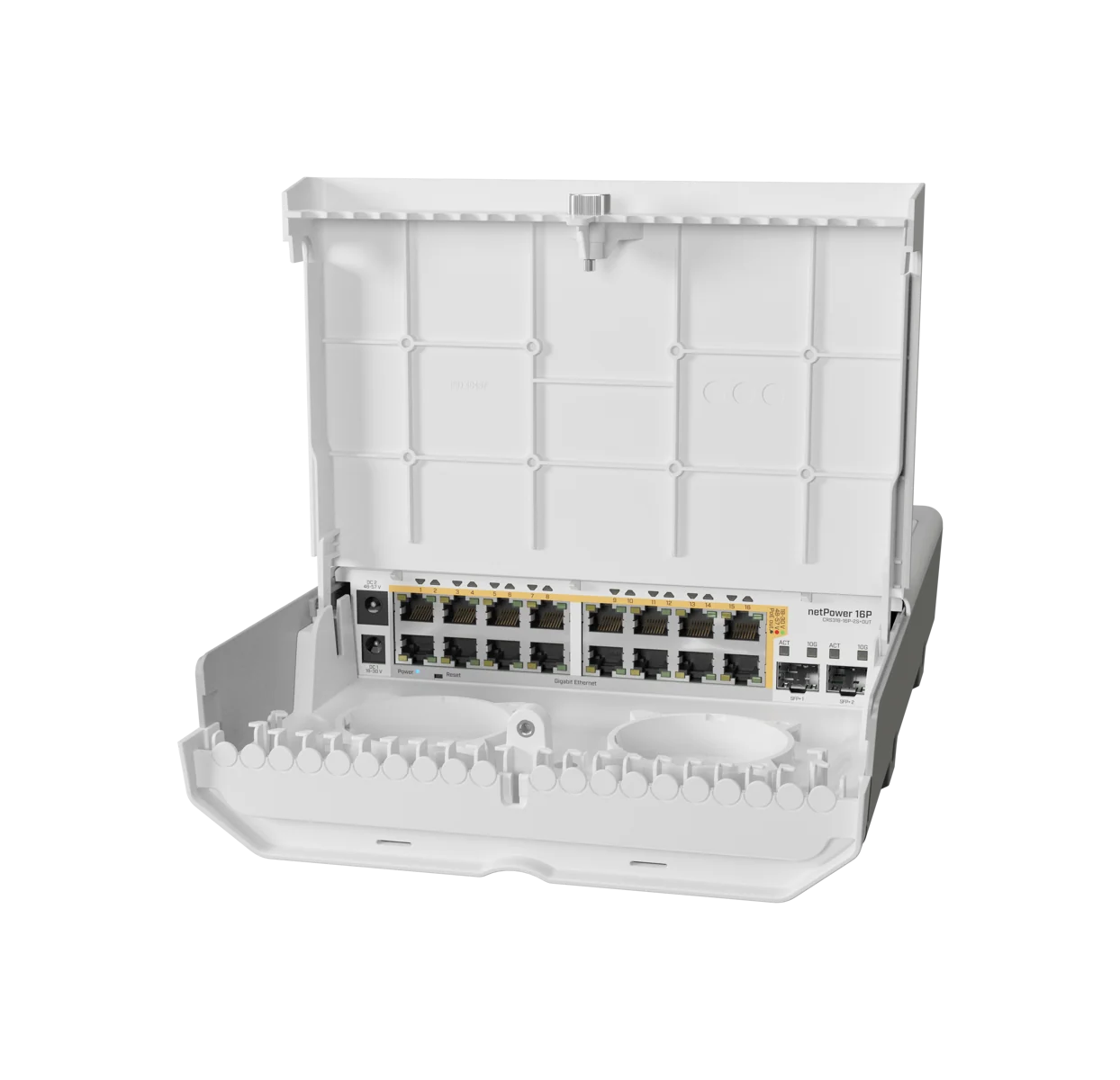

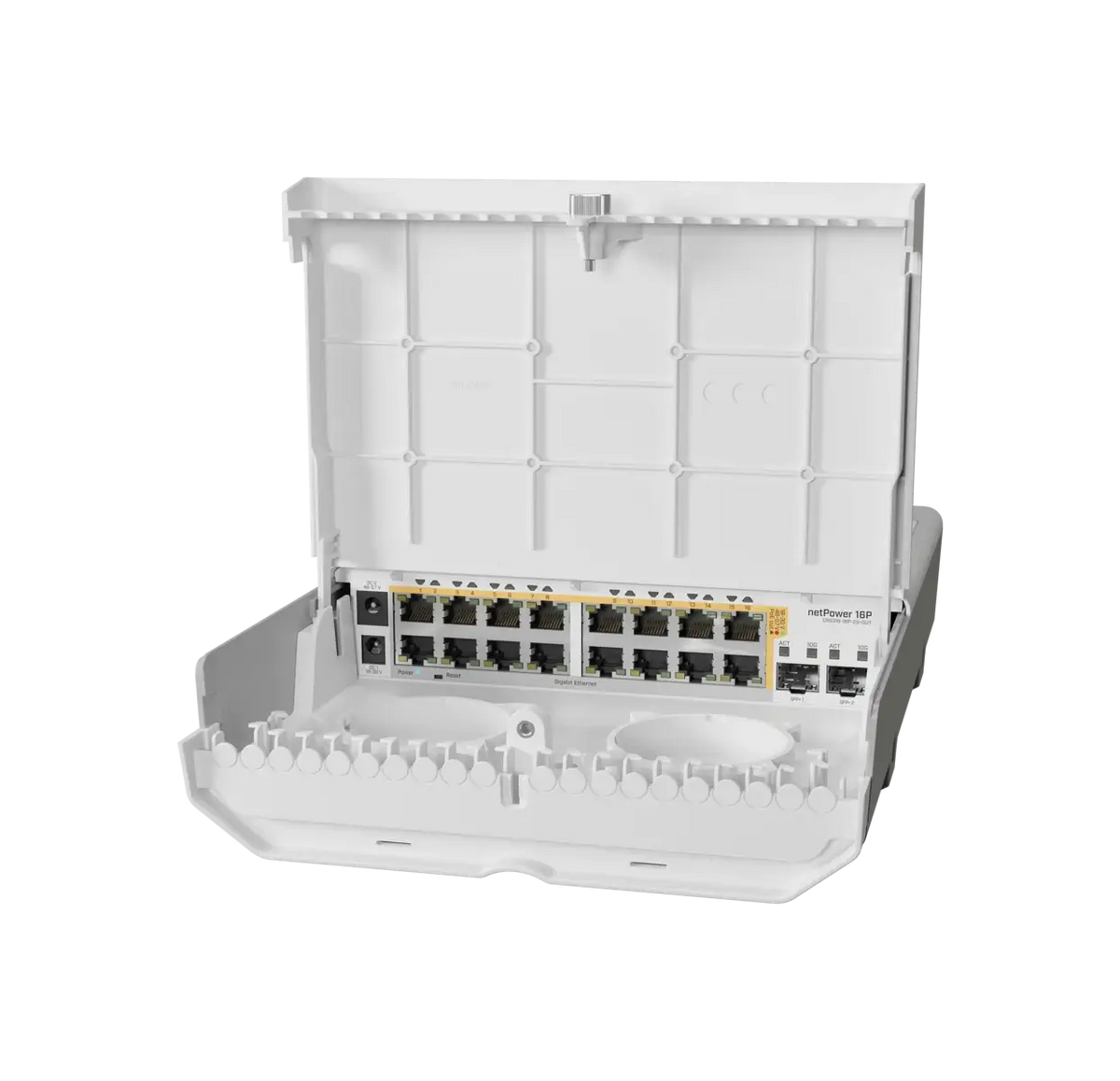

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

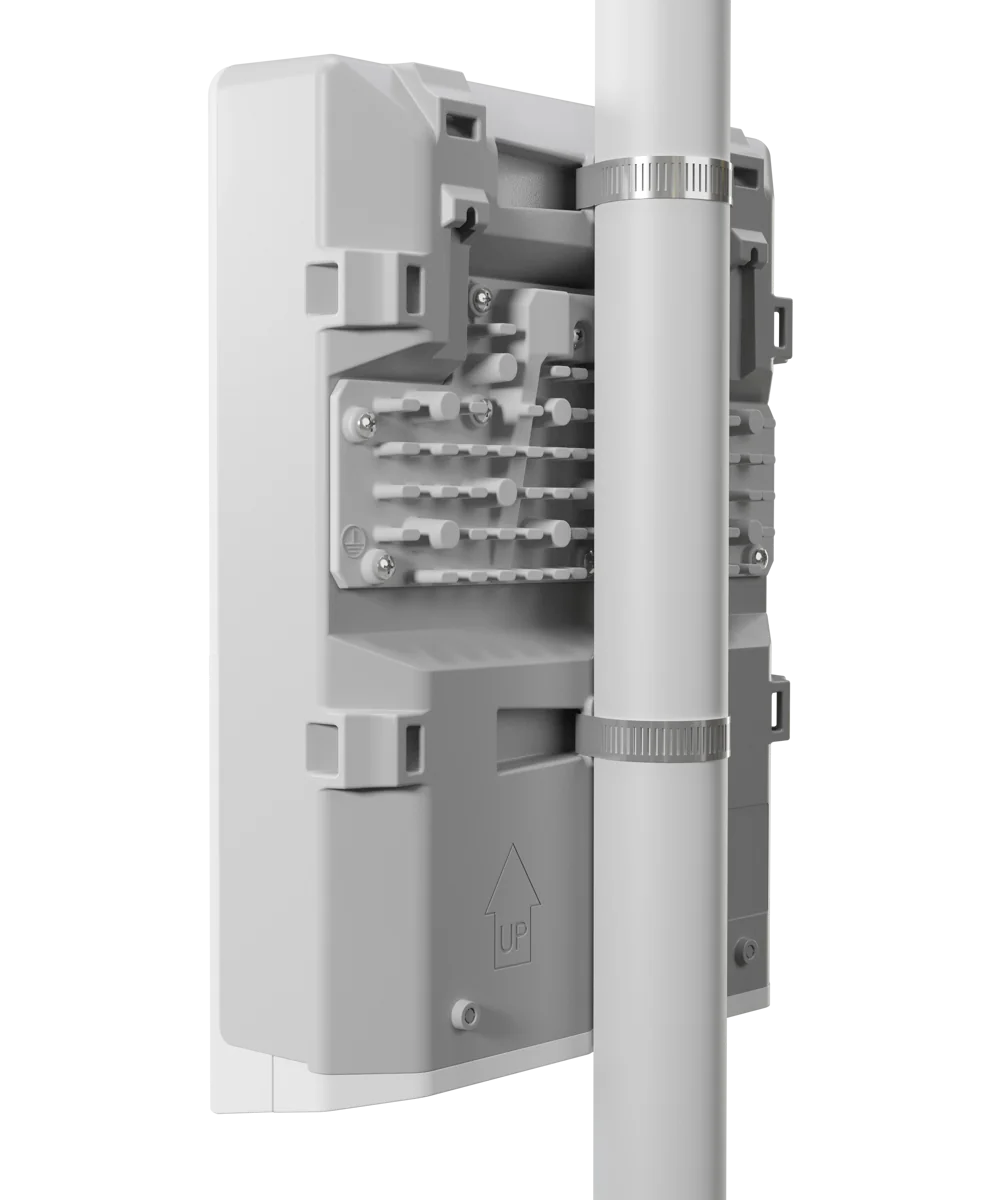

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
netPower 16P
  • netPower 16P
  • netPower 16P
  • netPower 16P

Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

*Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, MTP250-53V47-OD, MTP250-26V94-OD, 48POW and 48V2A96W

Specification

Specifications

  • Product codeCRS318-16P-2S+OUT
  • Suggested price$279.00
  • ArchitectureARM 32bit
  • CPU98DX226S
  • CPU core count2
  • CPU nominal frequency800 MHz
  • Switch chip model98DX226S
  • Dimensions303 x 212 x 78 mm
  • RouterOS license5
  • Operating SystemRouterOS / SwitchOS
  • Size of RAM256 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack)
  • DC jack input Voltage18-30 V / 48-57 V
  • Max power consumption316 W
  • Max power consumption without attachments16 W
  • Cooling typePassive

PoE-out

  • PoE-out portsEther1-Ether16
  • PoE out802.3af/at
  • Low voltage PoE-Out current limit1.1 A
  • High voltage PoE-Out current limit0.6 A
  • Max total out (A)2.8A (18V-30V) & 1.4A (48V-57V) x2

Ethernet

  • 10/100/1000 Ethernet ports16
  • Number of 1G Ethernet ports with PoE-out16

Fiber

  • SFP+ ports2

Other

  • CPU temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP54

Included partsHose clamp 2K-66 fastening setDC to Terminal block adapter x2NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
