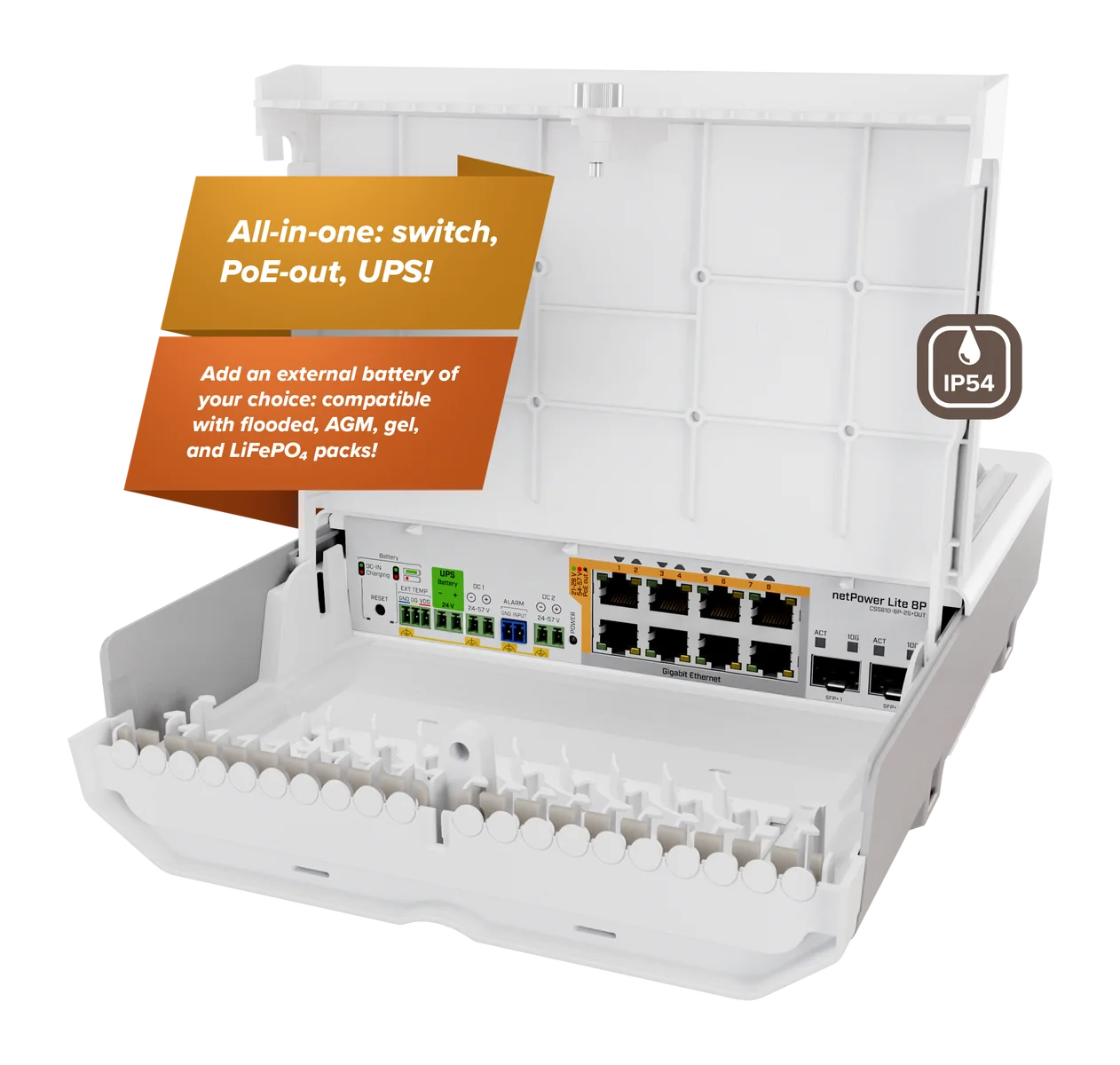

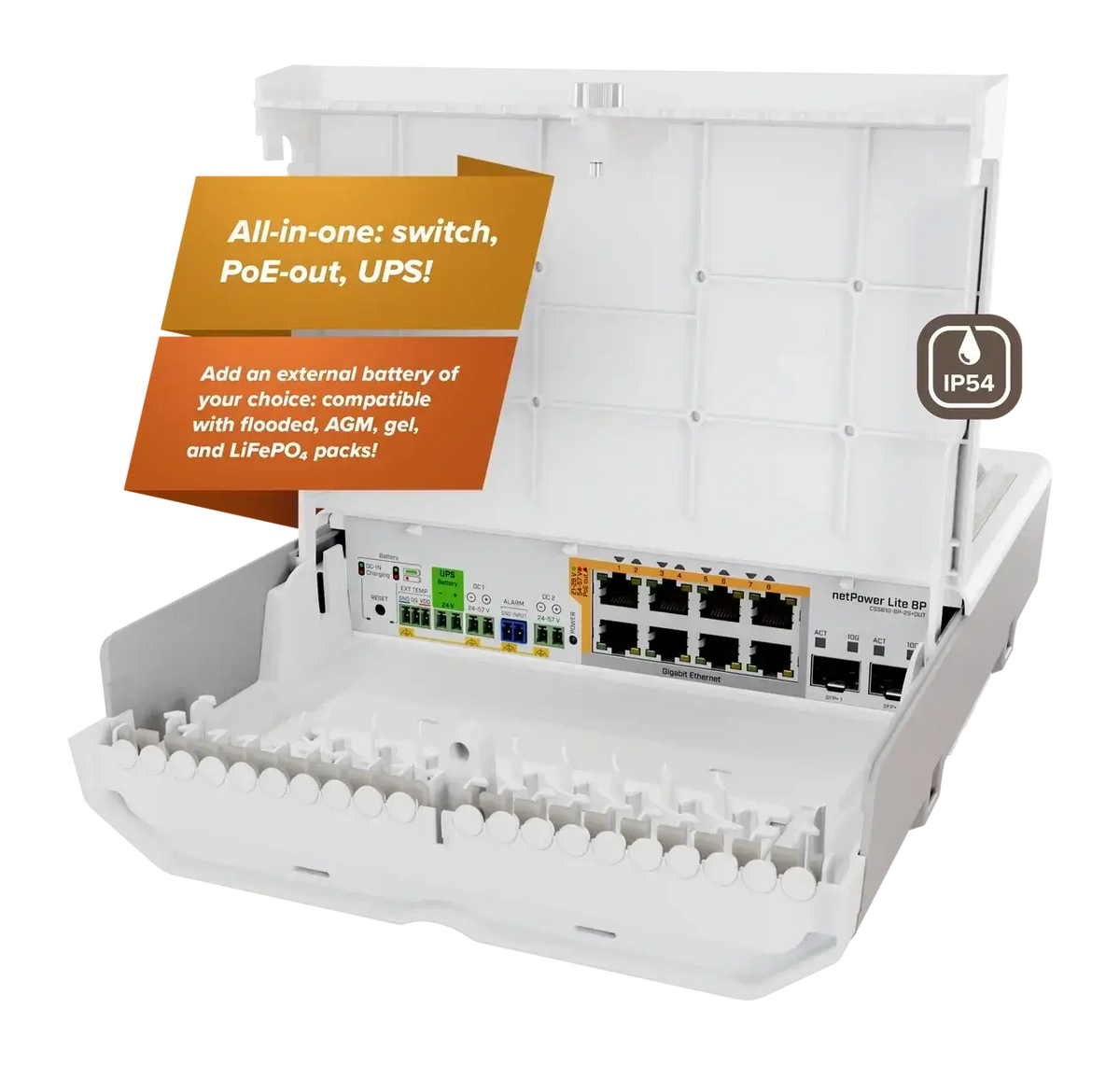

Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.

Power cuts shouldn’t mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery – and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
netPower Lite 8P
  • netPower Lite 8P
  • netPower Lite 8P
  • netPower Lite 8P
  • netPower Lite 8P
Built-in UPS support:
effective, reliable, gives you options

Connect a 24 V nominal battery – typically two 12 V units in series – and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.

The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.

Charging is handled intelligently through three stages:

A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.

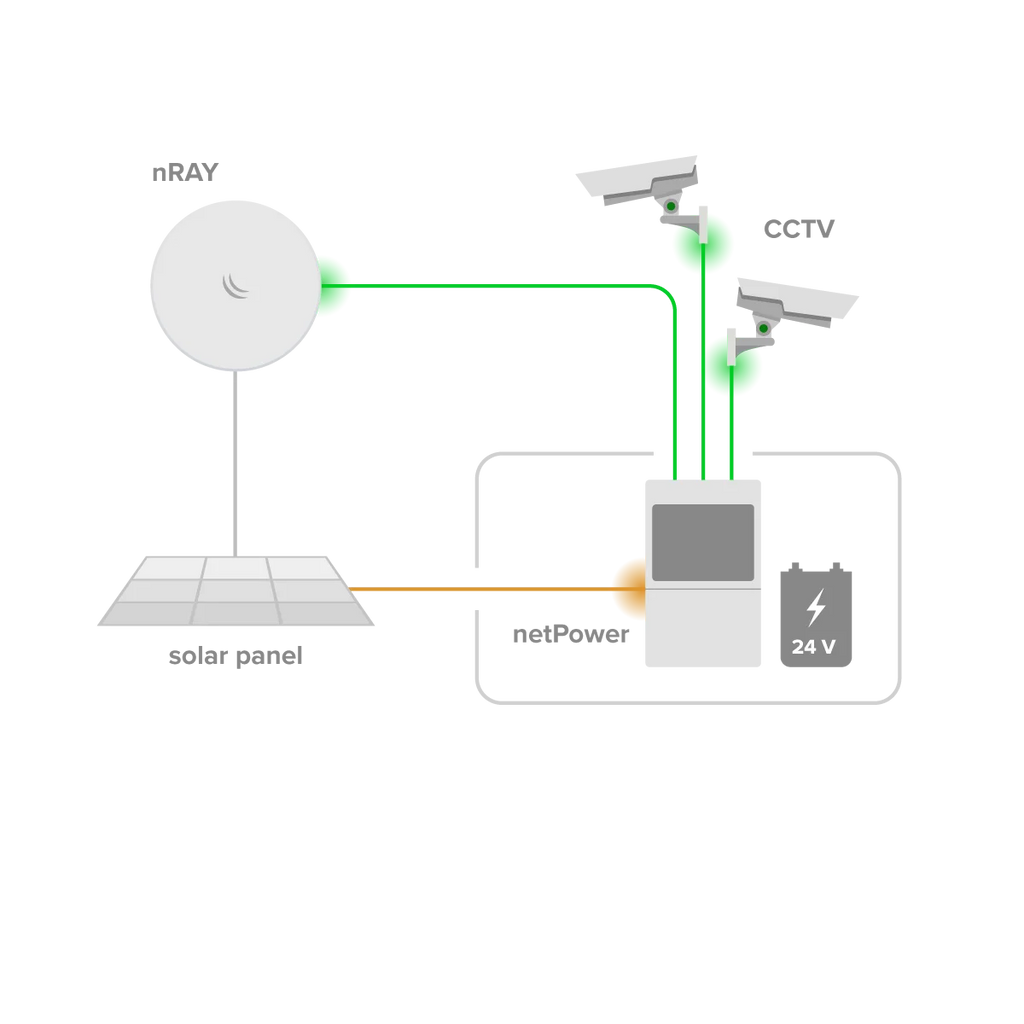

Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks

Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.

So if you value every watt and every second of uptime – the netPower Lite 8P is ready to keep you online…even when the lights go out.

Specification

Specifications

  • Product codeCSS610-8P-2S+OUT
  • Suggested price$199.00
  • Switch chip model88E6193
  • Operating SystemSwOS Lite
  • Storage size64 KB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs3 (2-pin terminal)
  • 2-pin terminal input Voltage24-57 V (Battery 22-30 V)
  • Max power consumption208 W
  • Max power consumption without attachments9 W
  • Cooling typePassive

PoE-out

  • PoE-out portsEther1-Ether8
  • PoE out802.3af/at
  • Low voltage PoE-Out current limit1.0 A
  • High voltage PoE-Out current limit0.64 A
  • Total output power120

Ethernet

  • 10/100/1000 Ethernet ports8
  • Number of 1G Ethernet ports with PoE-out8

Fiber

  • SFP+ ports2

Other

  • CPU temperature monitorYes
  • Current MonitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP54

Included partsHose clamp 2K-66 fastening setTemperature sensorNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
