RB4011iGS+5HacQ2HnD-IN

RB4011iGS+5HacQ2HnD-IN

$388.20 CAD
RB4011iGS+5HacQ2HnD-IN

RB4011iGS+5HacQ2HnD-IN

RB4011iGS+5HacQ2HnD-IN
$388.20 CAD
Shipping calculated at checkout.
Out of stock

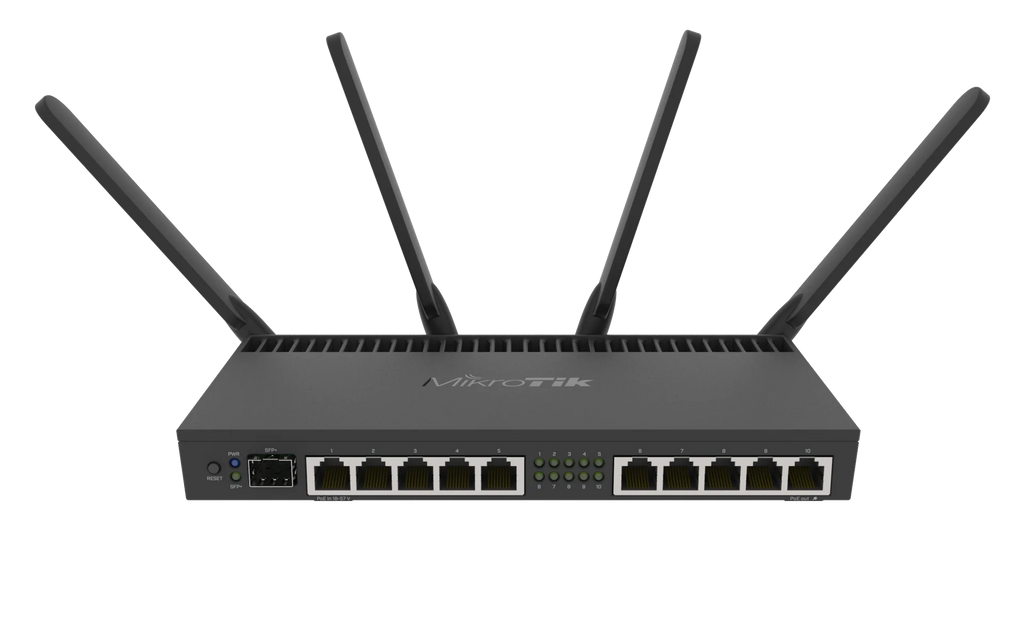

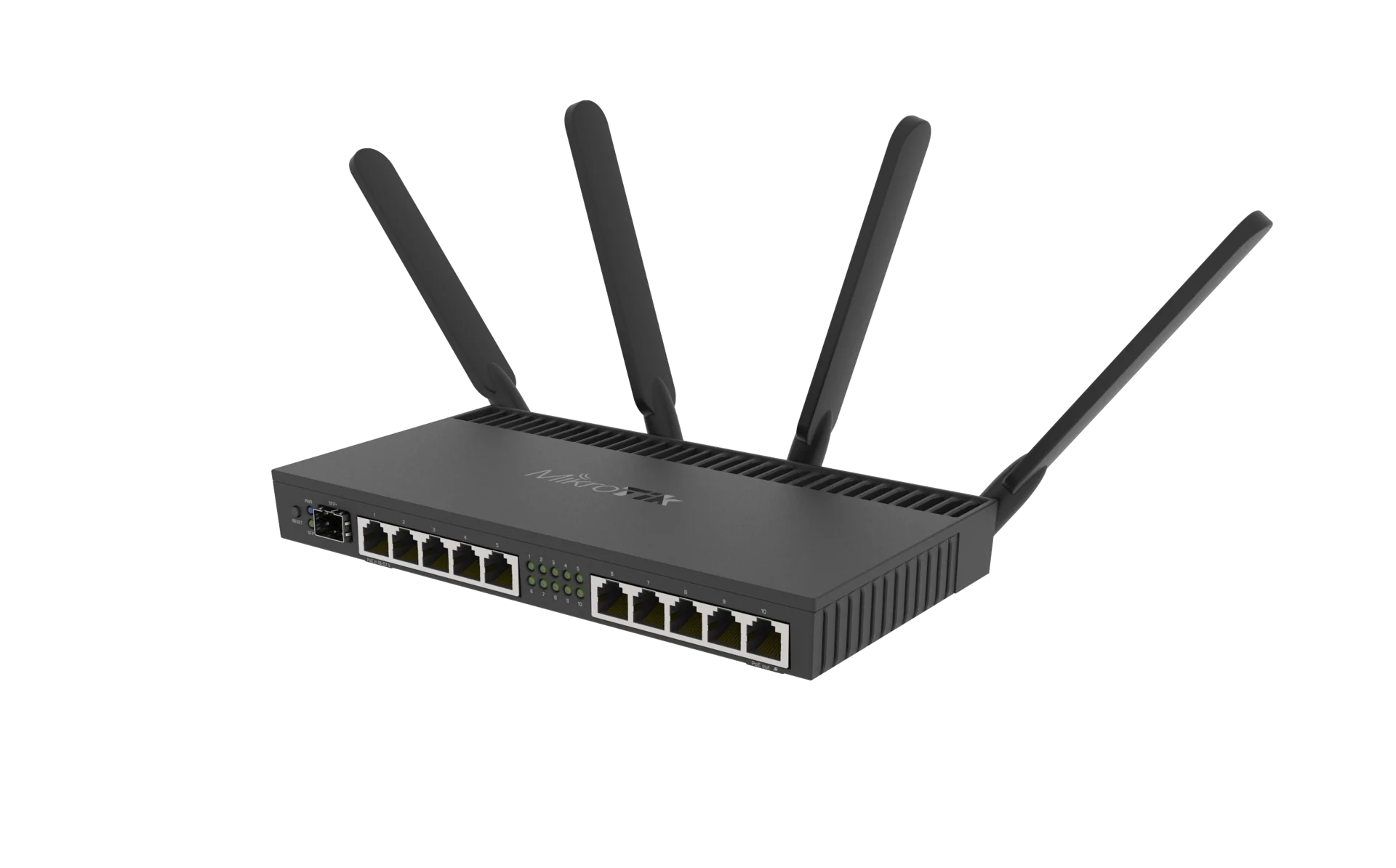

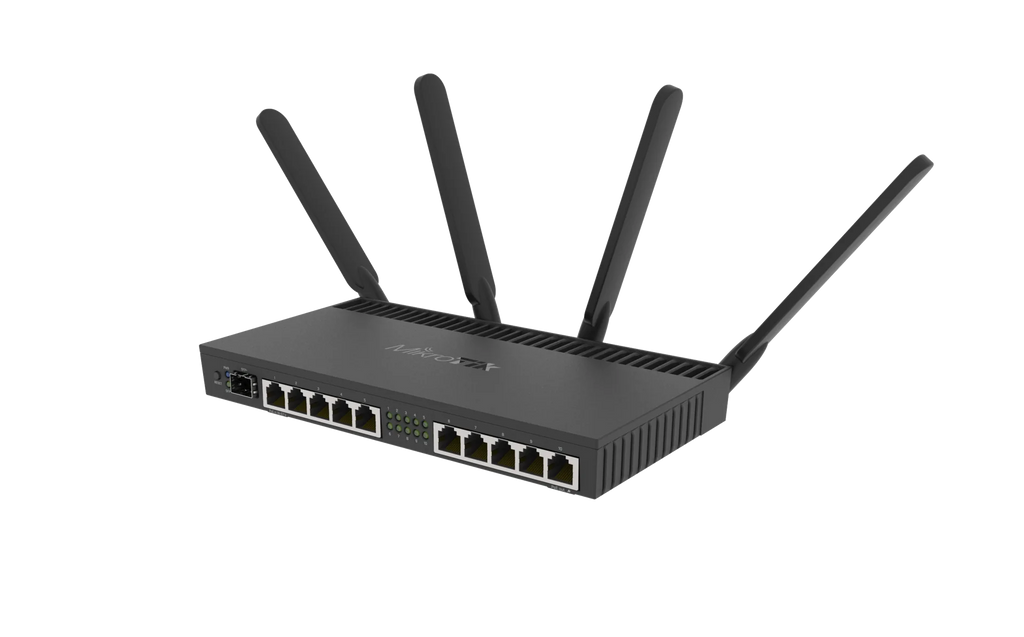

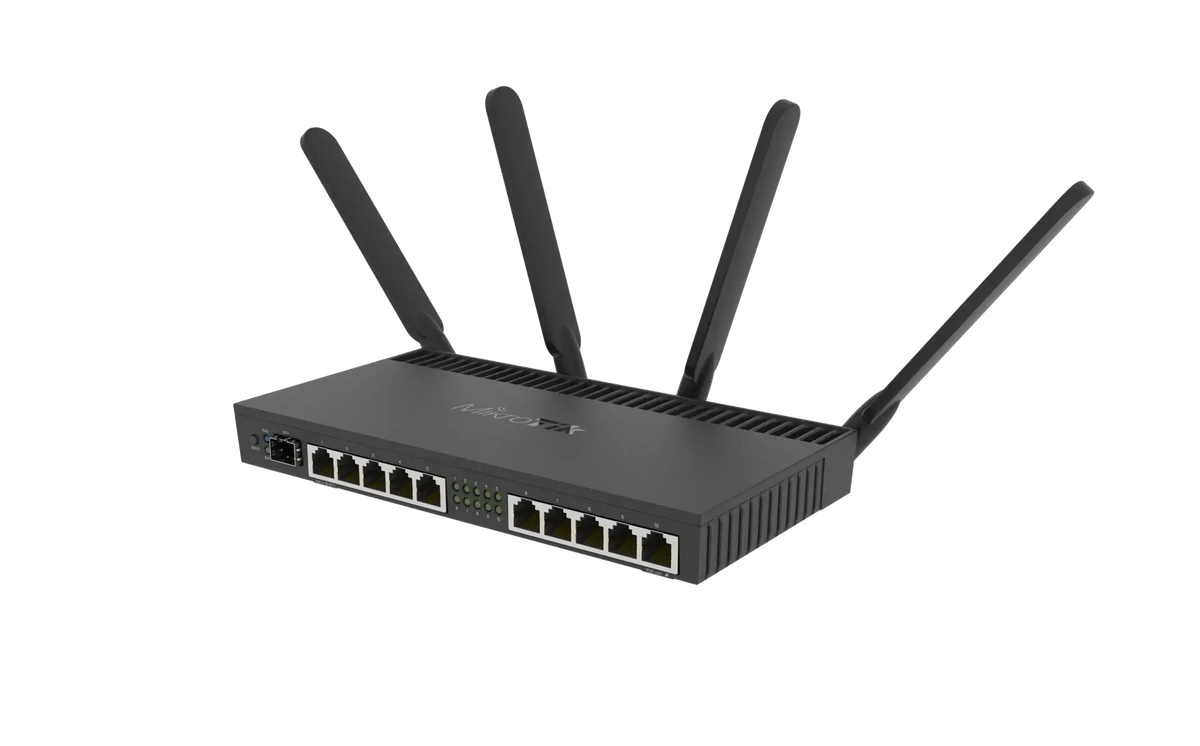

Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case.

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
RB4011iGS+5HacQ2HnD-IN
  • RB4011iGS+5HacQ2HnD-IN
  • RB4011iGS+5HacQ2HnD-IN
  • RB4011iGS+5HacQ2HnD-IN
  • RB4011iGS+5HacQ2HnD-IN

We have two versions available.

RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

  • Product codeRB4011iGS+5HacQ2HnD-IN
  • Suggested price$275.00
  • ArchitectureARM 32bit
  • CPUAL21400
  • CPU core count4
  • CPU nominal frequencyauto (533 - 1900) MHz
  • CPU Threads count4
  • Switch chip modelRTL8367SB
  • Dimensions228 x 120 x 30 mm
  • RouterOS license5
  • Operating SystemRouterOS v7
  • Size of RAM1 GB
  • Storage size512 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 45°C

Wireless capabilities

  • Wireless 5 GHz Max data rate1733 Mbit/s
  • Wireless 5 GHz Number of chains4
  • Wireless 5 GHz standards802.11a/n/ac
  • Antenna gain dBi for 5 GHz3
  • Wireless 5 GHz chip modelQCA9984
  • Wireless 5 GHz generationWi-Fi 5
  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz3
  • Wireless 2.4 GHz chip modelR11e-2HnD
  • Wireless 2.4 GHz generationWi-Fi 4
  • WiFi speedAC2000

Ethernet

  • 10/100/1000 Ethernet ports10

Fiber

  • SFP+ ports1

Peripherals

  • MiniPCI-e slots1
  • Serial console portRJ45

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-57 V
  • Max power consumption44 W
  • Max power consumption without attachments23 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-57 V

PoE-out

  • PoE-out portsEther10
  • PoE outPassive PoE up to 57V
  • Low voltage PoE-Out current limit600 mA
  • High voltage PoE-Out current limit420 mA
  • Max total out (A)600 mA

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP20

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes

Included parts24V 2.5A power adapterIEC cordK-59 kitNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
