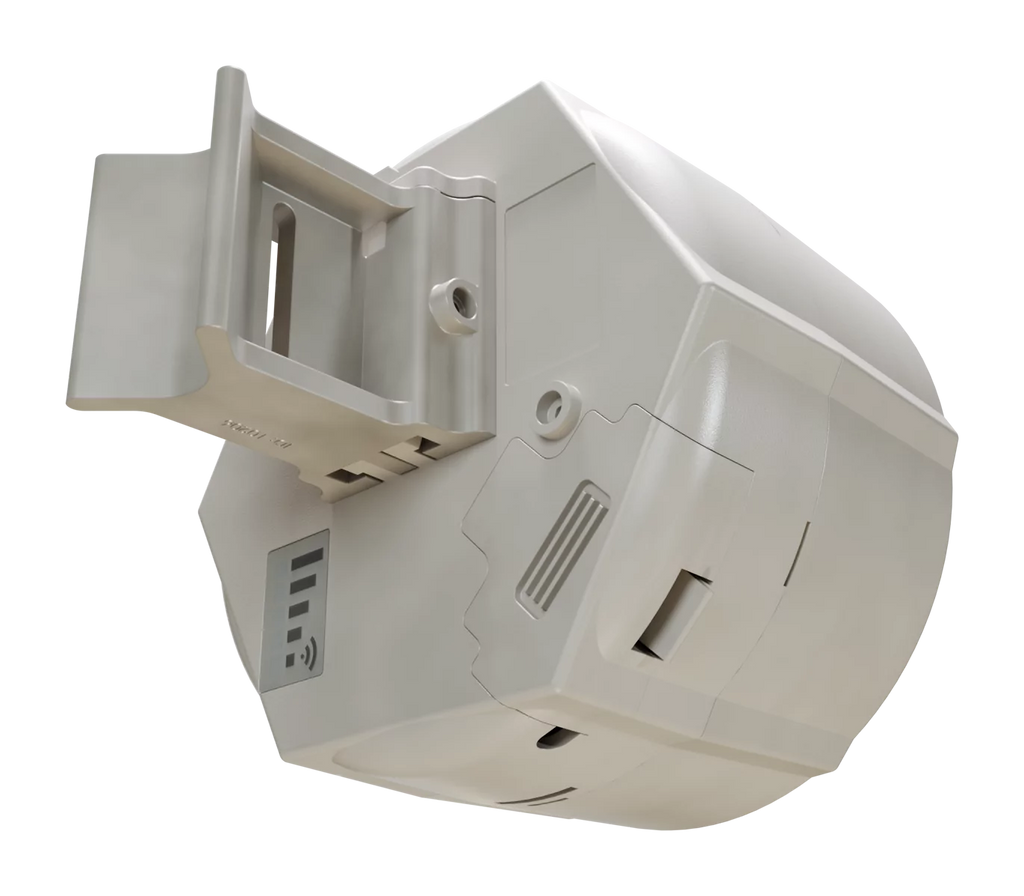

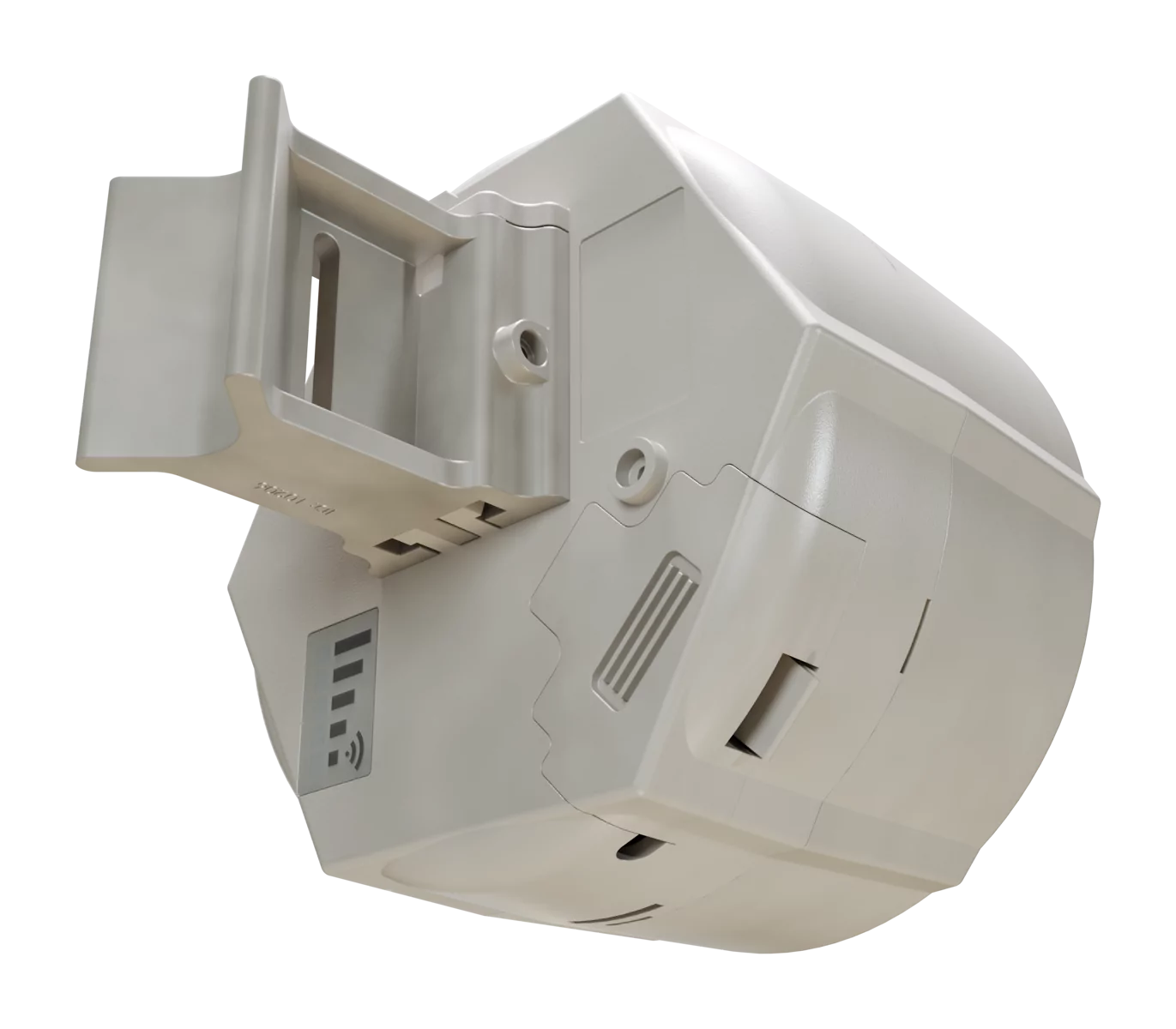

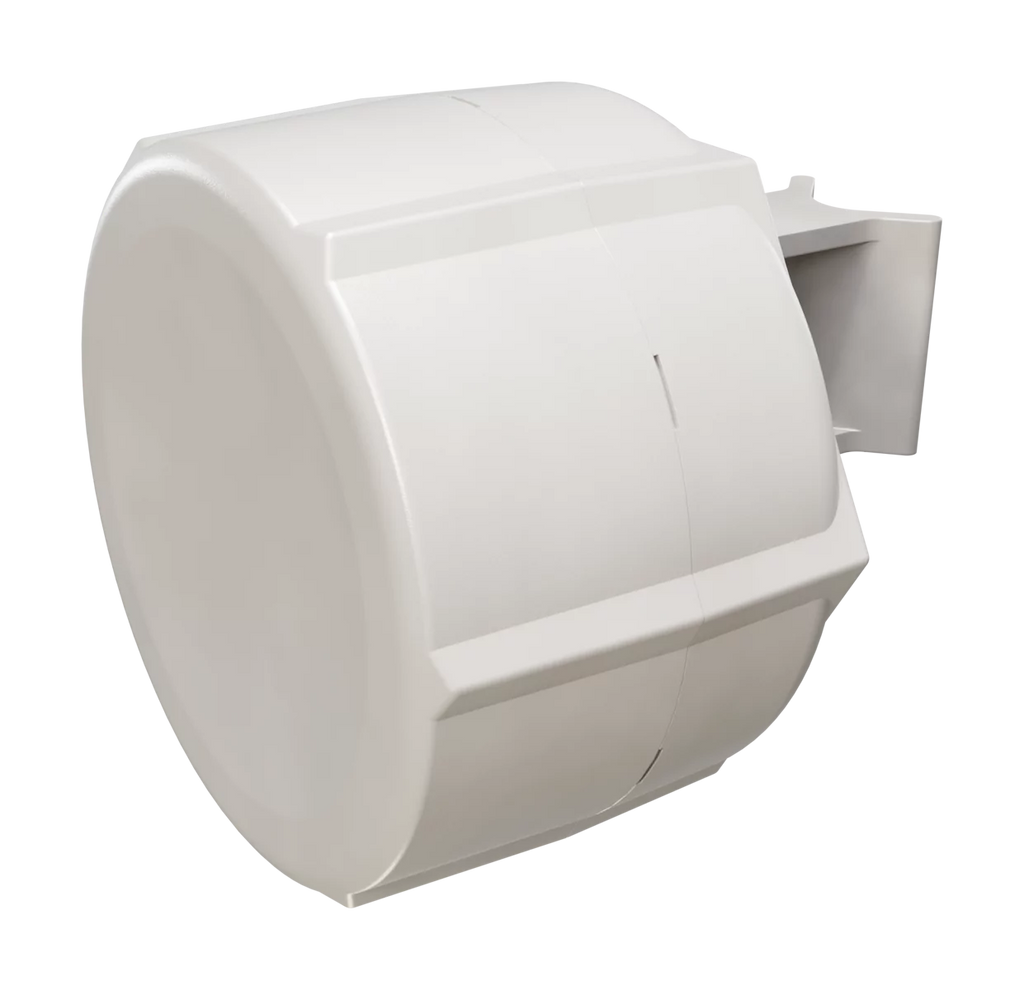

SXT LTE7 kit

SXT LTE7 kit

$147.15 CAD
SXT LTE7 kit

SXT LTE7 kit

SXTR&R11e-LTE7
$147.15 CAD
Shipping calculated at checkout.
Out of stock

A rugged outdoor LTE CPE with the new R11e-LTE7 modem inside. Delivers stable, fast Internet where phones fail – ideal for farms, off-grid connections, and countryside estates. Now with better uplink, PoE in/out, and a wide 12–57 V power range. Mount it, connect, and stay online.

The SXT LTE7 kit is a rugged, outdoor LTE access point designed for remote and hard-to-reach locations that are still within cellular network coverage. It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide – but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.

Mount it outside, point it at the nearest tower, and always stay connected!

SXT has always been about reliable connectivity with minimal visual impact:

• Weatherproof/Snow-resistant

• Unobtrusive, durable and discreet

• Designed to attract less unwanted attention
SXT LTE7 kit
  • SXT LTE7 kit
  • SXT LTE7 kit

The SXT LTE7 kit keeps everything that made the platform popular – and upgrades what matters most: mobile performance. With LTE Category 7, you get faster uploads, better responsiveness, and stronger connections without changing your installation or setup.

We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when itcomes to mobile network coverage. Also, the Category 7 LTE modem enables carrier aggregation,allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there area lot of mobile users in the area. It offers better responsiveness in a crowded environment. Andhigher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internetspeed doubling in rural areas after switching to carrier aggregation, so there is no need to wait forcable network expansions.

The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!

Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.

Specification

Specifications

  • Product codeSXTR&R11e-LTE7
  • Suggested price$109.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip modelQCA9531
  • RouterOS license3
  • Operating SystemRouterOS v7
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 60°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption24 W
  • Max power consumption without attachments7 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage12-57 V

PoE-out

  • PoE-out portsEther2
  • PoE outPassive PoE up to 57V
  • Low voltage PoE-Out current limit600 mA
  • High voltage PoE-Out current limit400 mA
  • Max total out (A)600 mA

Mobile

  • 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
  • 3G bands1 (2100 MHz)
    3 (1800 MHz)
    5 (850 MHz)
    8 (900 MHz)
  • LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
  • MIMO DL2x2
  • MIMO UL1x1
  • LTE FDD bands1 (2100 MHz)
    3 (1800 MHz)
    5 (850 MHz)
    7 (2600 MHz)
    8 (900 MHz)
    20 (800 MHz)
    28 (700 MHz)
    32 (1500 MHz)
  • LTE TDD bands38 (2600 MHz)
    40 (2300 MHz)
    41 (2500 MHz)
  • TAC35312597

Ethernet

  • 10/100 Ethernet ports2

Peripherals

  • Number of SIM slots2 Modem (Micro SIM)
  • MiniPCI-e slots1

Other

  • Mode buttonYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP54
